Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Remove the right front diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL in Body Front End.
  3. Disconnect the positive battery cable.

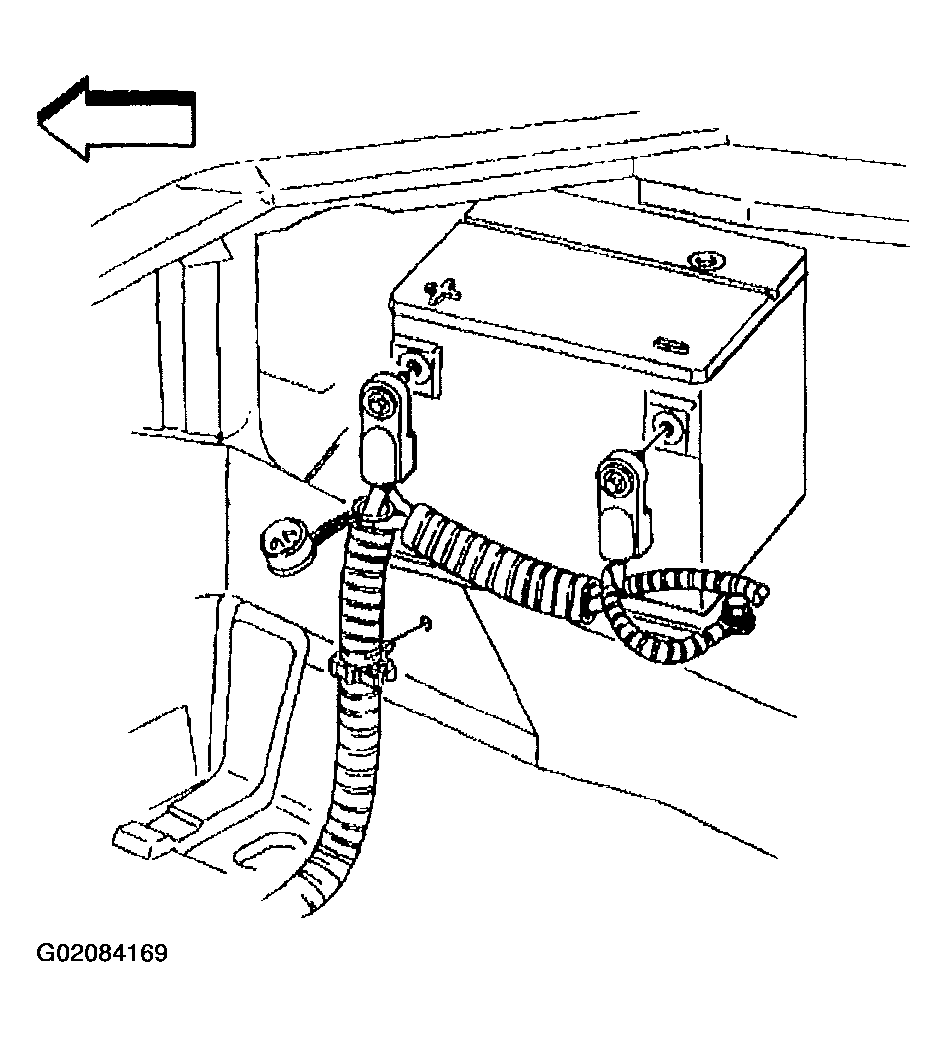

    Fig 1: Disconnecting Positive Battery Cable
    G02084169Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer bolt (1) that holds the battery in place.
  5. Remove the battery retainer (2).

    Important:  Do not tip the battery more than 40 degrees during removal.

  6. Remove the battery (3).

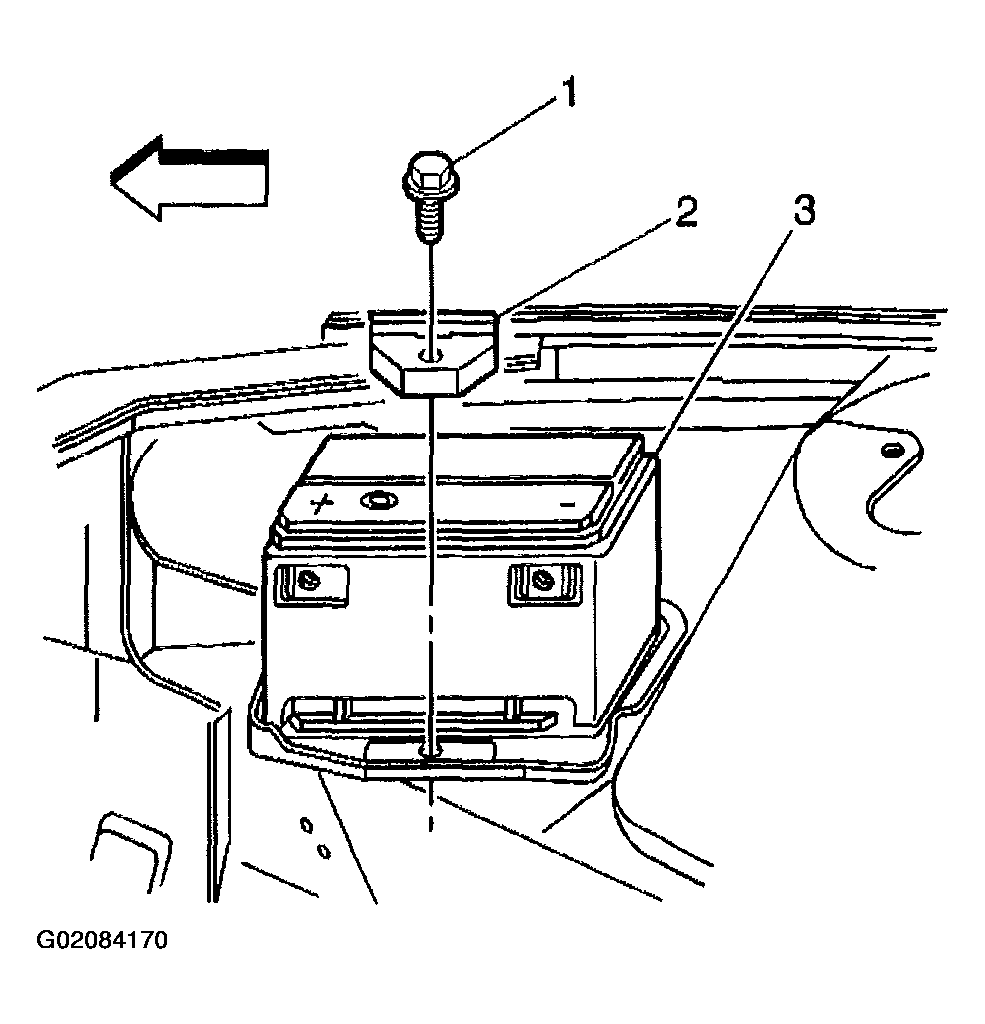

    Fig 2: Removing Retainer Bolt
    G02084170Courtesy of GENERAL MOTORS CORP.
  7. Remove the insulator from the battery.

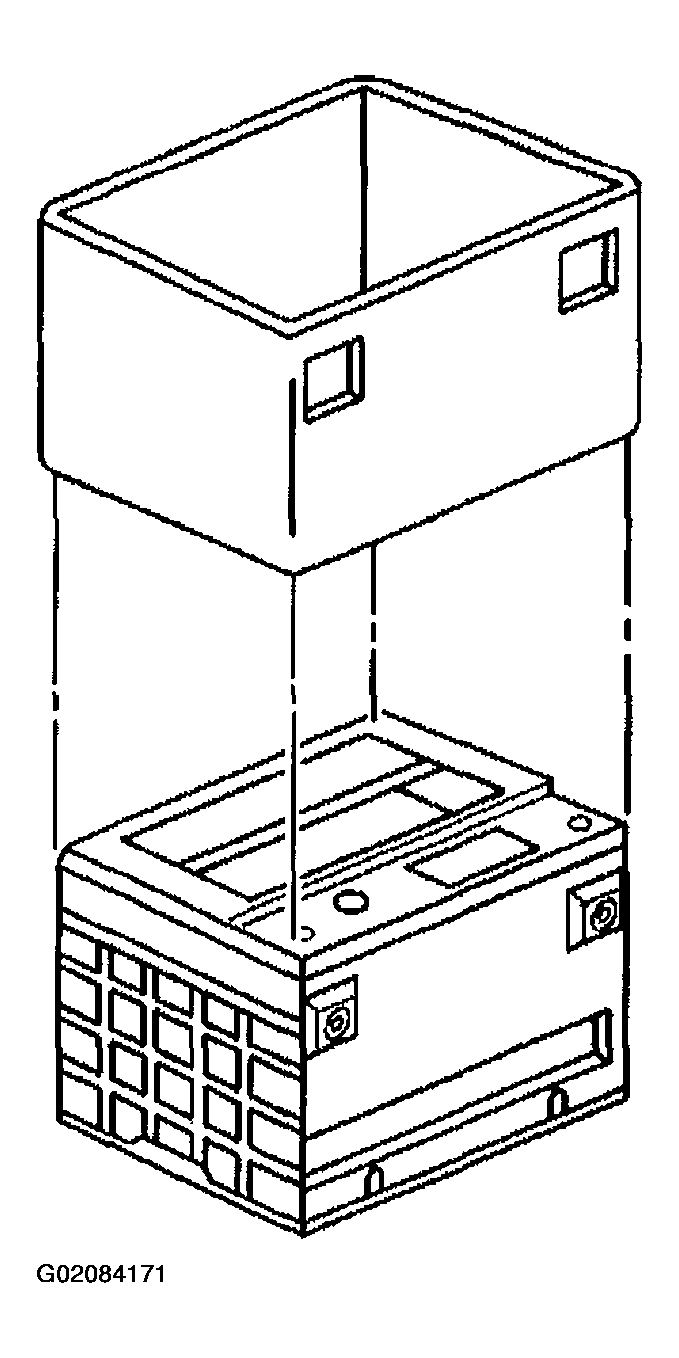

    Fig 3: Removing Insulator From Battery
    G02084171Courtesy of GENERAL MOTORS CORP.
