Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

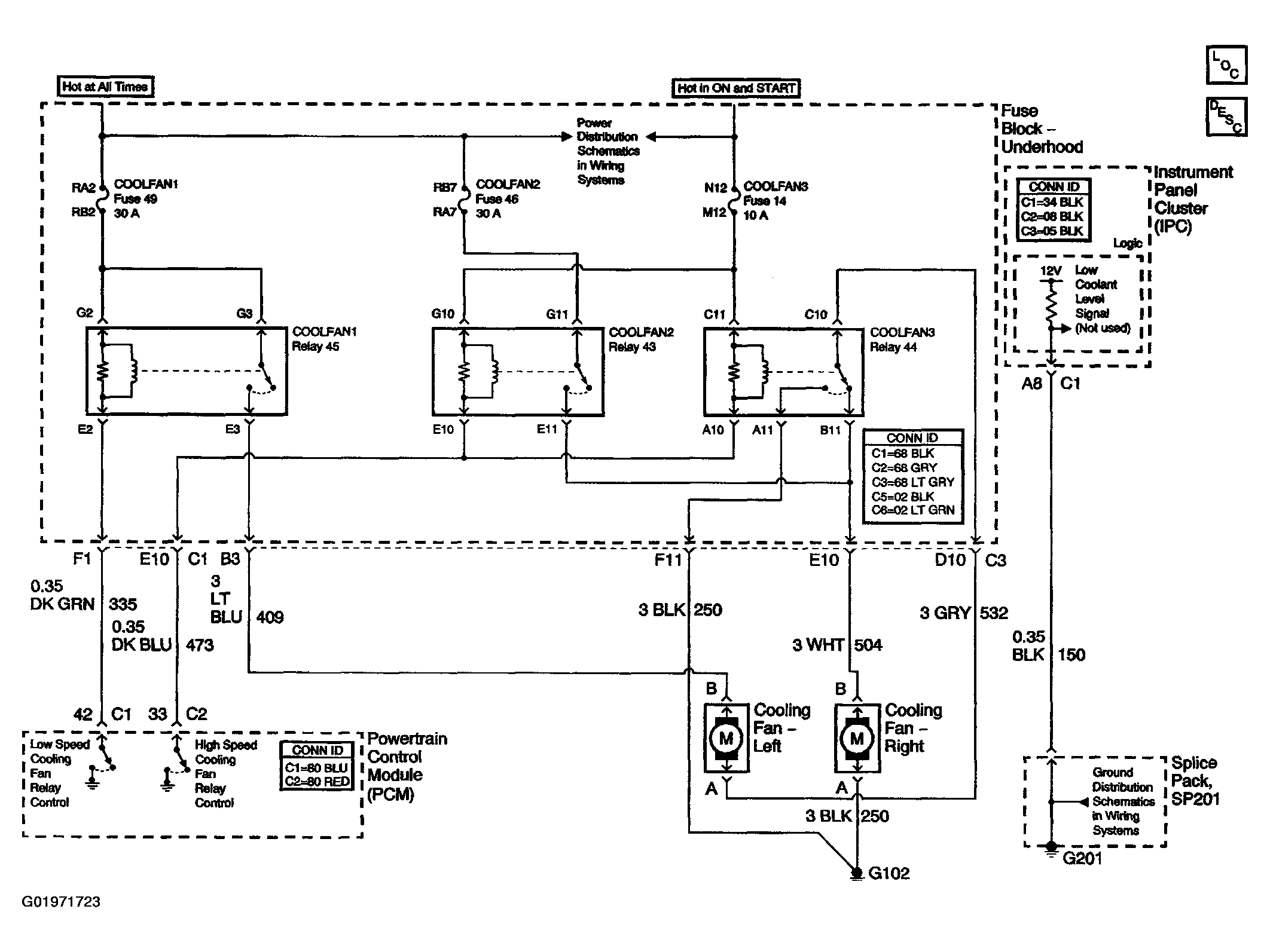

Fig 1: Engine Cooling Schematics
G01971723Courtesy of GENERAL MOTORS CORP.
