Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Install protective coverings over the fenders.
  3. Remove the right and the left air inlet grille panels. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  4. Disconnect the electrical connector from the under hood lamp, if equipped.
  5. Remove the windshield washer nozzles, Refer to WASHER NOZZLE REPLACEMENT -- FRONT in Wiper/Washer Systems.
  6. Remove the hood hinge from the attaching bolts and the nuts.
  7. With an assistant, remove the hood from the vehicle.

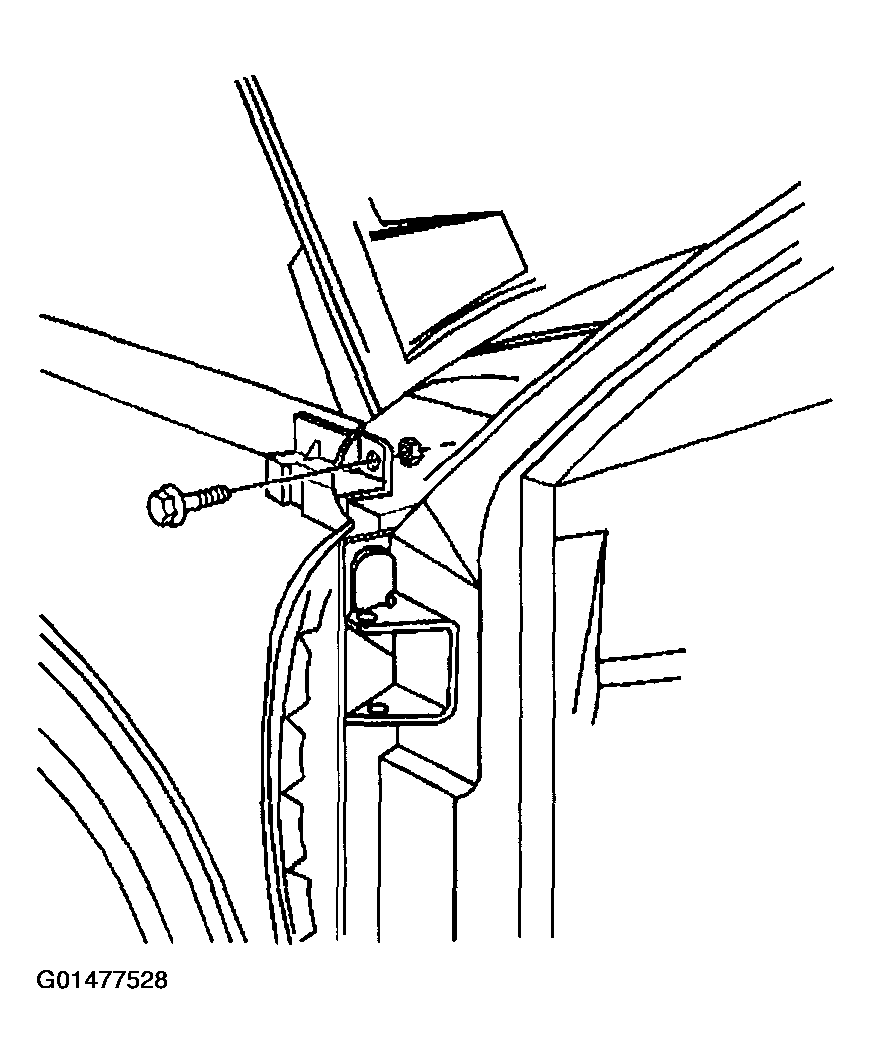

    Fig 1: Removing Hood Hinge From Attaching Bolts & Nuts
    G01477528Courtesy of GENERAL MOTORS CORP.
