Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to push in the hood mounted end of the spring in order to release the retainers.
  2. Remove the spring from the hood.

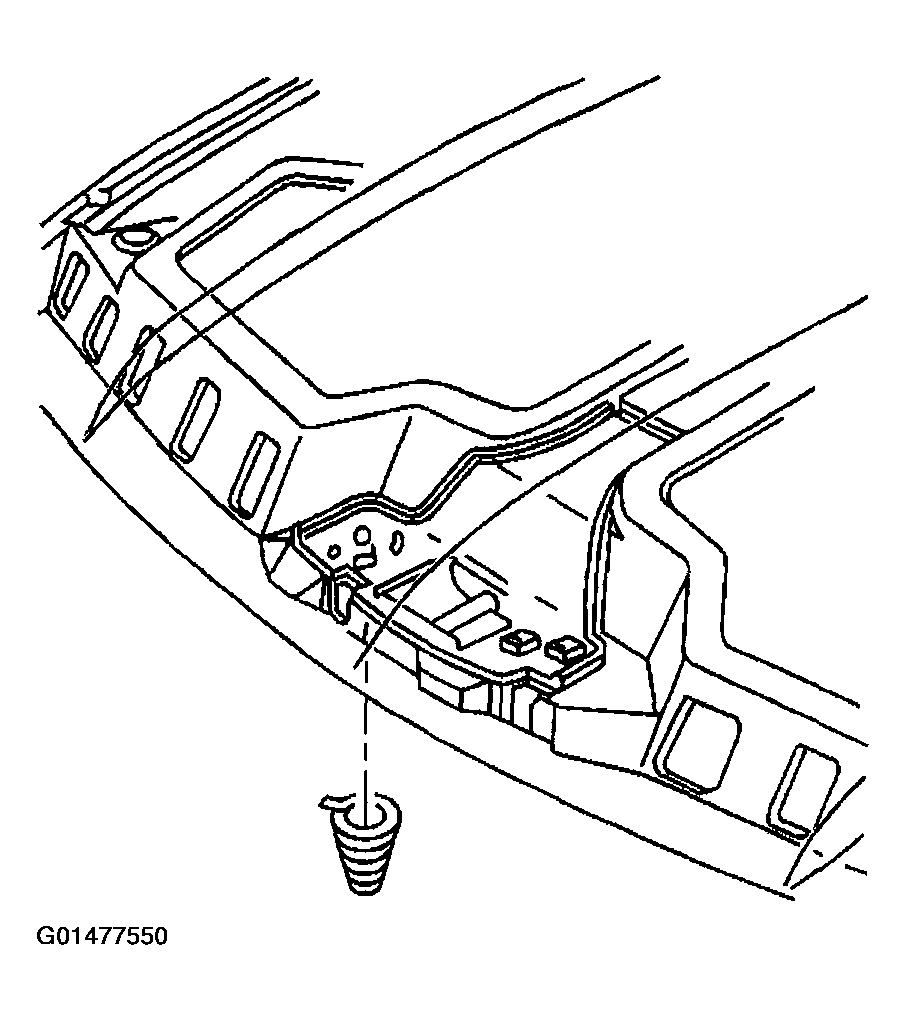

    Fig 1: Removing Spring From Hood
    G01477550Courtesy of GENERAL MOTORS CORP.
