Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the spring to the hood.
  2. Insert the spring into the hood retainers.

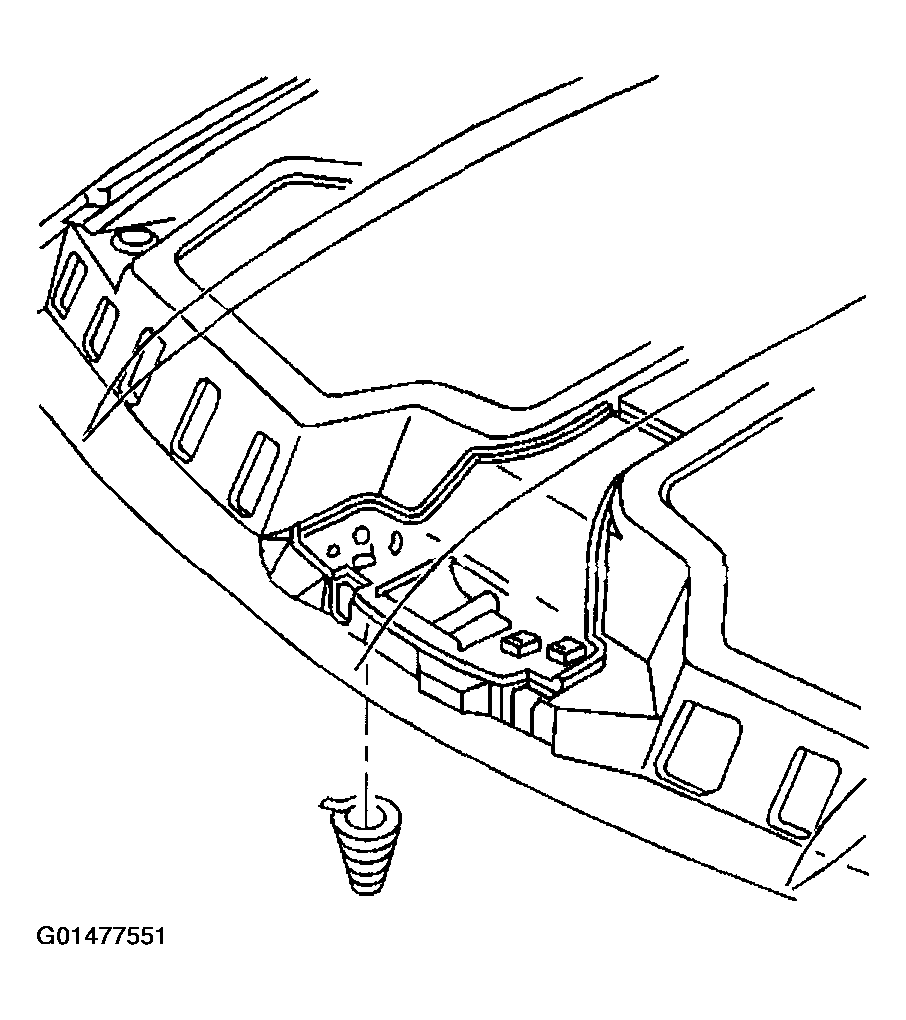

    Fig 1: Inserting Spring Into Hood Retainers
    G01477551Courtesy of GENERAL MOTORS CORP.
