Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the grille. Refer to GRILLE REPLACEMENT (GMC) or GRILLE REPLACEMENT (CHEVROLET) in Exterior Trim.
  3. Remove the primary latch assembly. Refer to HOOD LATCH REPLACEMENT - PRIMARY .
  4. Remove the bolts that retain the primary hood latch support bracket to the radiator support.
  5. Remove the primary hood latch support from the vehicle.
    Fig 1: Removing Primary Hood Latch Support From Vehicle
    G01477538Courtesy of GENERAL MOTORS CORP.
  6. Mark the position of the nuts that retain the latch mounting bracket to the support bracket.
  7. Remove the primary latch mounting bracket from the support bracket bolts.

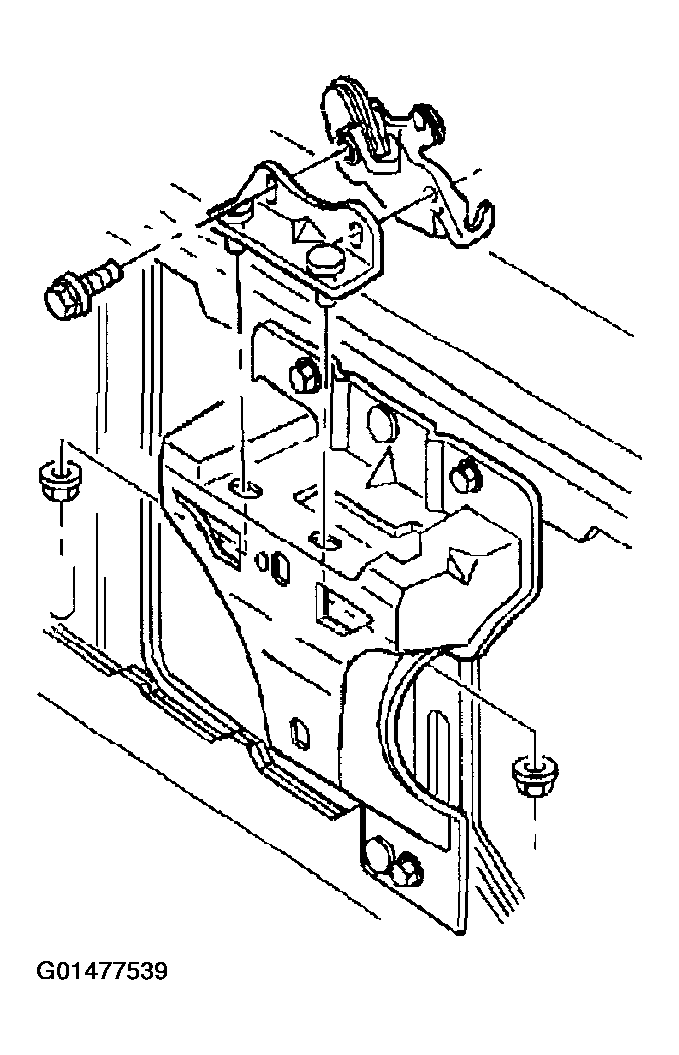

    Fig 2: Removing Primary Latch Mounting Bracket From Support Bracket Bolts
    G01477539Courtesy of GENERAL MOTORS CORP.
