Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood latch assembly to the vehicle.

    Guide the cable through the cowl panel underneath the instrument panel from the inside of the vehicle.

  2. Guide the cable along the left fender behind the antilock brake module, the underhood fuse block, and the windshield wiper/washer reservoir.
  3. Route the cable around the end of the radiator support.

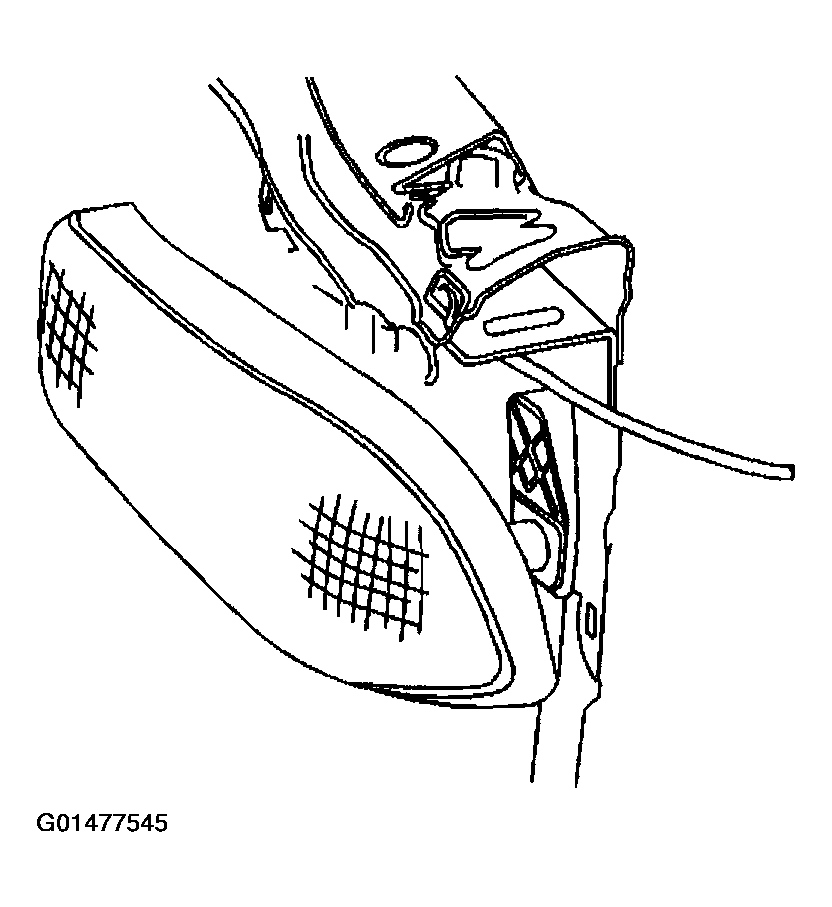

    Fig 1: Routing Cable Around End Of Radiator Support
    G01477545Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the hood release cable and the lever bolts to the cowl side panel.

    Tighten

    Tighten the hood release cable and the lever bolts to 9 N.m (80 lb in).

  5. Secure the release cable to the side of the cowl with adhesive tape.

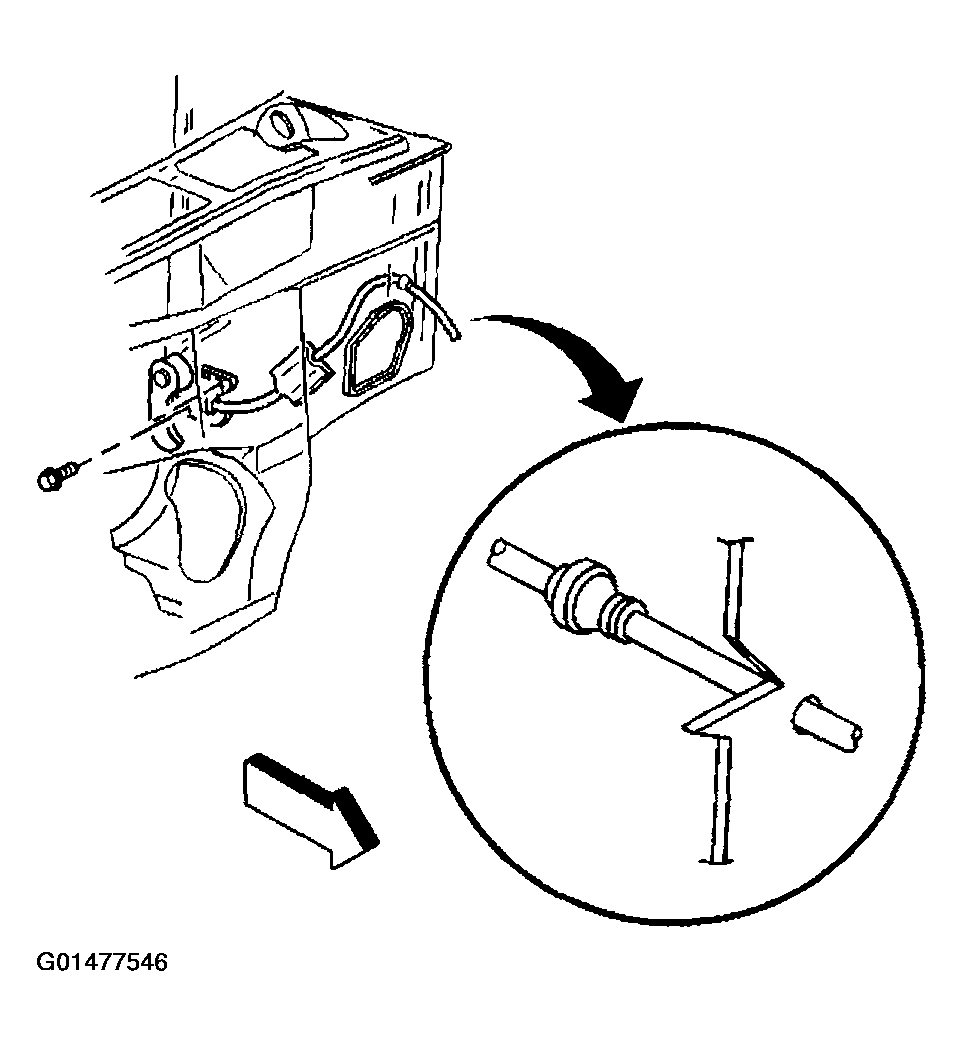

    Fig 2: Installing Hood Latch Cable Assembly To Vehicle
    G01477546Courtesy of GENERAL MOTORS CORP.
  6. Install the hood release cable to the retaining clips.

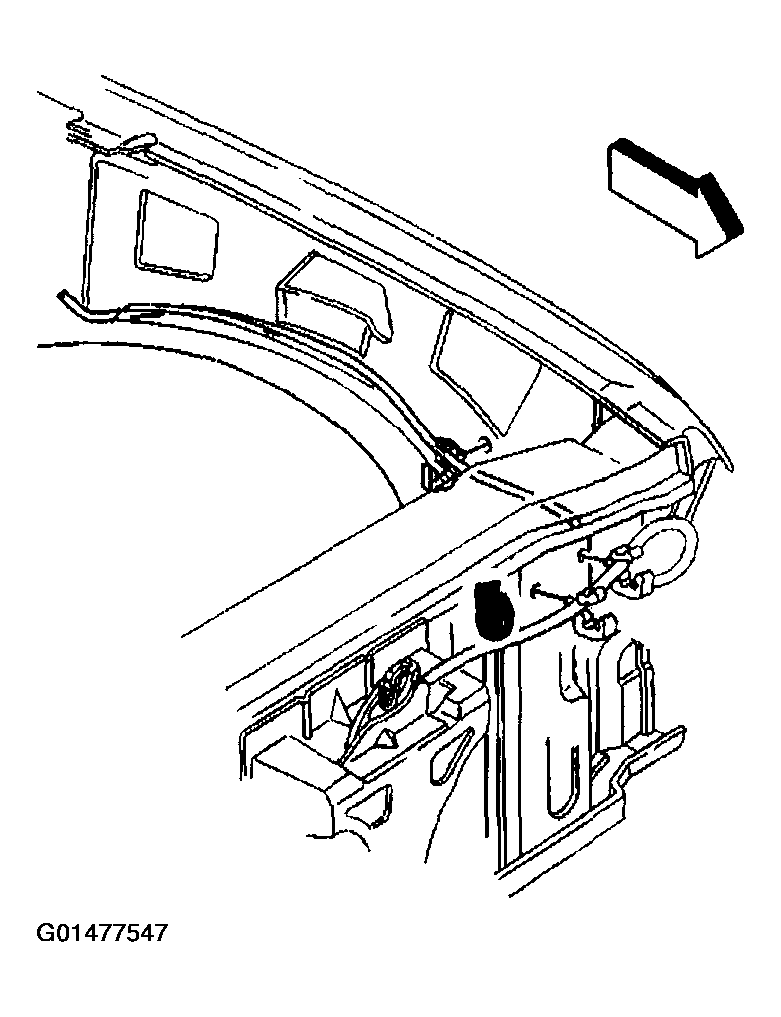

    Fig 3: Installing Hood Release Cable To Retaining Clips
    G01477547Courtesy of GENERAL MOTORS CORP.
  7. Install the hood release cable grommet.

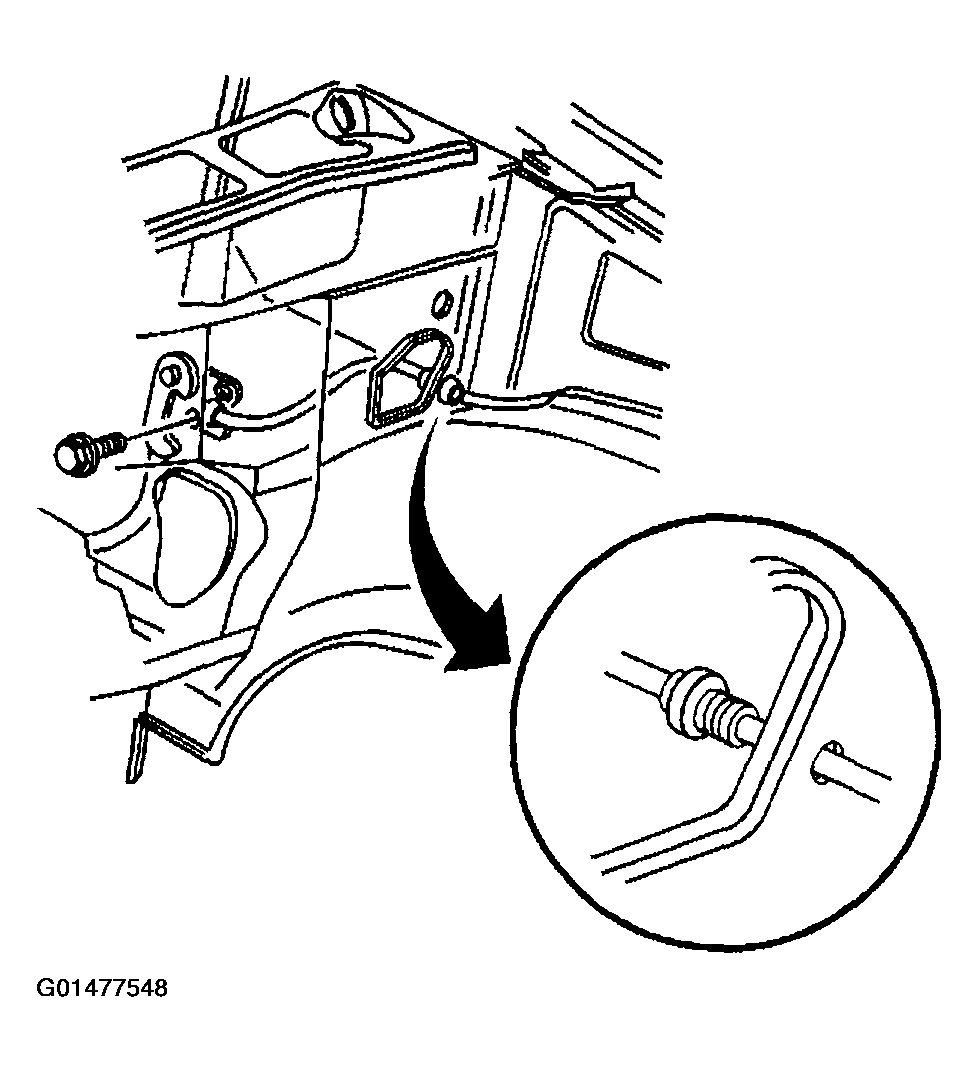

    Fig 4: Hood Release Cable Grommet
    G01477548Courtesy of GENERAL MOTORS CORP.
  8. Install the hood latch cable to the latch.
  9. Install the body hinge pillar trim panel. Refer to TRIM PANEL REPLACEMENT -- LEFT HINGE PILLAR in Interior Trim.
  10. Install the screws securing the underhood fuse block.
  11. Install the windshield wiper/washer reservoir. Refer to WASHER PUMP/RESERVOIR REPLACEMENT in Wipers/Washer Systems.
  12. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Engine Electrical.
  13. Inspect the hood latch release cable for proper operation.
  14. Close the hood.

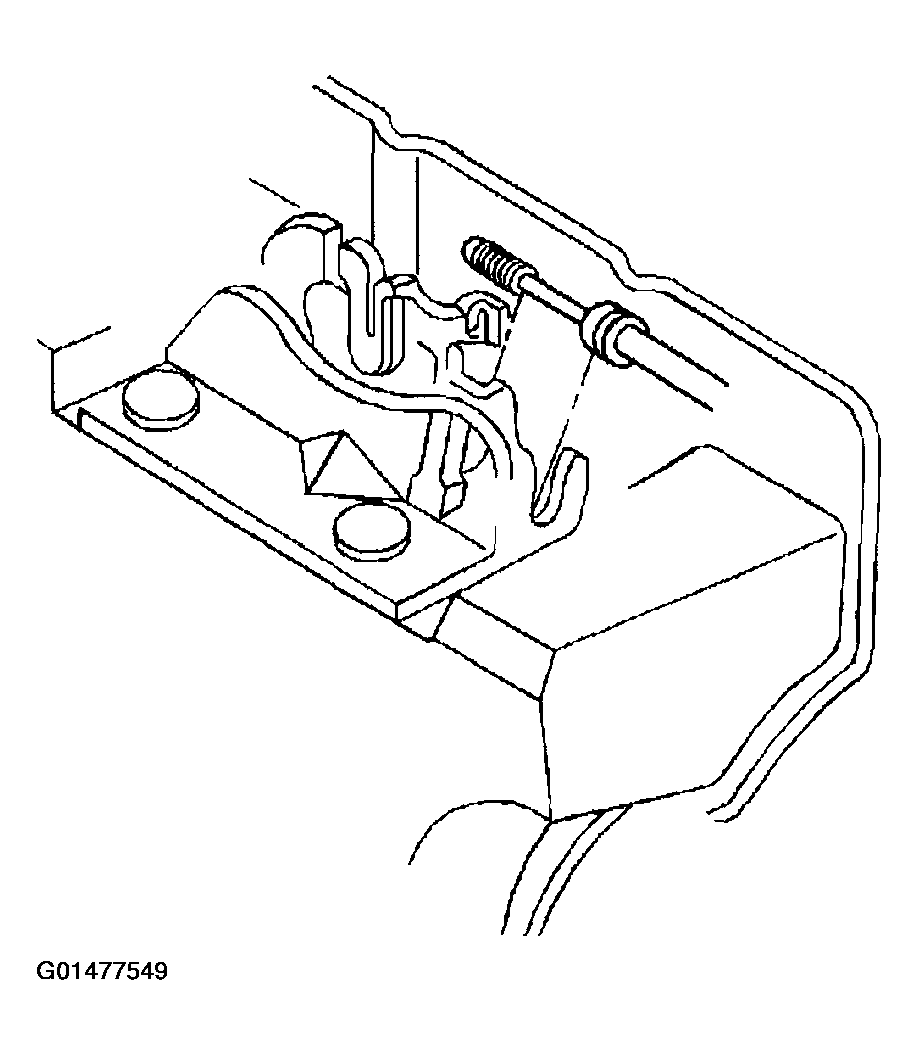

    Fig 5: Installing Hood Latch Cable To Latch
    G01477549Courtesy of GENERAL MOTORS CORP.
