Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retainers to the radiator support.
  2. Install the hood hold-open rod to the retainers.
  3. Remove the temporary hood support.

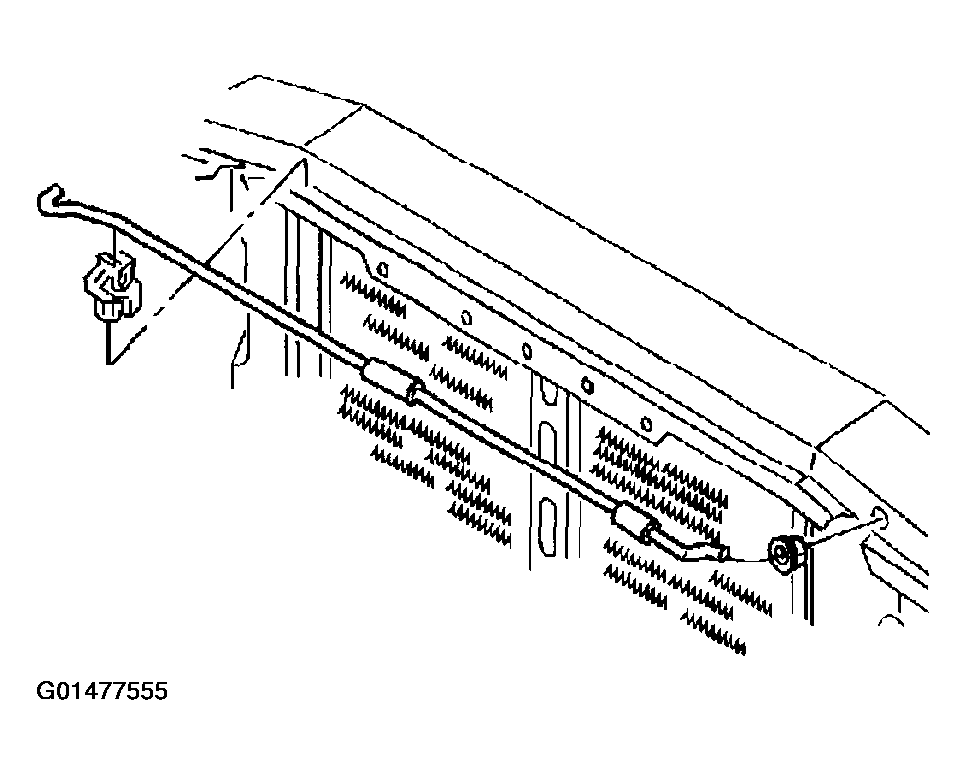

    Fig 1: Installing Hood Hold-Open Rod To Retainers
    G01477555Courtesy of GENERAL MOTORS CORP.
