Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: Inspect the rubber mounts for damage before installing the radiator.

Install the radiator.
Install the transmission oil cooler lines to the radiator. Refer to OIL COOLER LINES QUICK CONNECT FITTING .

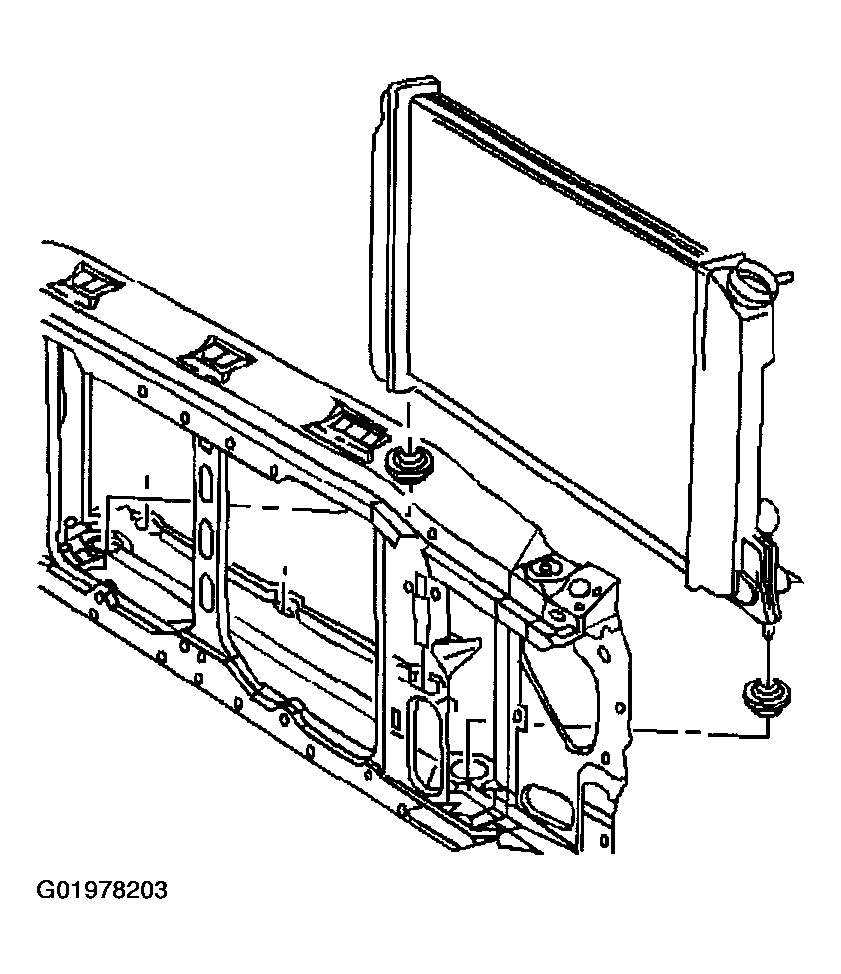

Fig 1: Installing Radiator
Courtesy of GENERAL MOTORS CORP.
Install the radiator outlet hose to the radiator.
Using the J38185 reposition the radiator outlet hose clamp to the radiator.
Install the fan shroud. Refer to FAN SHROUD REPLACEMENT .
Install the radiator inlet hose to the radiator.
Using the J38185 reposition the radiator inlet hose clamp to the radiator.

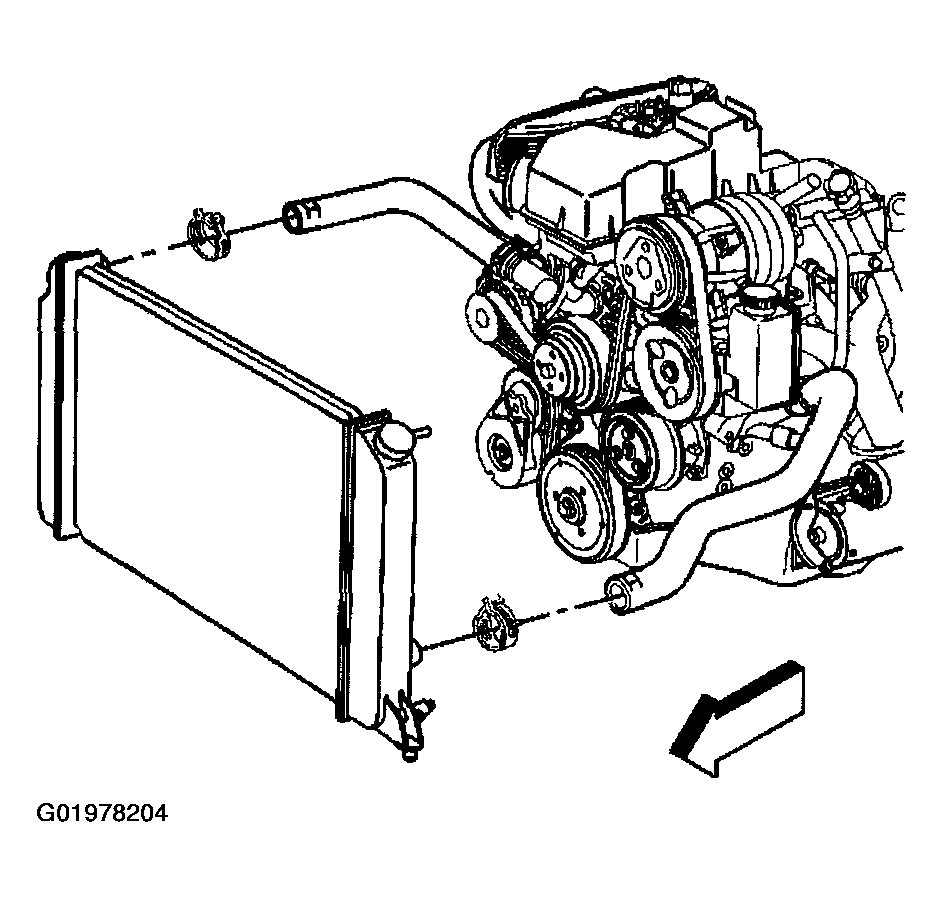

Fig 2: Installing Radiator Outlet Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
Install the coolant recovery reservoir hose to the radiator.
Reposition the coolant recovery hose clamp to the radiator.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

Fig 3: Installing Coolant Recovery Reservoir Hose
Courtesy of GENERAL MOTORS CORP.
