Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper fan shroud. Refer to FAN SHROUD REPLACEMENT  .
  2. Remove the fan clutch assembly in a counterclockwise direction using the J 46406  .
  3. Remove the fan clutch assembly from the vehicle.

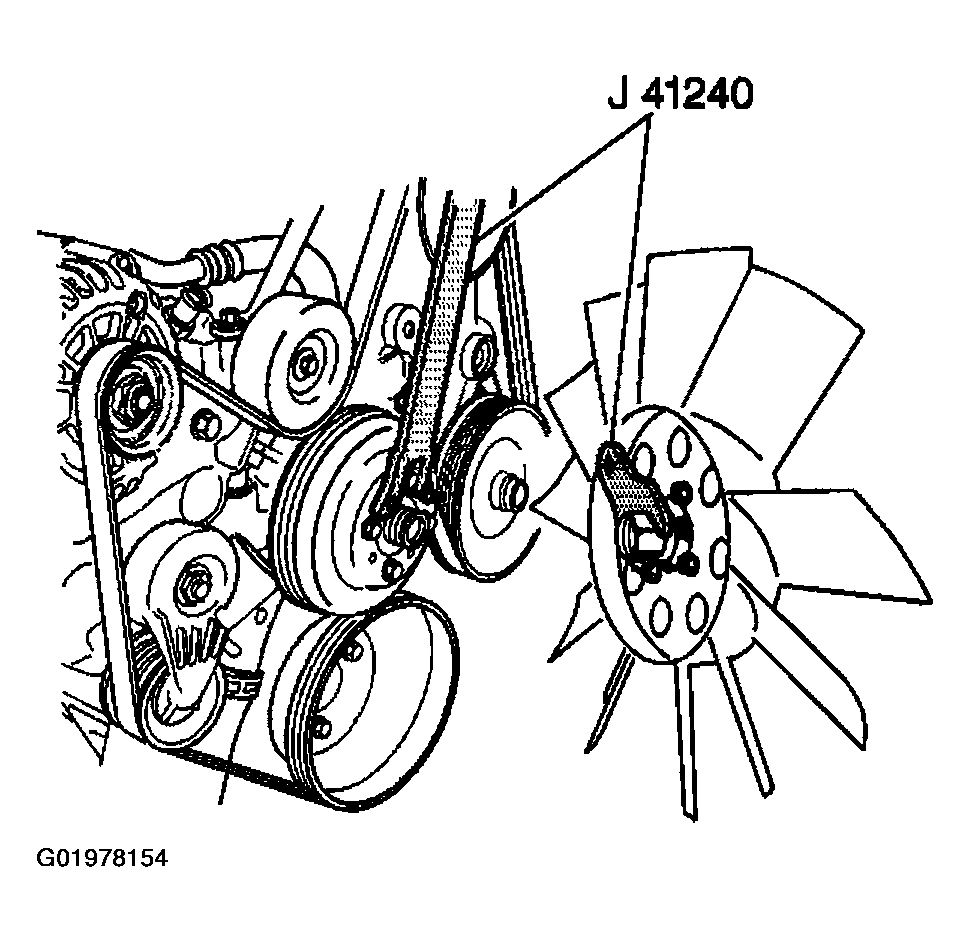

    Fig 1: Removing Fan
    G01978154Courtesy of GENERAL MOTORS CORP.
  4. Remove the fan blade mounting bolts.
  5. Remove the fan blade from the fan clutch.

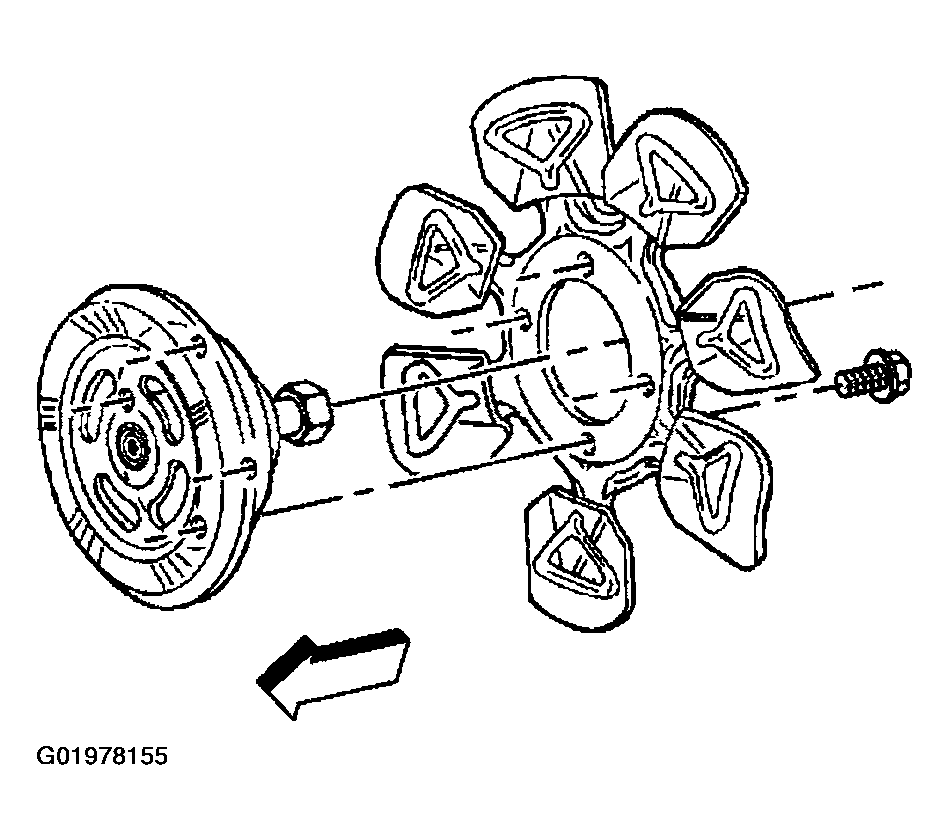

    Fig 2: Removing Fan Blade From Fan Clutch
    G01978155Courtesy of GENERAL MOTORS CORP.
