Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front differential carrier shield.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the front differential carrier shield bolts and the washers.

    Tighten

    Tighten the front differential carrier shield bolts to 25 N.m (18 lb ft).

  3. Lower the vehicle.

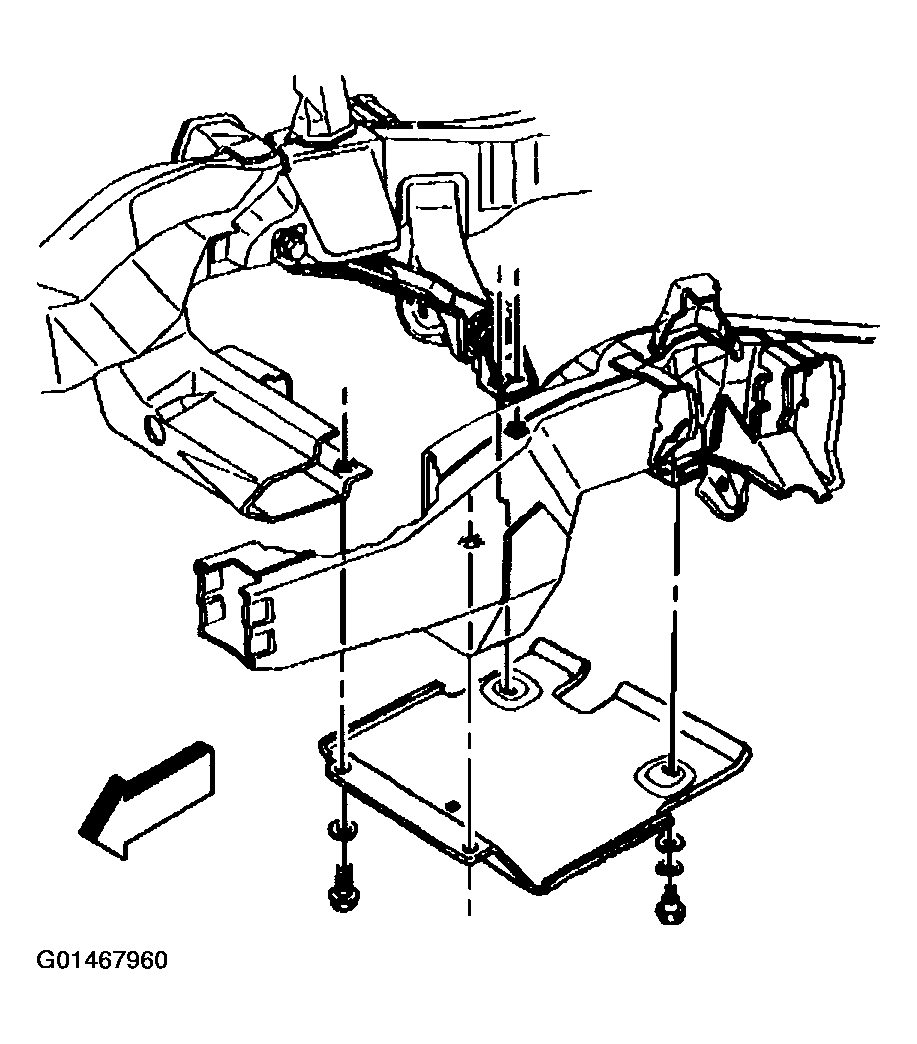

Fig 1: Installing Front Differential Carrier Shield Bolts And Washers
G01467960Courtesy of GENERAL MOTORS CORP.
