Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the wheelhouse extension (1) to the wheelhouse.
  2. Install the push-pin (2) in order to retain the wheelhouse extension (1) to the wheelhouse.

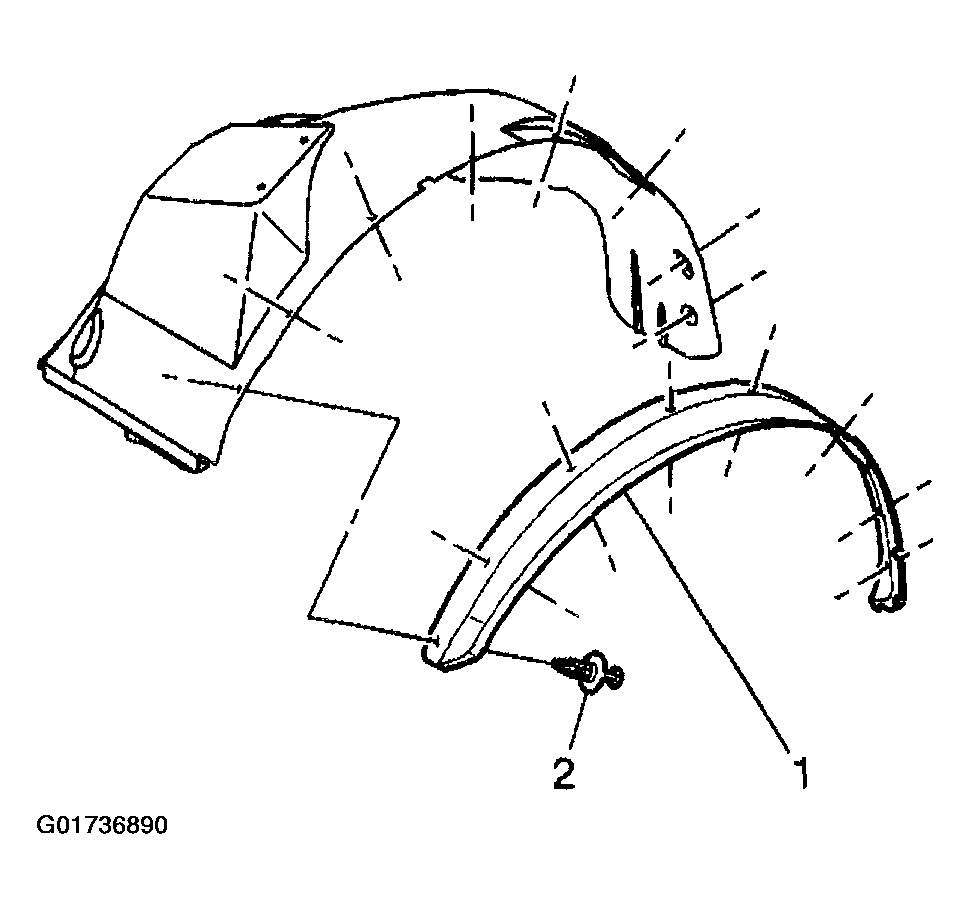

    Fig 1: Installing Wheelhouse Extension
    G01736890Courtesy of GENERAL MOTORS CORP.
