Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the insulator (2) to the hood (1).
  2. Install the hood insulator retainers.
  3. Install the retainers holding the underhood lamp and harness to the hood. Refer to UNDERHOOD LAMP REPLACEMENT (BASE) or UNDERHOOD LAMP REPLACEMENT (RETRACTABLE) .
  4. Connect the electrical connector to the underhood lamp.
  5. Close the hood.

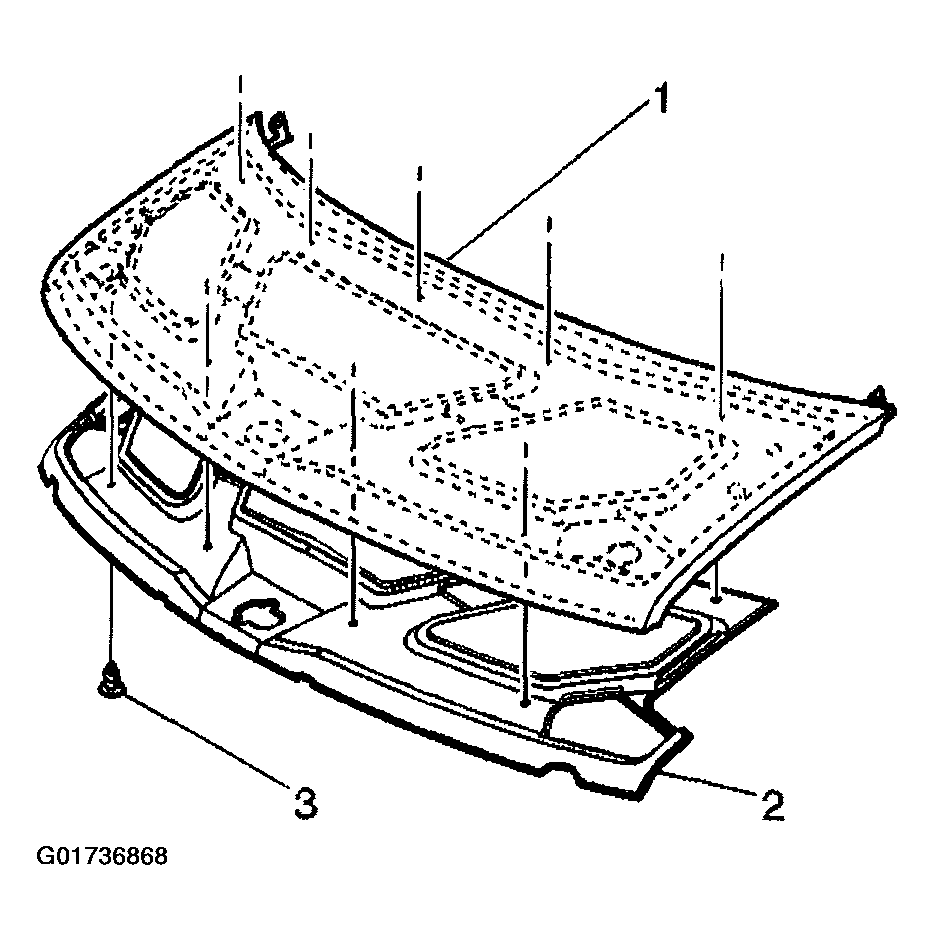

    Fig 1: Installing Insulator
    G01736868Courtesy of GENERAL MOTORS CORP.
