Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the seat back frame (1) straight down into recliner.
    CAUTION: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat back frame fasteners (3).

    Tighten

    Tighten the seat back frame fasteners (3) to 28 N.m (21 lb ft).

  3. Install the lumbar. Refer to Lumbar Replacement - Front Seat (Power)  .
  4. Install the seat back cover and pad. Refer to Seat Back Cover And Pad Replacement - Front  .
  5. Enable the SIR system. Refer to ACTIVATING SYSTEM in SIR.

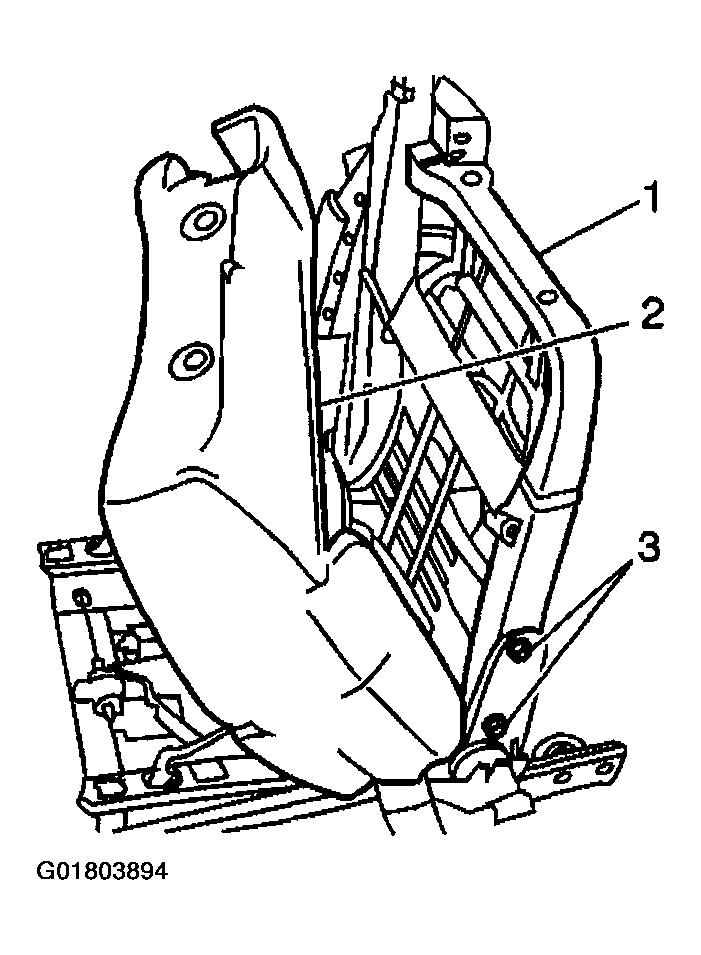

    Fig 1: Locating Seat Back Frame
    G01803894Courtesy of GENERAL MOTORS CORP.
