Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside handle bezel from the door trim pad. Refer to HANDLE BEZEL REPLACEMENT -- INSIDE in Doors.
  2. Remove the front door switch plate. Refer to FRONT DOOR SWITCH REPLACEMENT in Doors.

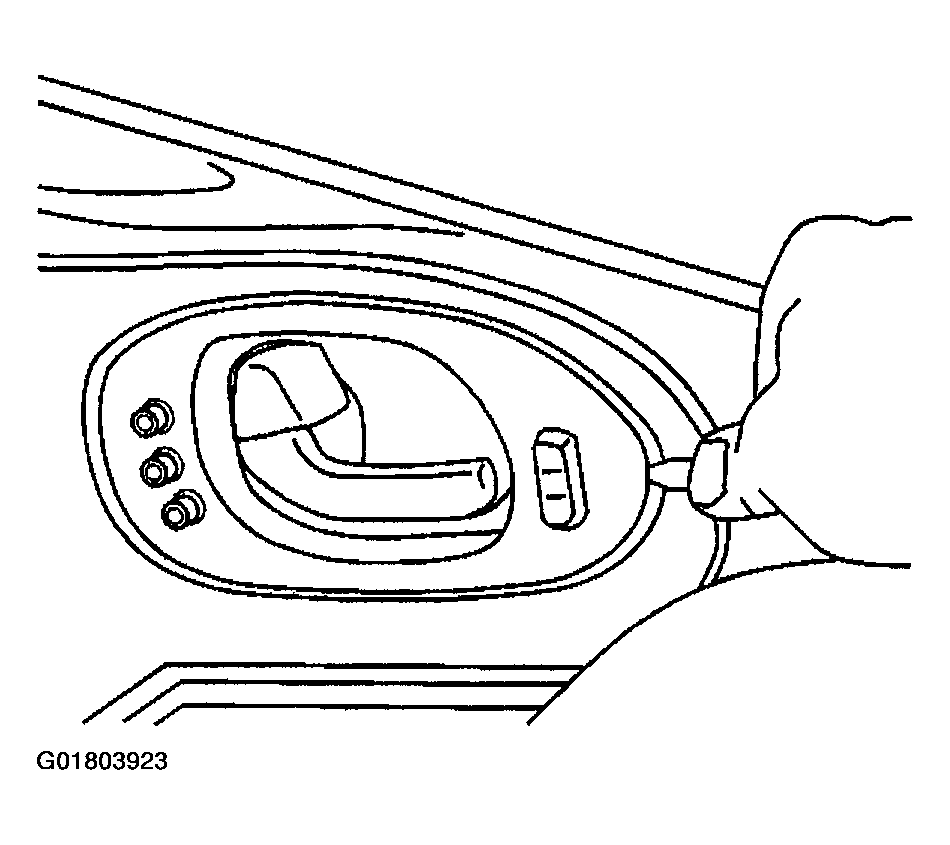

    3. Fig 1: Removing Front Door Switch Plate
    G01803923Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector for the memory seat switch through the power door switch opening in the door trim panel.
  4. Remove the memory seat switch from the inside handle bezel by releasing the tabs with a small flat bladed tool.
  5. Gently remove the electrical wiring for the memory seat switch from behind the door trim panel.

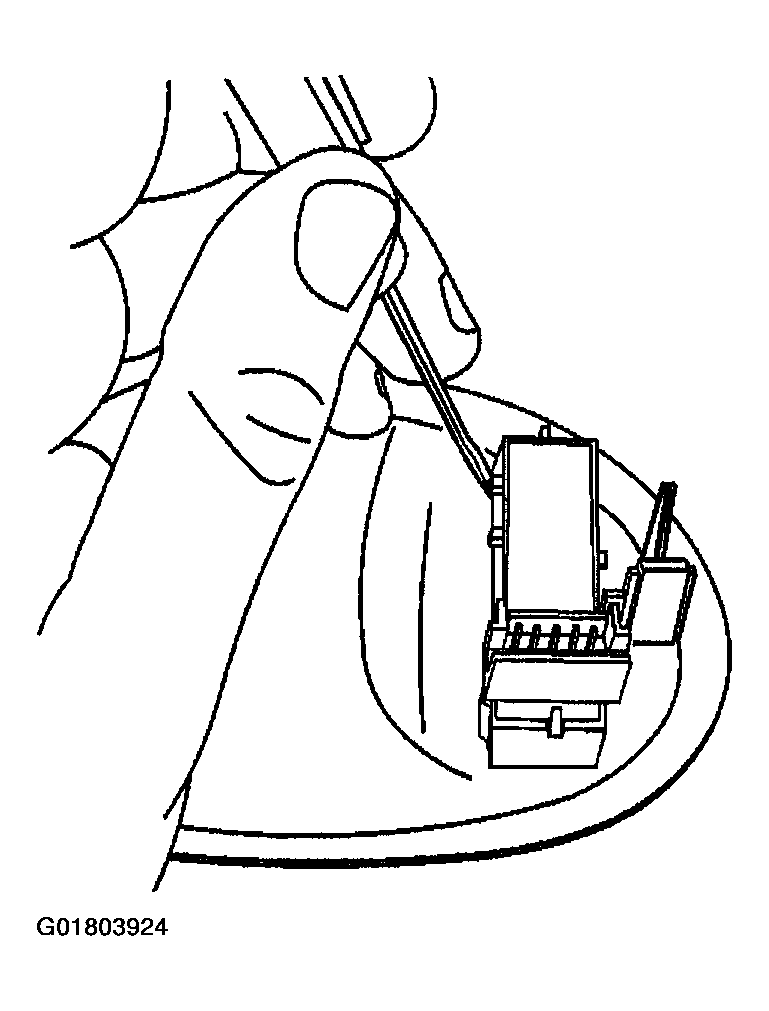

    Fig 2: Removing Memory Seat Switch
    G01803924Courtesy of GENERAL MOTORS CORP.
