Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

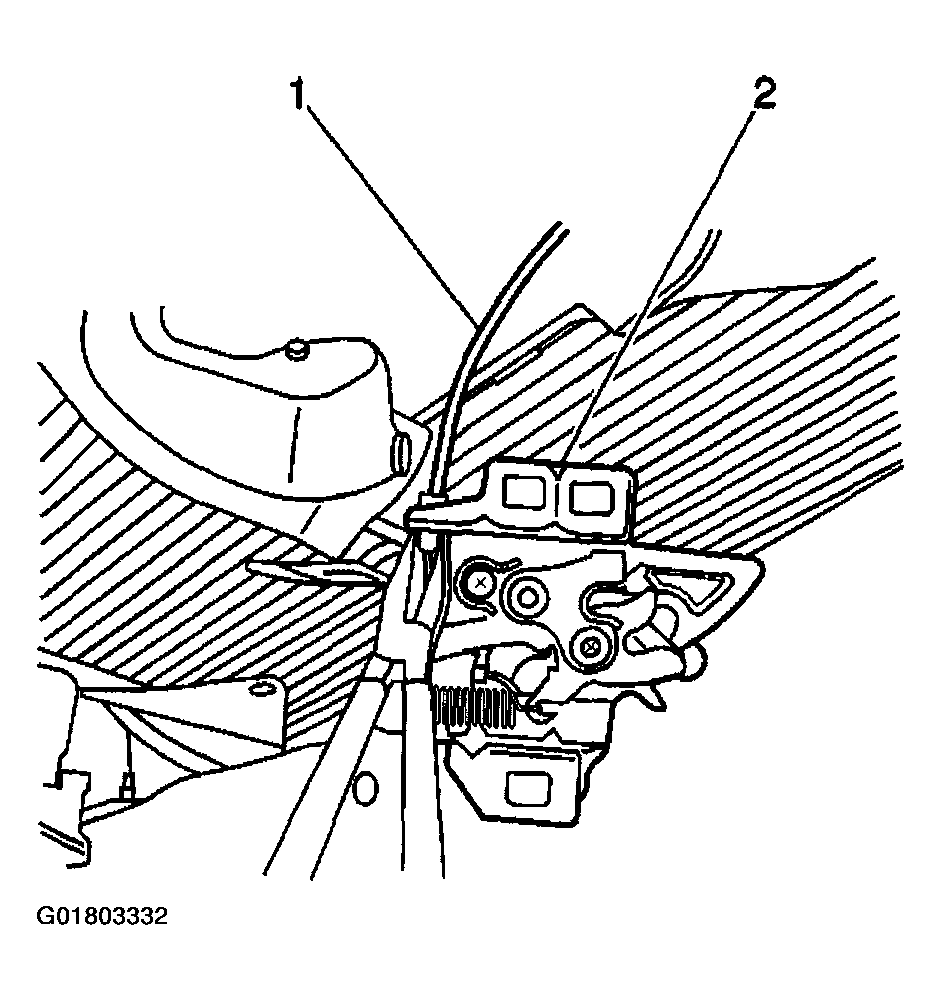

  1. Connect the hood release cable (1) to the hood latch (2).
    Fig 1: Connecting Hood Release Cable
    G01803332Courtesy of GENERAL MOTORS CORP.
  2. Install the hood latch (2).
    CAUTION: Refer to FASTENER NOTICE .

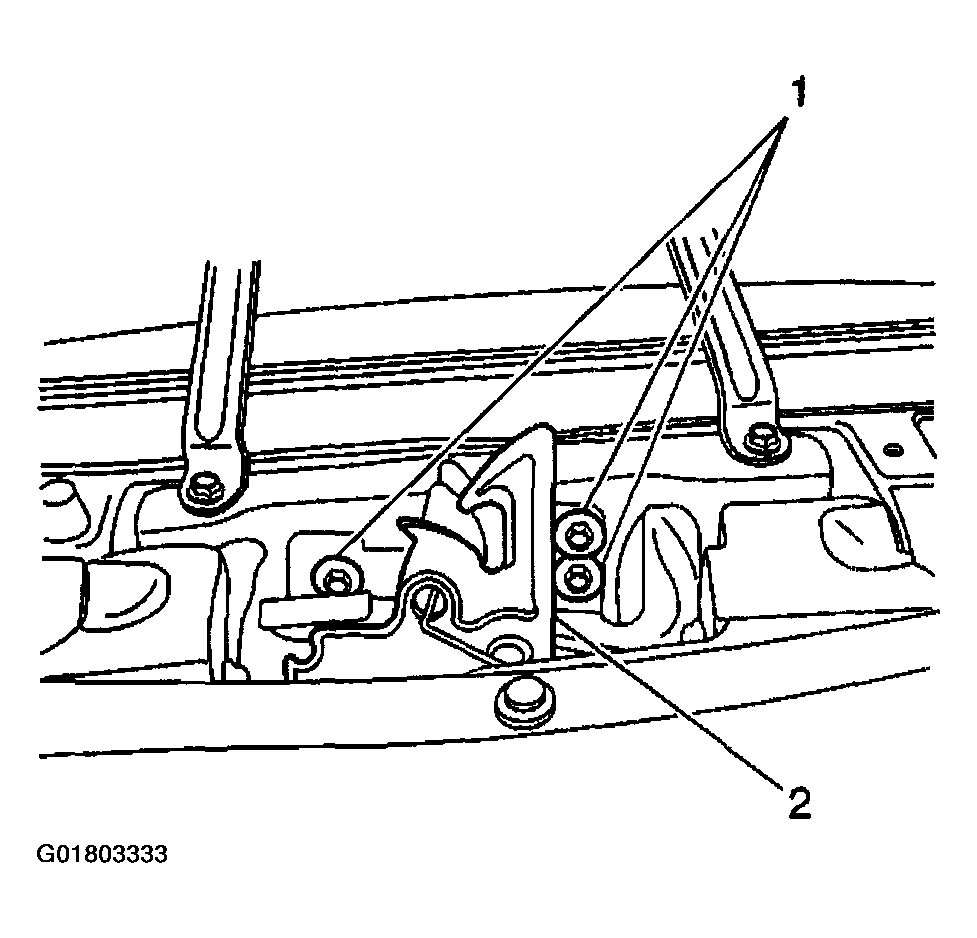

  3. Install the bolts (1) in order to retain the hood latch.

    Tighten

    Tighten the bolts to 9 N.m (80 in lbs).

  4. Adjust the hood primary latch (2). Refer to Hood Latch Adjustment  .
    Fig 2: Locating Hood Latch Bolts
    G01803333Courtesy of GENERAL MOTORS CORP.
