Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender sound insulator (1) to the vehicle.
  2. Install the push in retainers (2) to the front fender sound insulator (1).

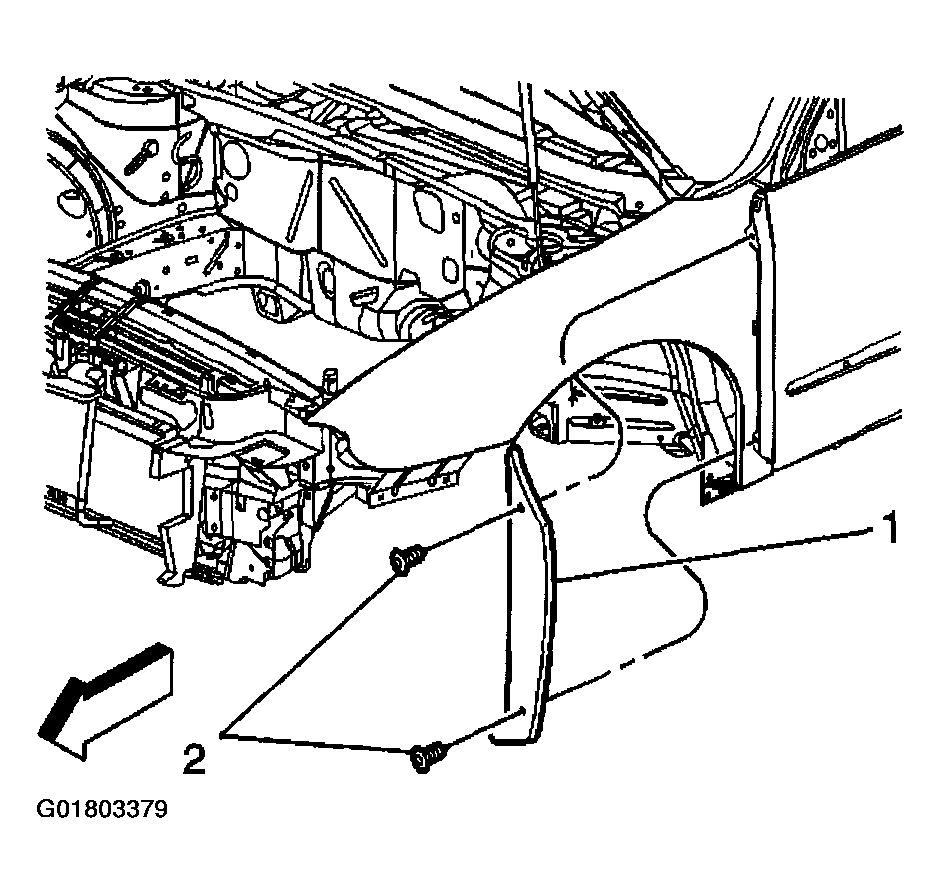

    3. Fig 1: Installing Front Fender Sound Insulator
    G01803379Courtesy of GENERAL MOTORS CORP.
  3. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front  .
  4. Install the front fascia extension. Refer to TRACTION OFF INDICATOR INOPERATIVE (W/NW9) .
