Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rocker molding. Refer to MOLDING REPLACEMENT -- ROCKER PANEL .
  2. Remove the air deflector. Refer to Air Deflector Replacement - Front  .
  3. Remove the fascia to fender fasteners. Refer to FASCIA REPLACEMENT -- FRONT BUMPER .
  4. Remove the fender fasteners (2).
  5. Remove the fender (1) from the vehicle.

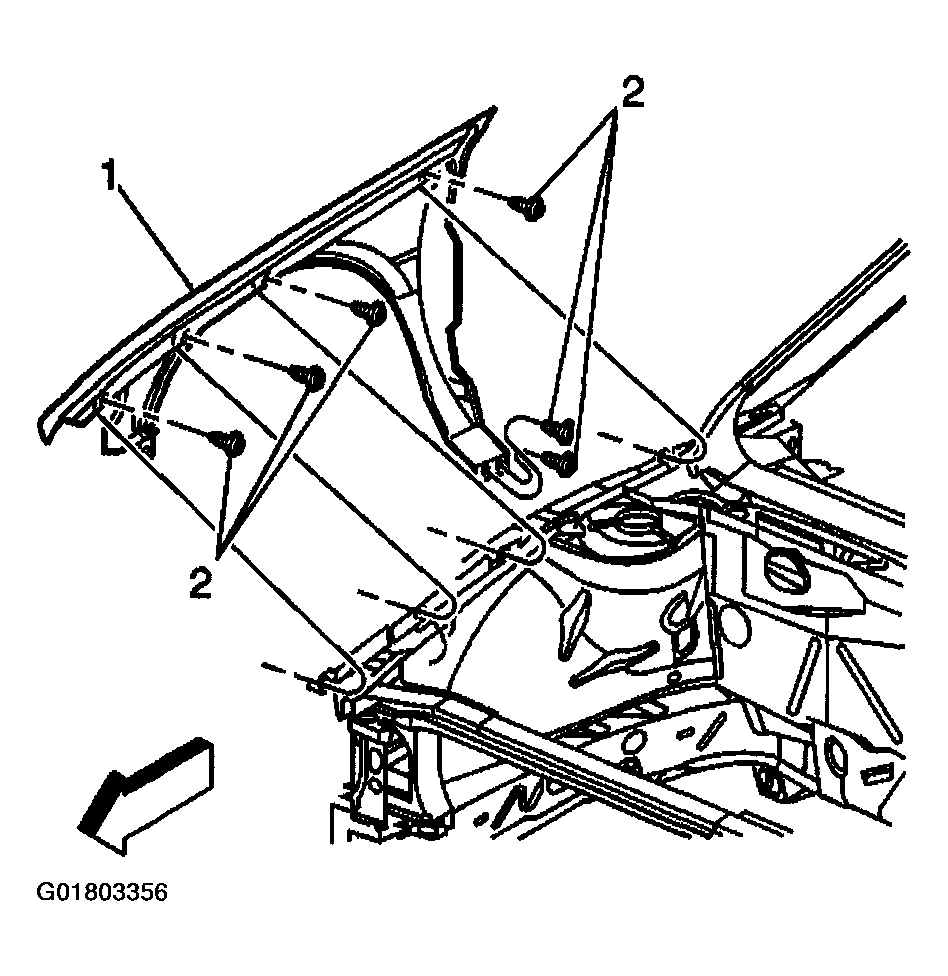

    Fig 1: Removing Fender
    G01803356Courtesy of GENERAL MOTORS CORP.
