Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front air deflector (5).
  2. Install the front air deflector retainers (1, 2, 3, 4).
  3. Lower the vehicle.

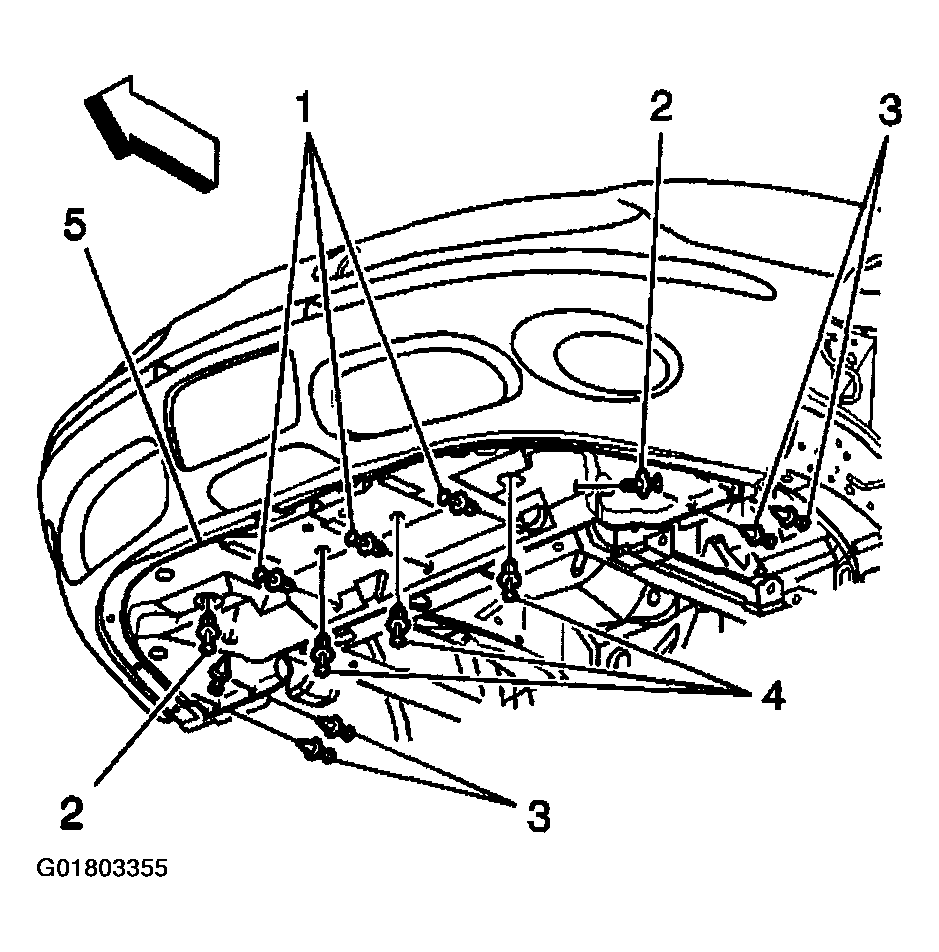

    Fig 1: Installing Front Air Deflector
    G01803355Courtesy of GENERAL MOTORS CORP.
