Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
  2. Disconnect the battery positive cable (1) from the battery.

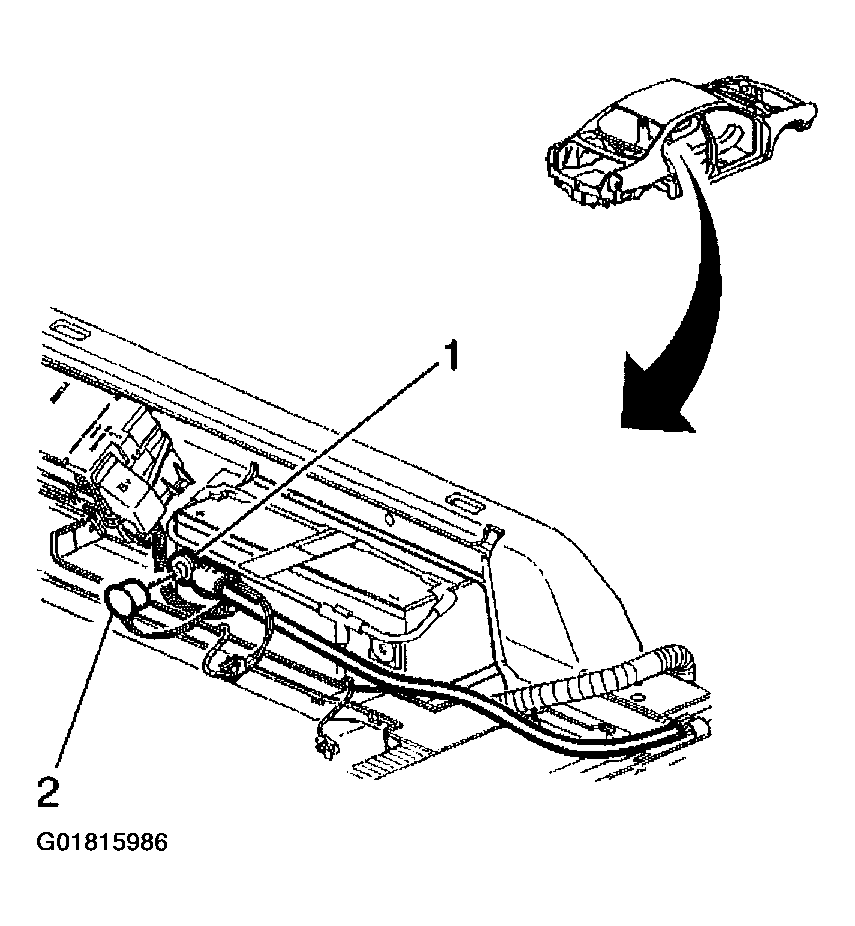

    Fig 1: Locating Battery Negative Cable
    G01815986Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.

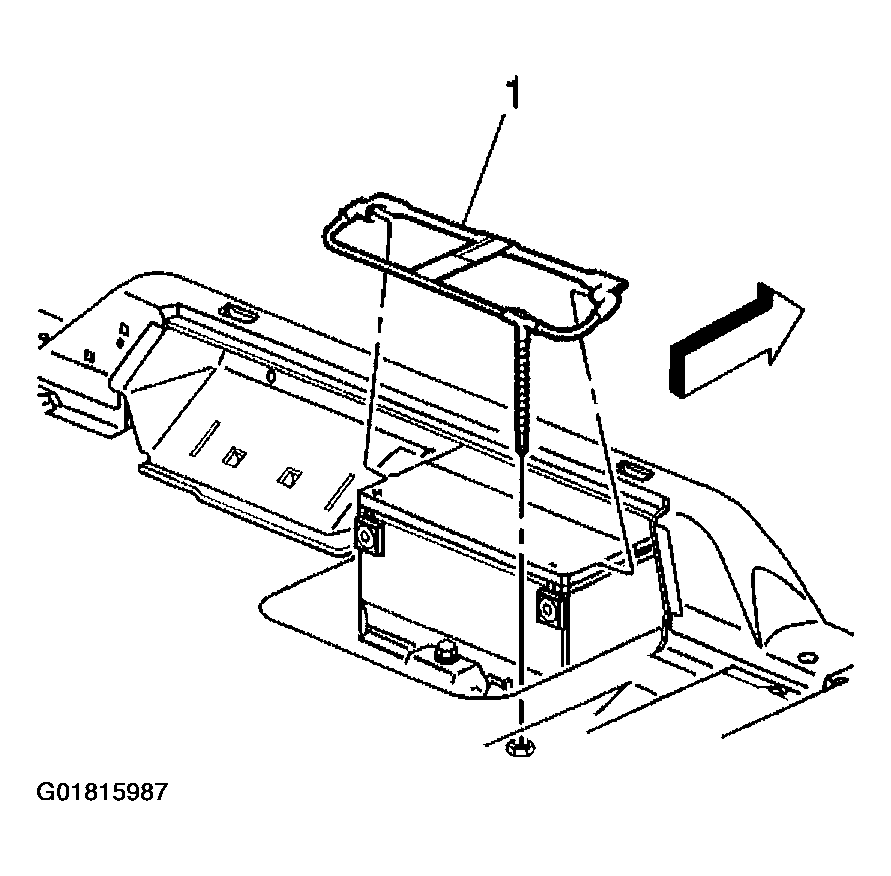

    Fig 2: Removing Battery Vent Tube
    G01815987Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.
  5. Remove the battery.

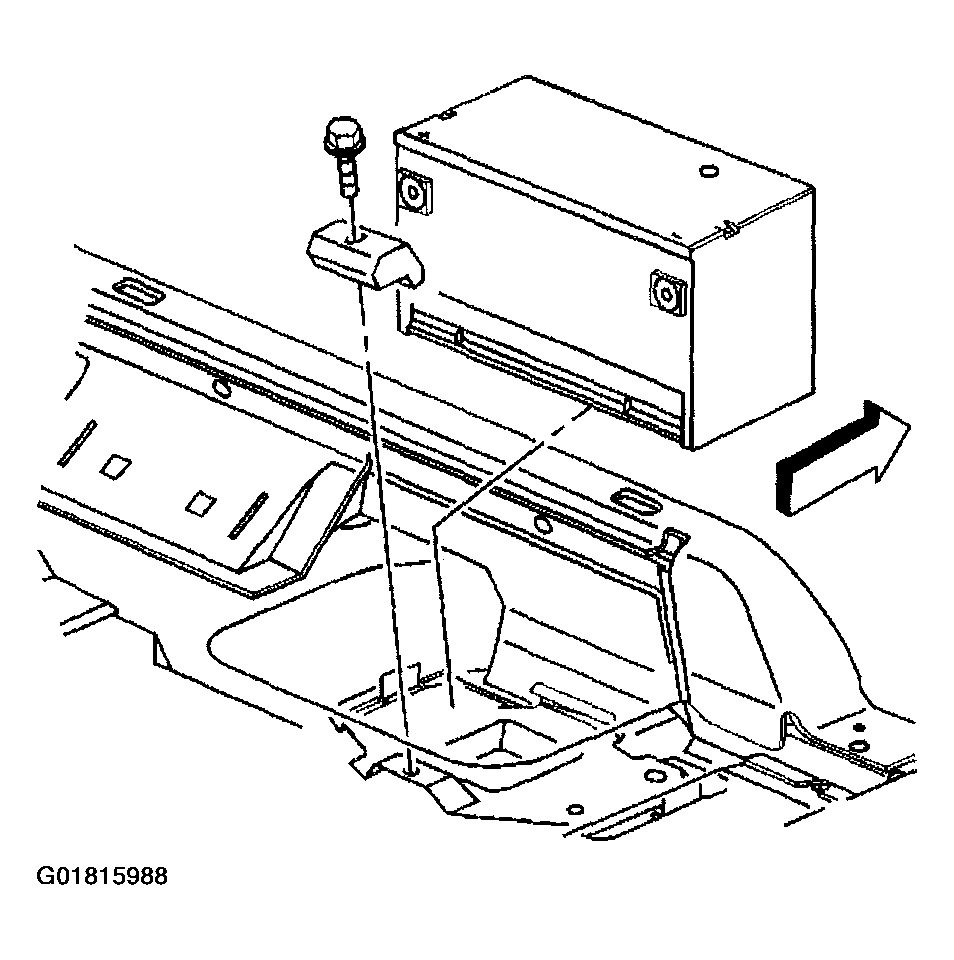

    Fig 3: Removing Battery
    G01815988Courtesy of GENERAL MOTORS CORP.
