Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Slide the battery cable (1) through the opening in the cowl panel (3) and seat the cable grommet (2) by pulling the cable forward into the engine compartment.

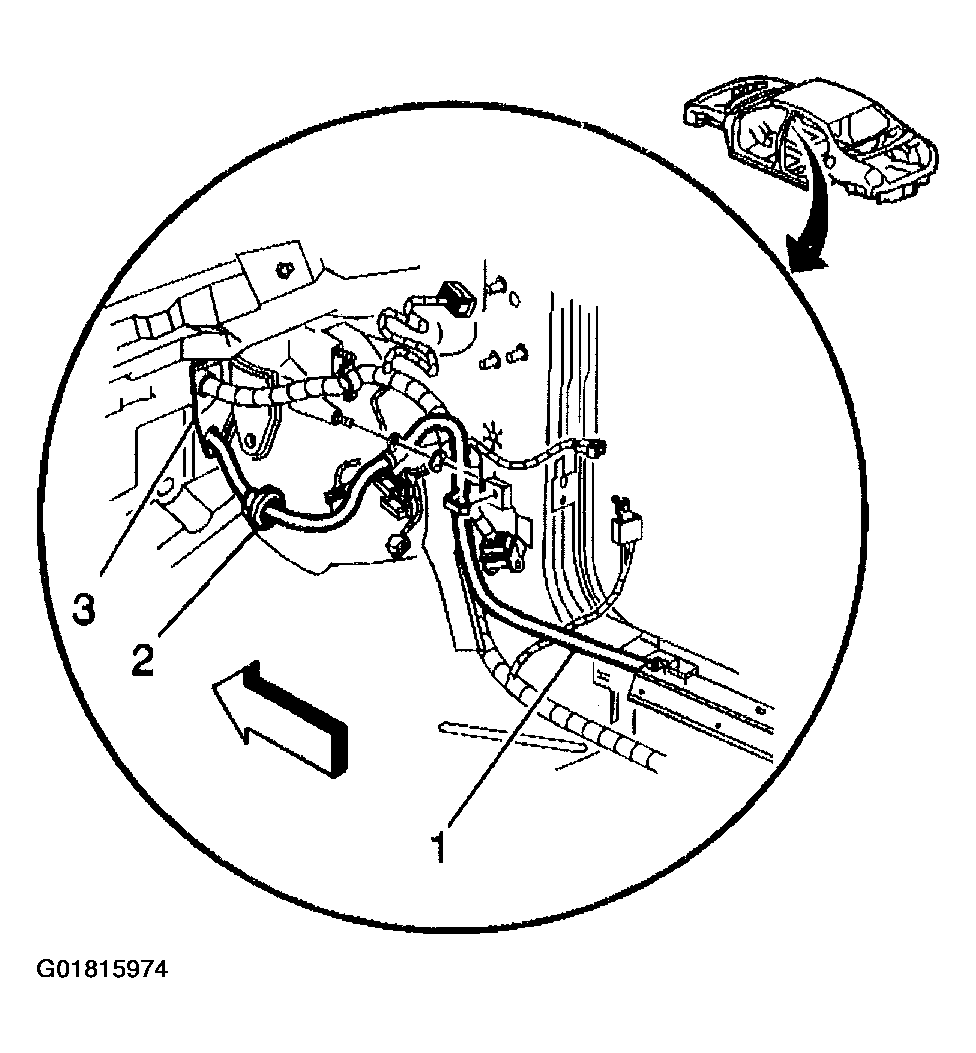

Fig 1: Installing Battery Cable
Courtesy of GENERAL MOTORS CORP.
Install the battery cable retainer to the body side rail.
Install the surge tank. Refer to SURGE TANK REPLACEMENT .

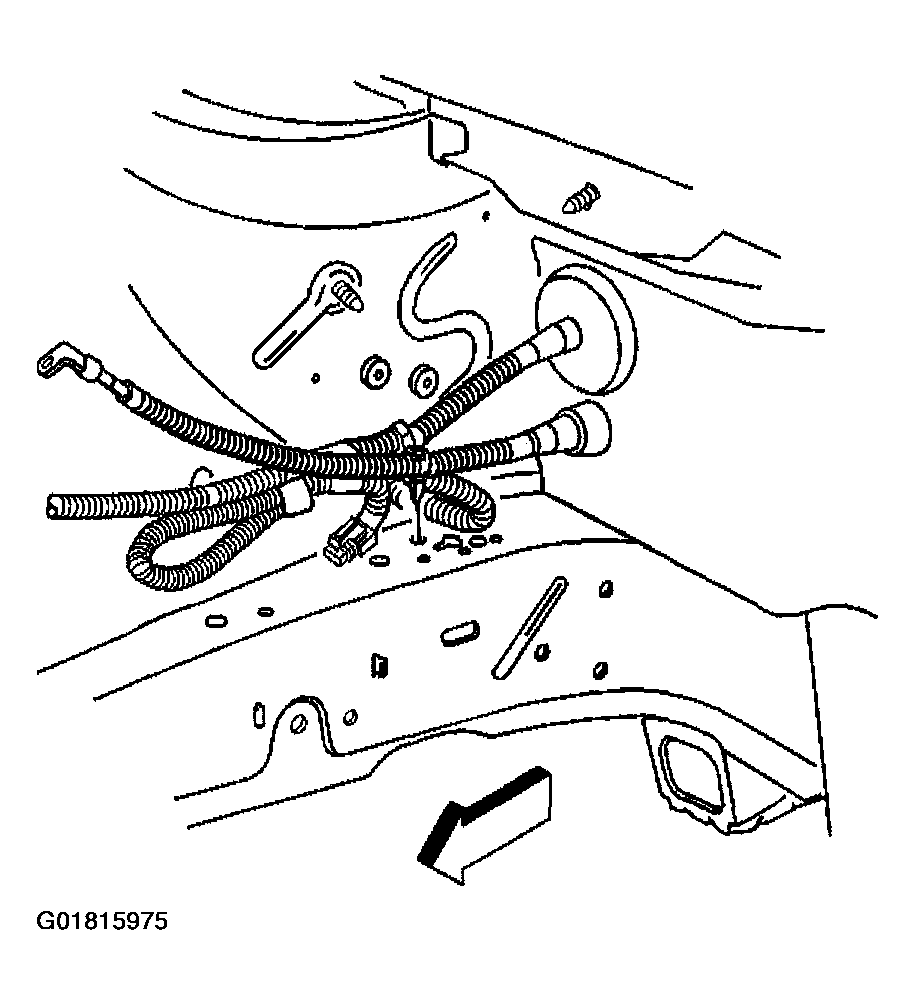

Fig 2: Connecting Battery Cable Retainer From Body Side Rail
Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to FASTENER NOTICE .
Connect the battery positive cable to the underhood fuse block (2).
- LX5 (3.5L, MFI, V6)
  Tighten

  Tighten the battery positive cable to remote positive terminal nut to 15 N.m (11 lb ft).
- L47 (8 CYL, 4.0L, MFI, DOHC)
  Tighten

  Tighten the battery positive cable to remote positive terminal nut to 12 N.m (106 lb in).

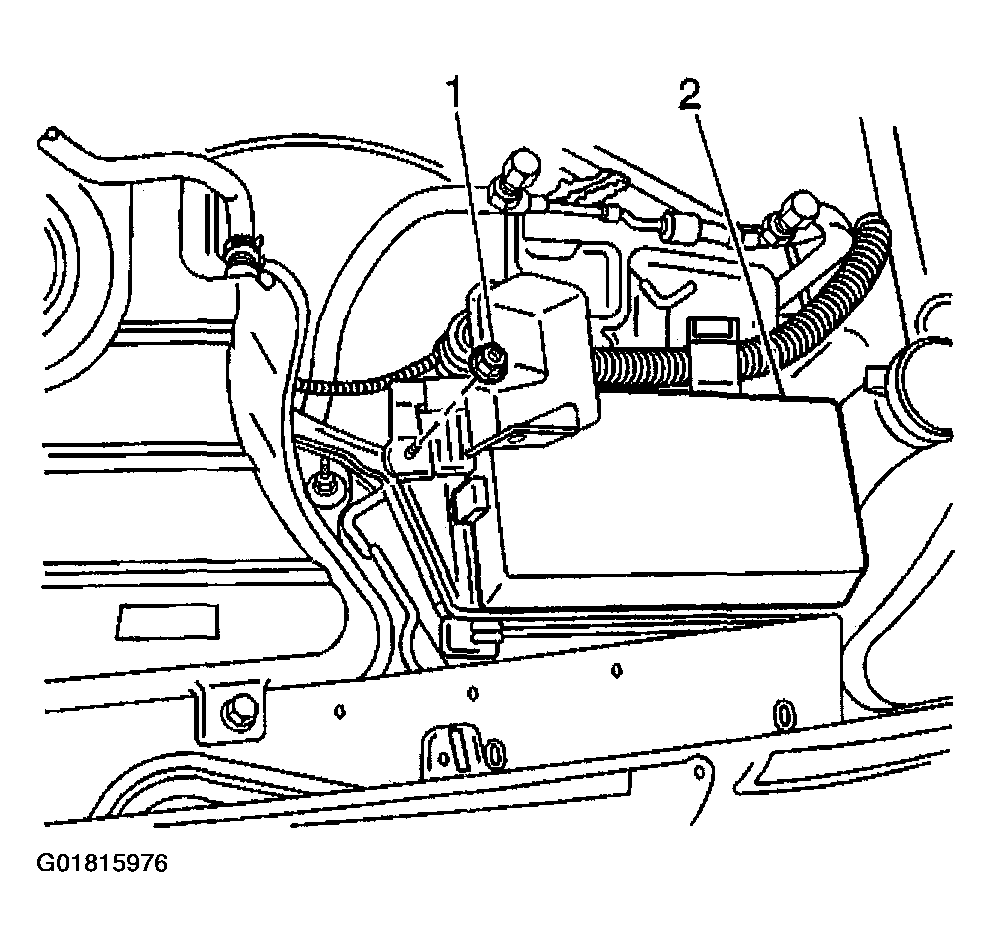

Fig 3: Locating Positive Terminal Nut & Battery Positive Cable
Courtesy of GENERAL MOTORS CORP.
Route the battery cable (1) along the rocker panel and install the cable retainers (2).
Install the right closeout insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT .
Install the interior trim moldings. Refer to GARNISH MOLDING REPLACEMENT -- CENTER PILLAR .

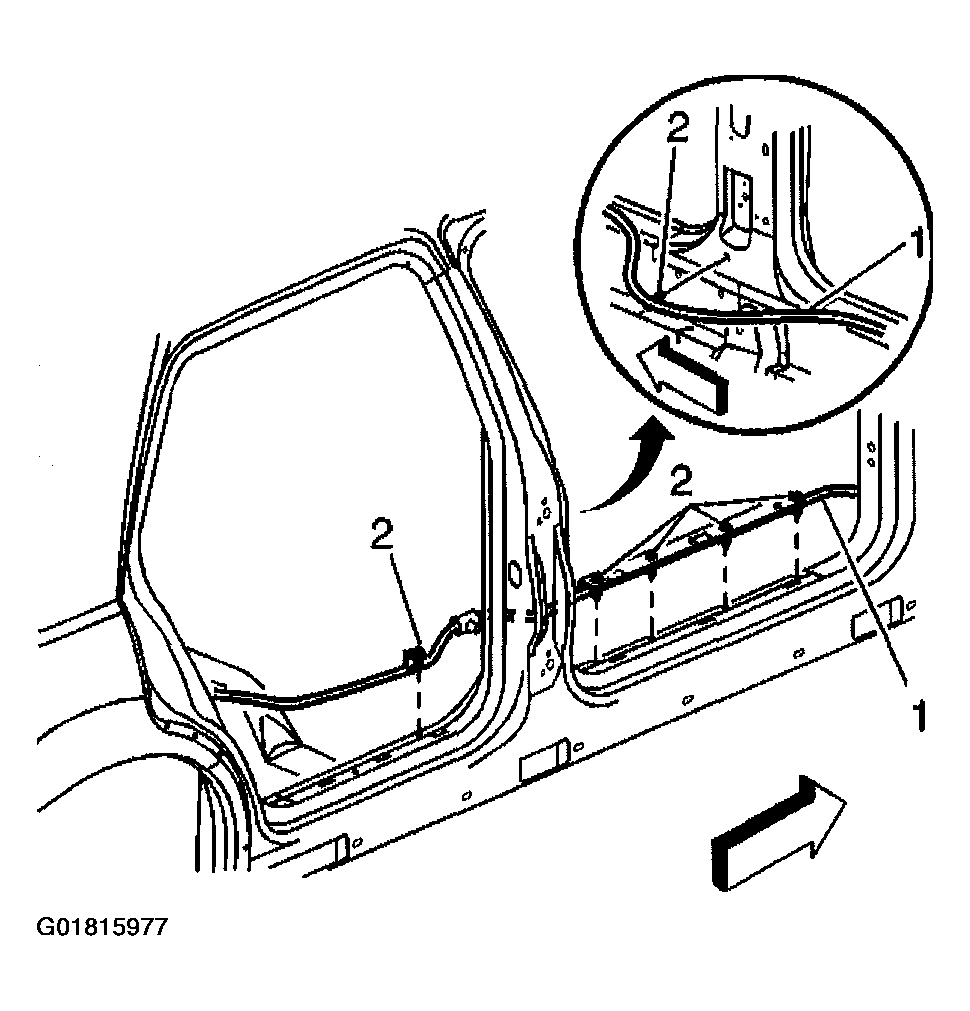

Fig 4: Removing Battery Cable Retainers
Courtesy of GENERAL MOTORS CORP.
Connect the battery positive cable to the rear fuse block.
Tighten

Tighten the battery positive cable to rear fuse block nut (1) to 15 N.m (11 lb ft).

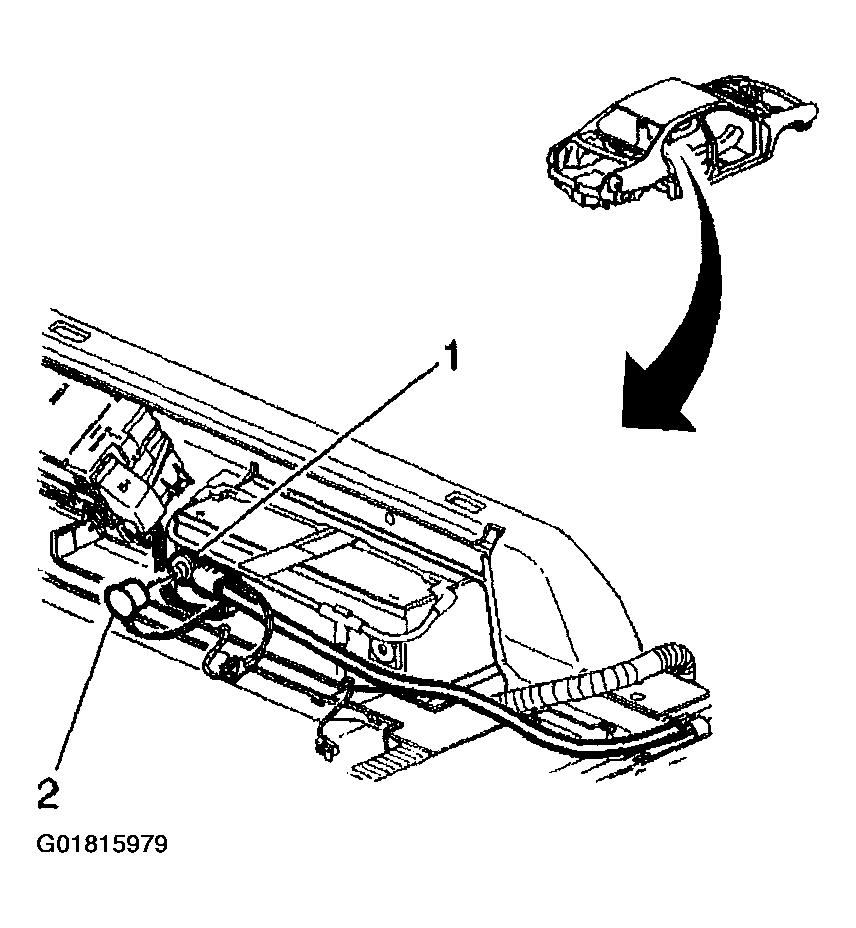

Fig 5: Removing Battery Positive Cable To Rear Fuse Block Nut
Courtesy of GENERAL MOTORS CORP.
Connect the battery positive cable (1) to the battery.
Tighten

Tighten the battery cable bolt to 17 N.m (13 lb ft).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .

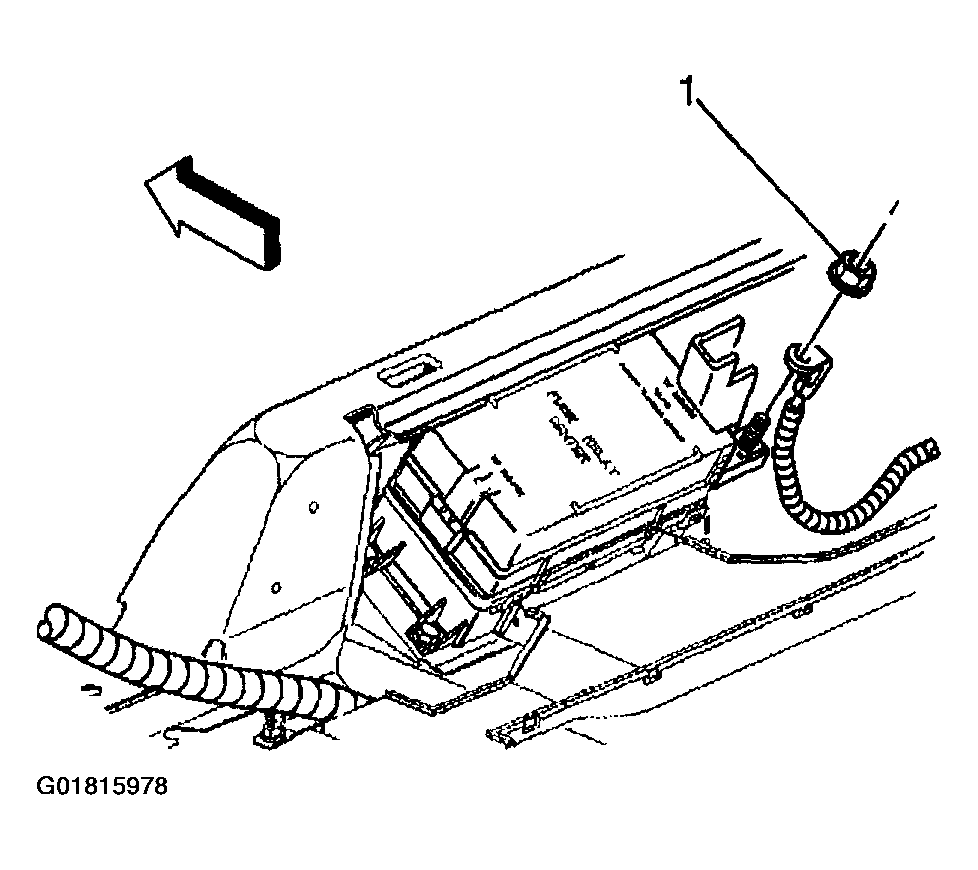

Fig 6: Locating Battery Negative Cable
Courtesy of GENERAL MOTORS CORP.
