Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front seat riser (3) to the seat adjuster (1).
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring the use of thread locking compound or sealant are identified in corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the nuts (2) in order to retain the seat riser to the seat adjuster.

    Tighten

    Tighten the nuts in order to retain the seat riser to the seat adjuster to 45 N.m (33 ft lbs).

  3. Install the front seat assembly to the vehicle. Refer to Seat Replacement - Bucket (All Except Luxury)  or Seat Replacement - Bucket (Luxury Y91)

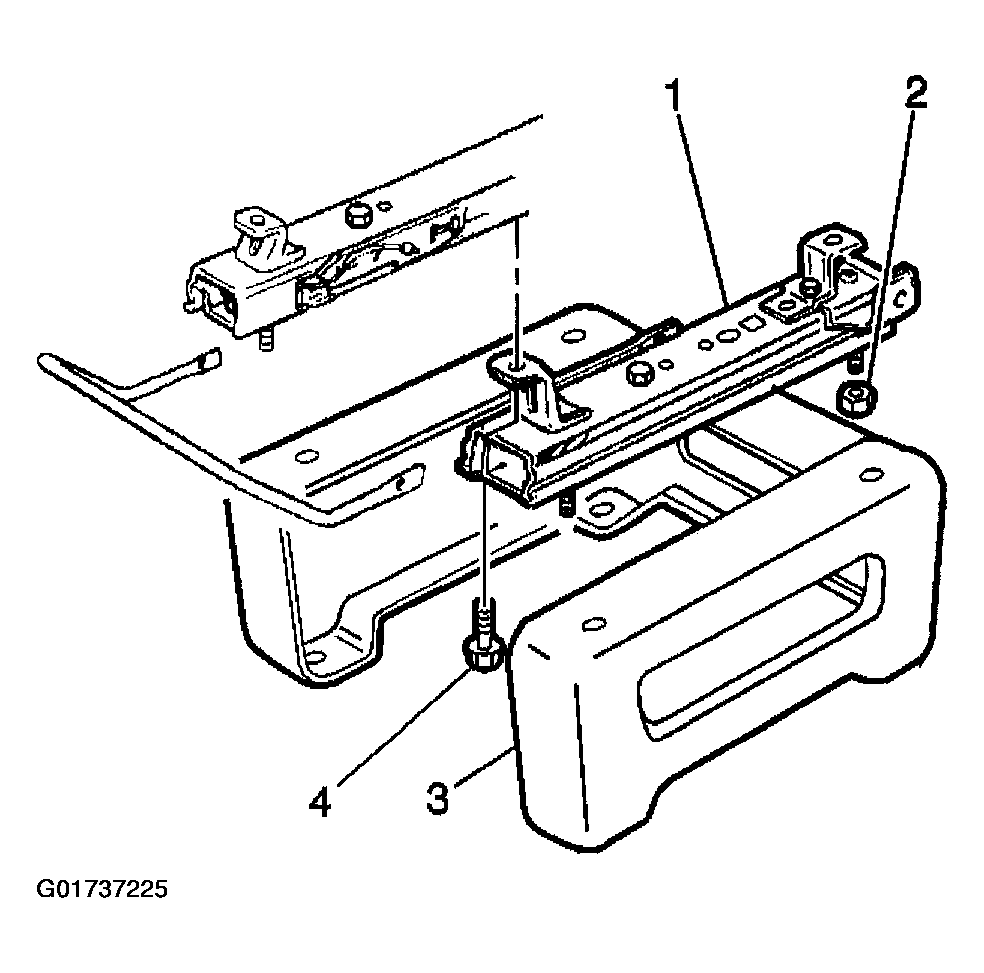

Fig 1: Installing Front Seat Riser & Nuts
G01737225Courtesy of GENERAL MOTORS CORP.
