Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front floor mat/carpet to the vehicle.
  2. Install the front door stepwell mat. Refer to Mat Replacement - Stepwell .

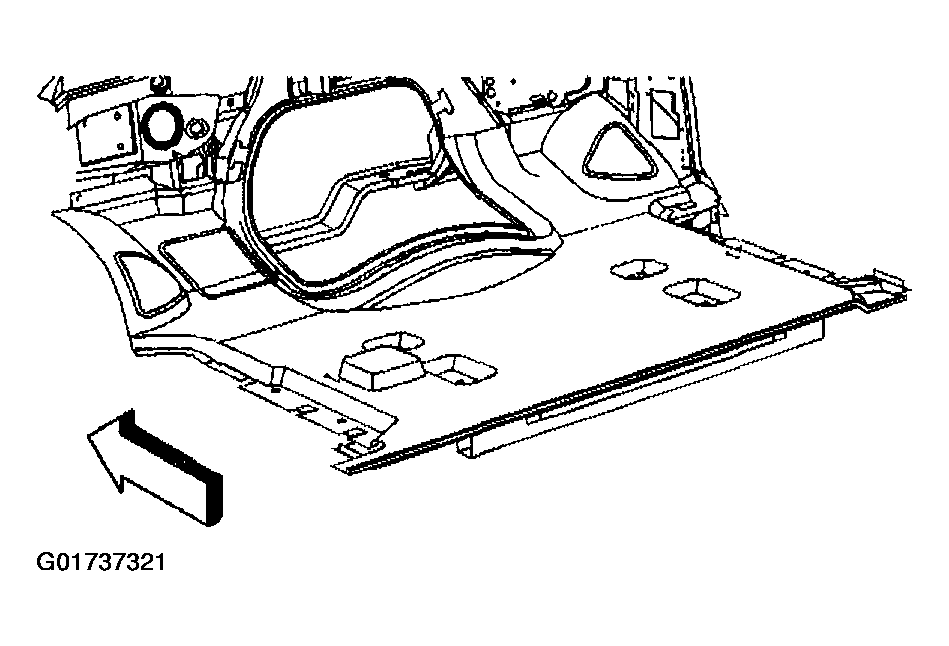

    3. Fig 1: Installing Front Floor Mat/Carpet
    G01737321Courtesy of GENERAL MOTORS CORP.
  3. Install the hinge pillar trim panel. Refer to Trim Replacement - Hinge Pillar .
  4. Install the engine cover. Refer to Engine Cover Replacement .
  5. Install the front seats. Refer to SEAT REPLACEMENT - BUCKET (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - BUCKET (LUXURY Y91) .
