Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel lower extension. Refer to INSTRUMENT PANEL (I/P) EXTENSION REPLACEMENT .
  2. Remove the passenger seat from the vehicle in the 6.5L and the 8.1L diesel engines. Refer to SEAT REPLACEMENT - BUCKET (ALL EXCEPT LUXURY) or SEAT REPLACEMENT - BUCKET (LUXURY Y91) .
  3. Release the engine cover retaining straps.

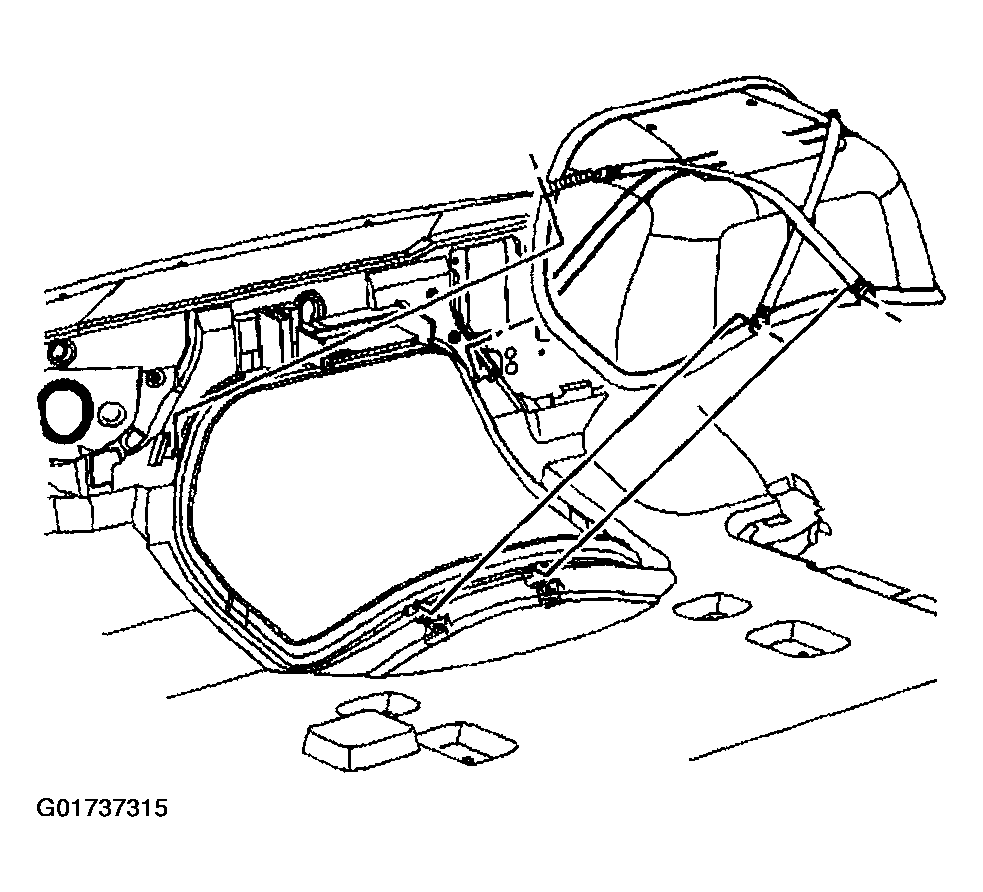

    4. Fig 1: Removing Engine Cover From Vehicle
    G01737315Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine cover from the vehicle.
