Engine Overheating

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

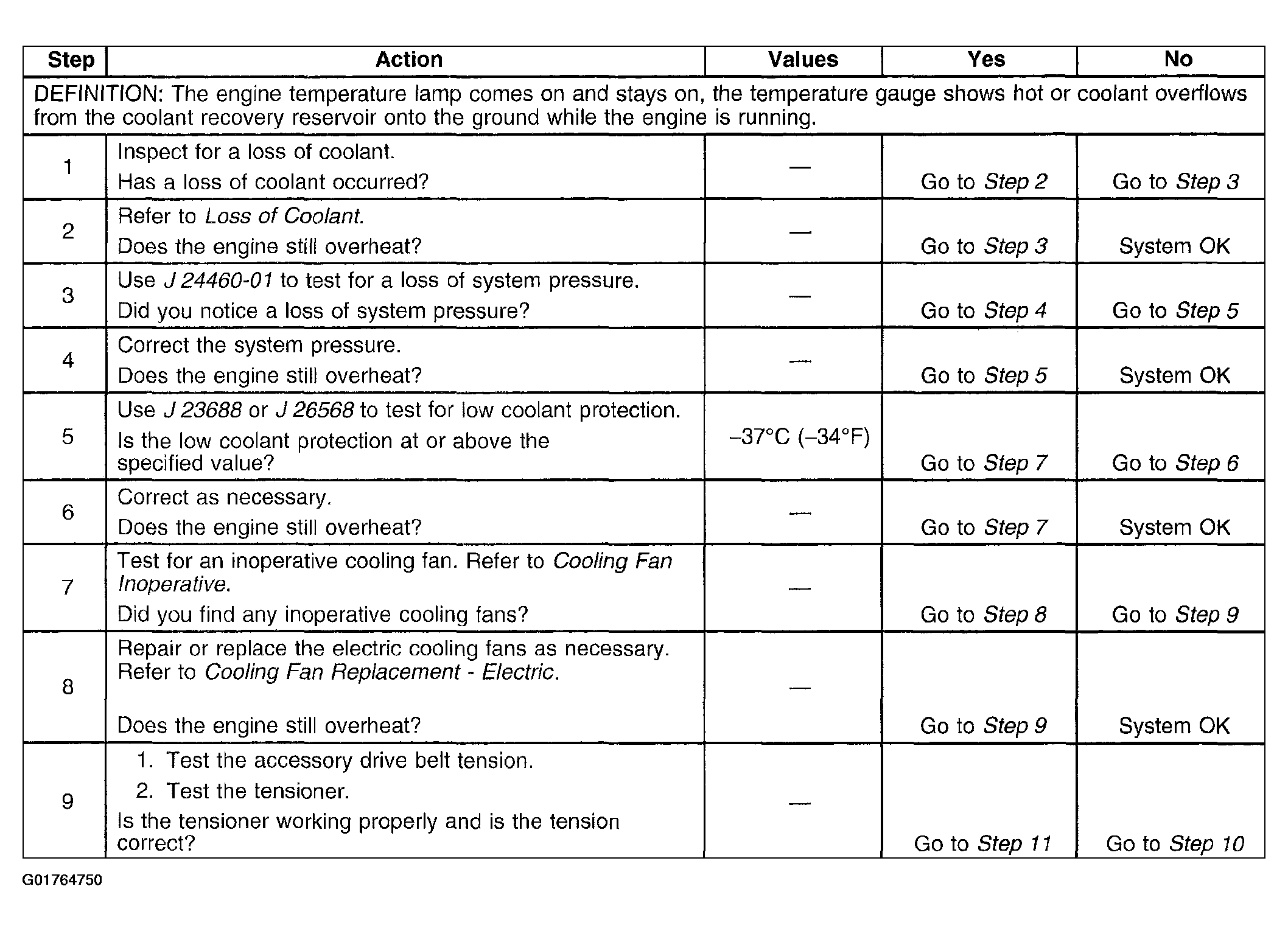

Fig 1: Engine Overheating (1 of 2)
G01764750Courtesy of GENERAL MOTORS CORP.

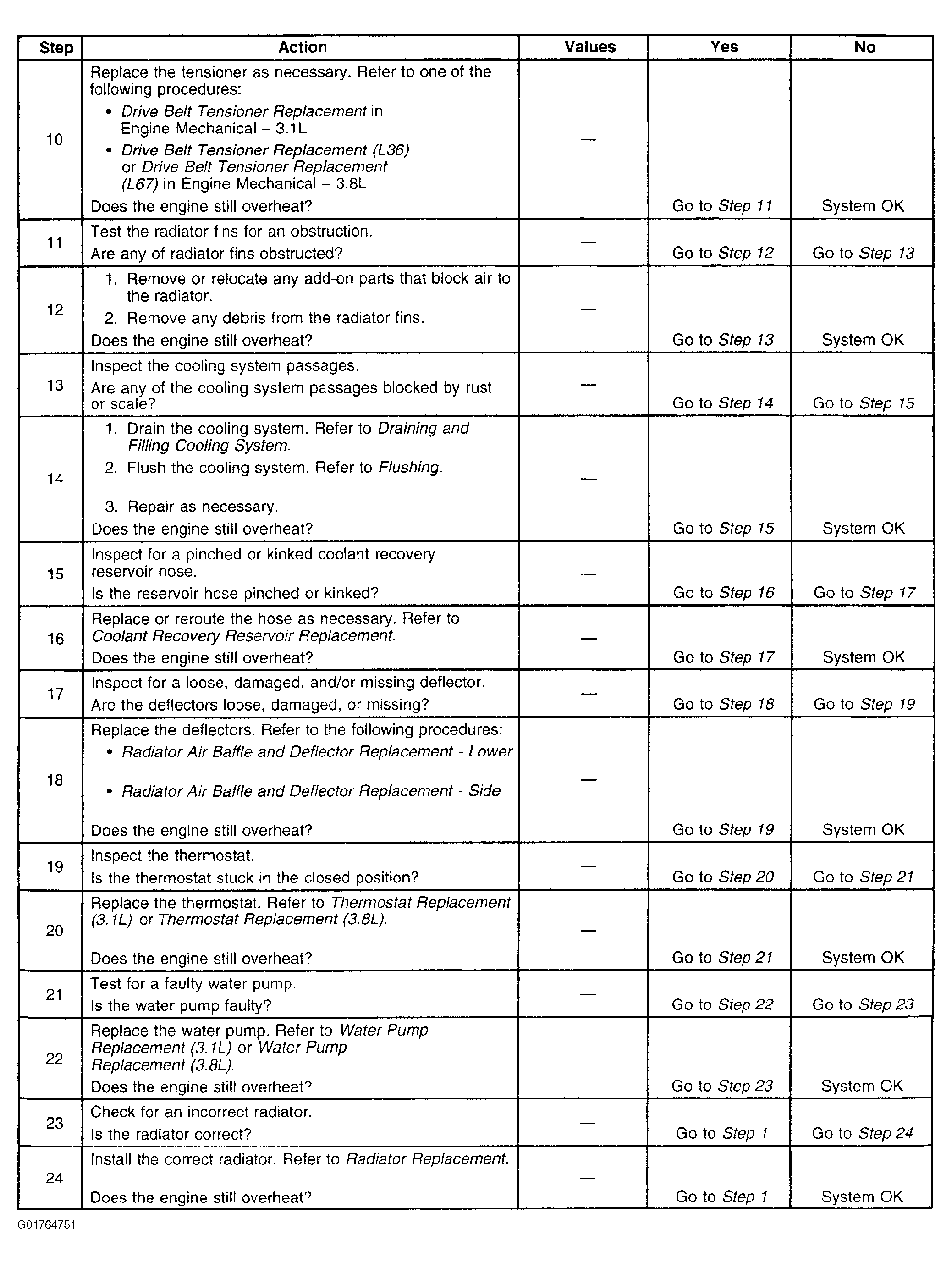

Fig 2: Engine Overheating (2 of 2)
G01764751Courtesy of GENERAL MOTORS CORP.
