Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster actuator to the defroster door arm and snap into place on the HVAC module.
  2. Connect the vacuum line to the actuator.
  3. Remove the hand vacuum pump (2) and reinstall the vacuum line to the recirculation actuator.

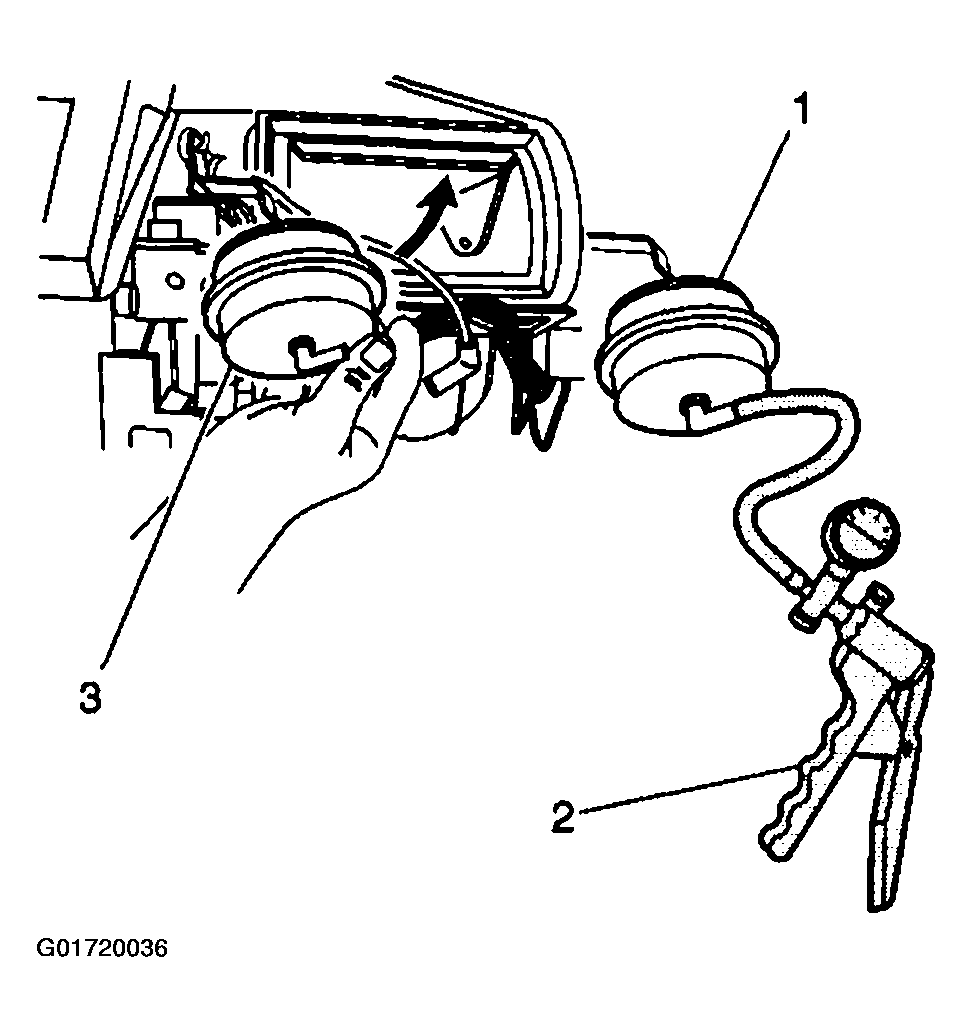

    4. Fig 1: Defroster Actuator, Hand Pump And Recirculation Actuator
    G01720036Courtesy of GENERAL MOTORS CORP.
  4. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - IP in GAUGES AND INSTRUMENT PANELS .
  5. Install the right instrument insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in GAUGES AND INSTRUMENT PANELS
