Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the switch.
  2. Push the switch into the bracket until fully seated.

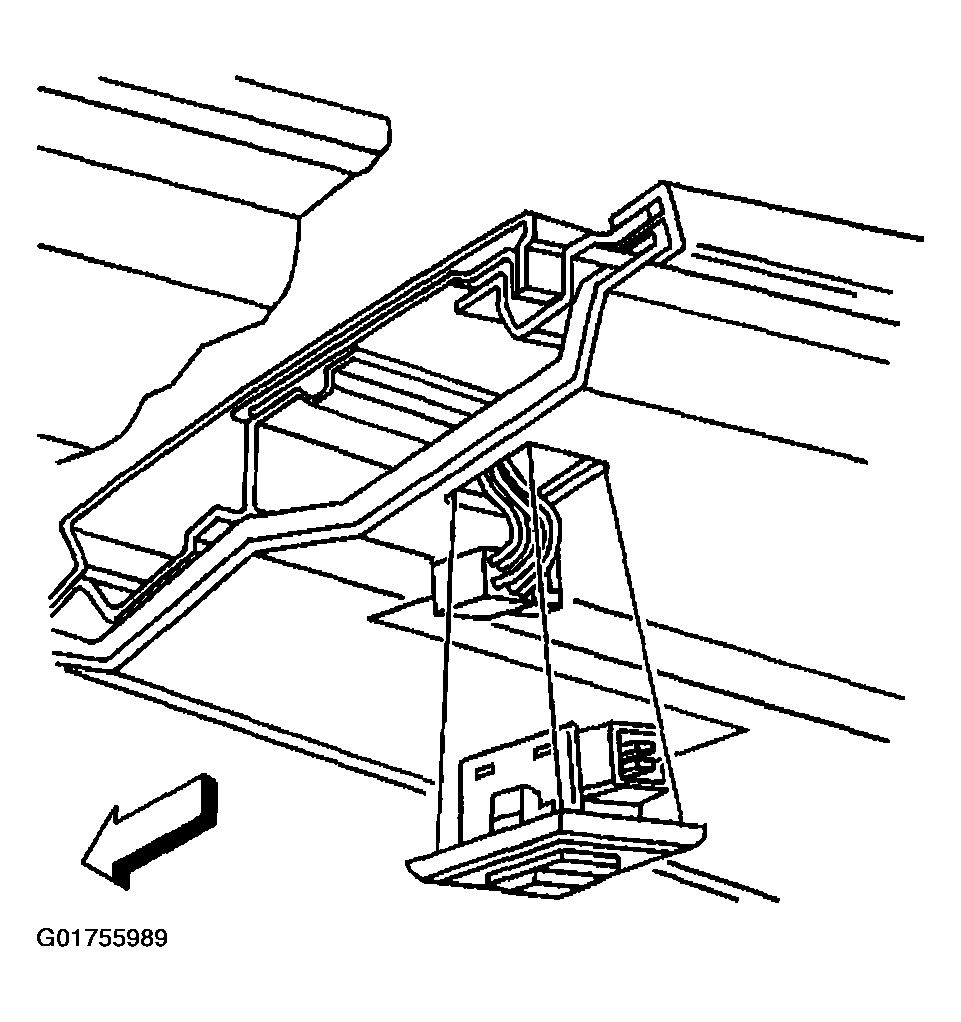

    Fig 1: Identifying Sunroof Switch
    G01755989Courtesy of GENERAL MOTORS CORP.
