Disc Brake System Diagnosis

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix and 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For disc brake system diagnosis, see Fig 1 -Fig 5 .

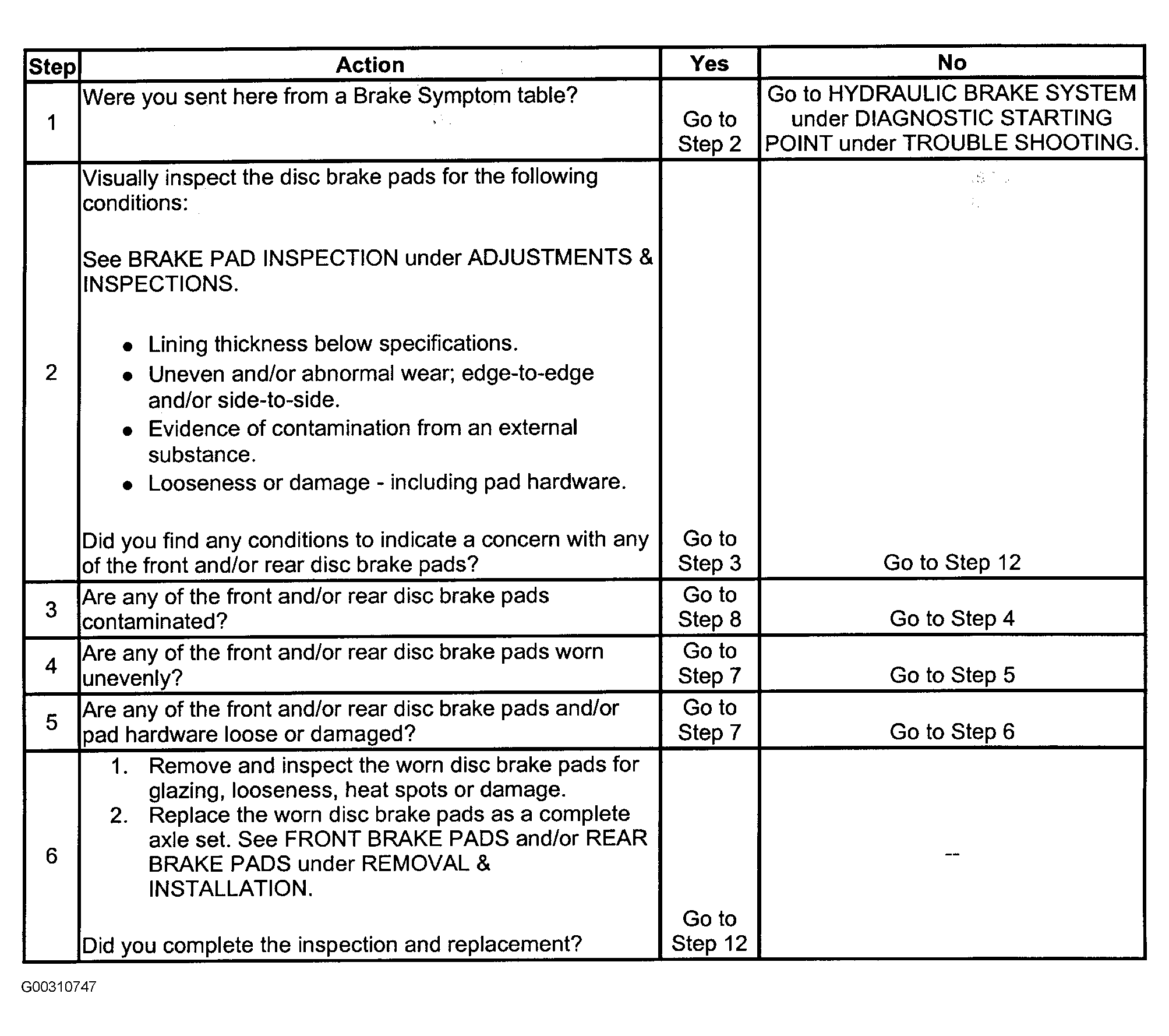

Fig 1: Disc Brake System Diagnosis (1 Of 5)

G00310747

Courtesy of GENERAL MOTORS CORP.

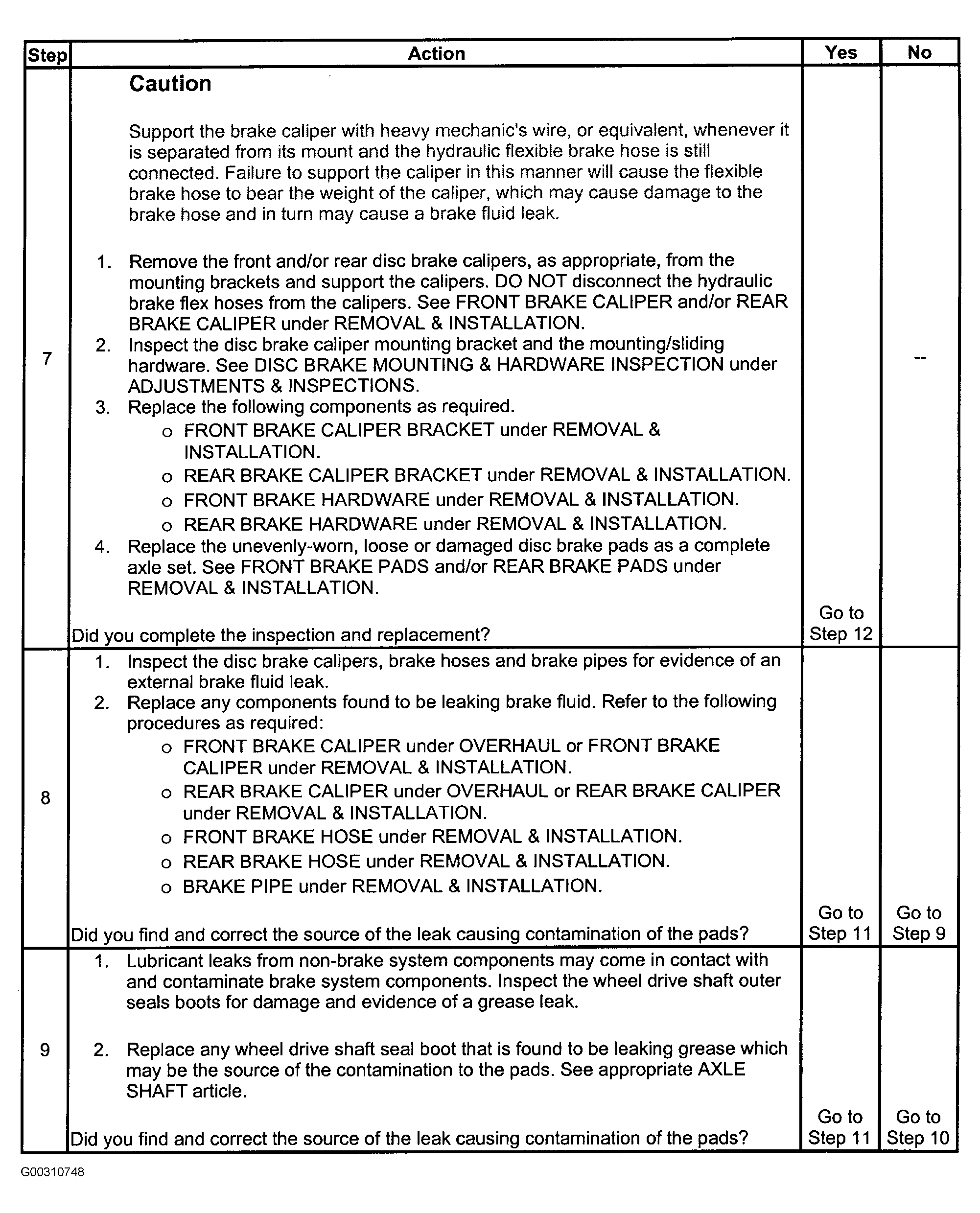

Fig 2: Disc Brake System Diagnosis (2 Of 5)

G00310748

Courtesy of GENERAL MOTORS CORP.

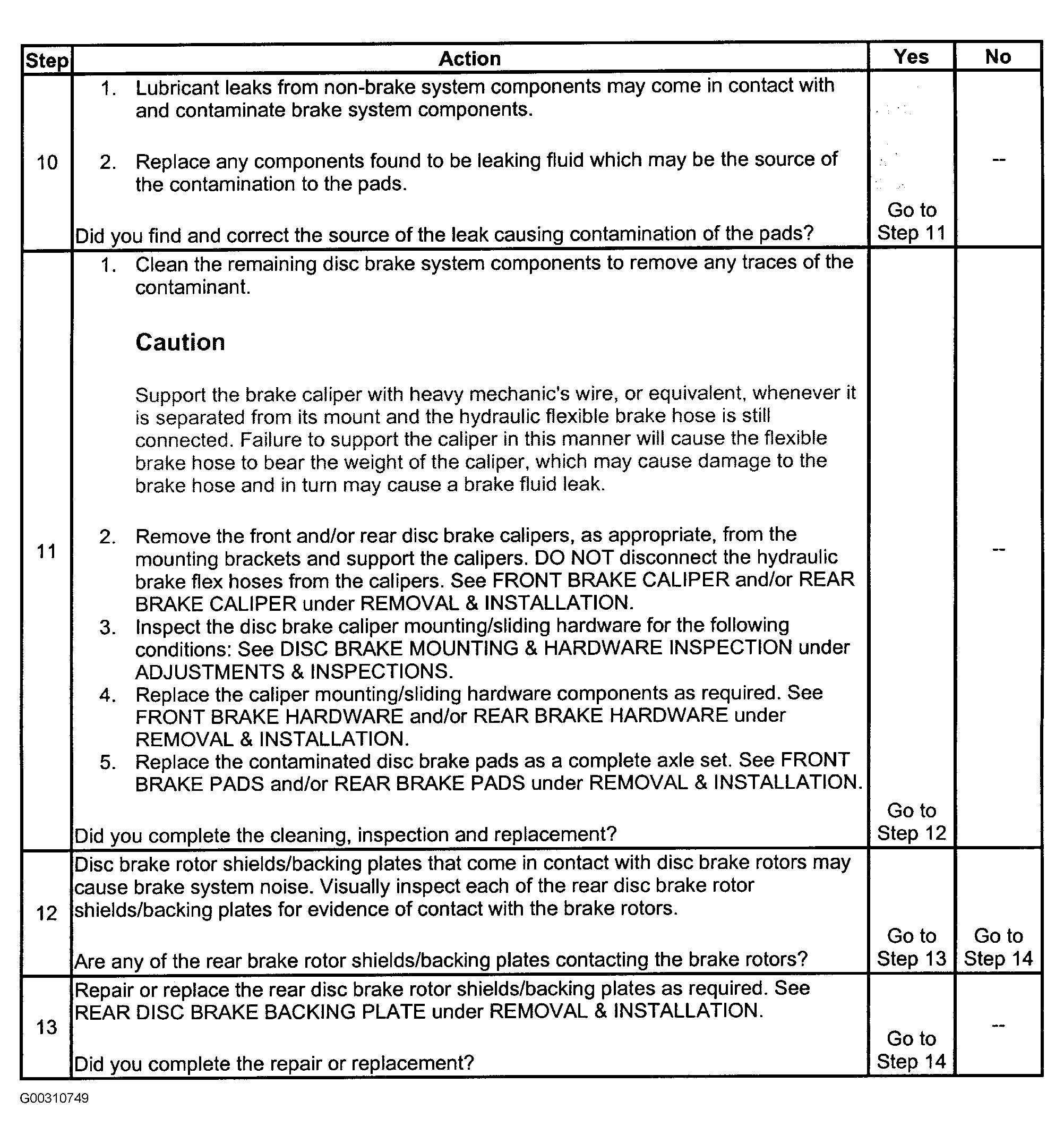

Fig 3: Disc Brake System Diagnosis (3 Of 5)

G00310749

Courtesy of GENERAL MOTORS CORP.

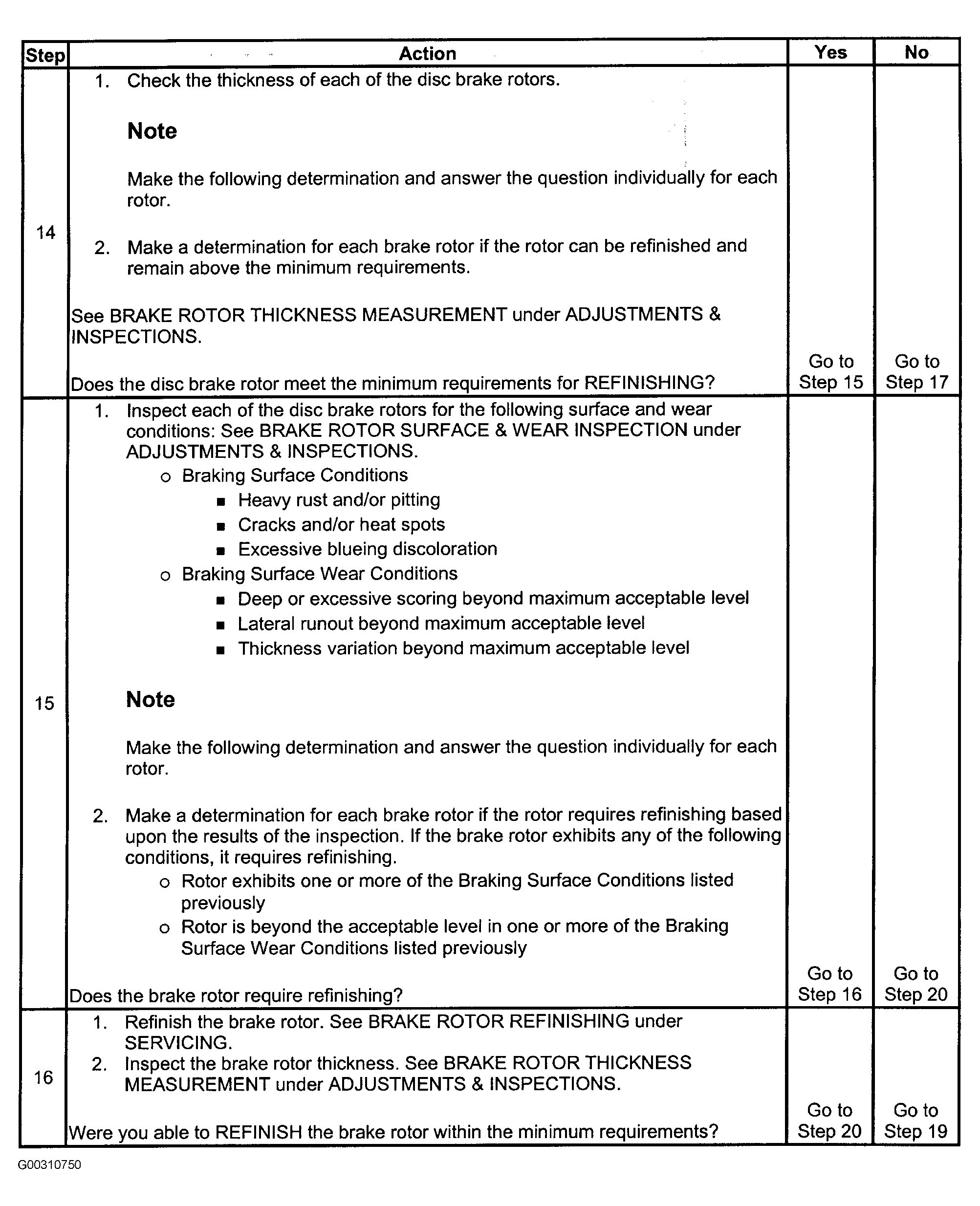

Fig 4: Disc Brake System Diagnosis (4 Of 5)

G00310750

Courtesy of GENERAL MOTORS CORP.

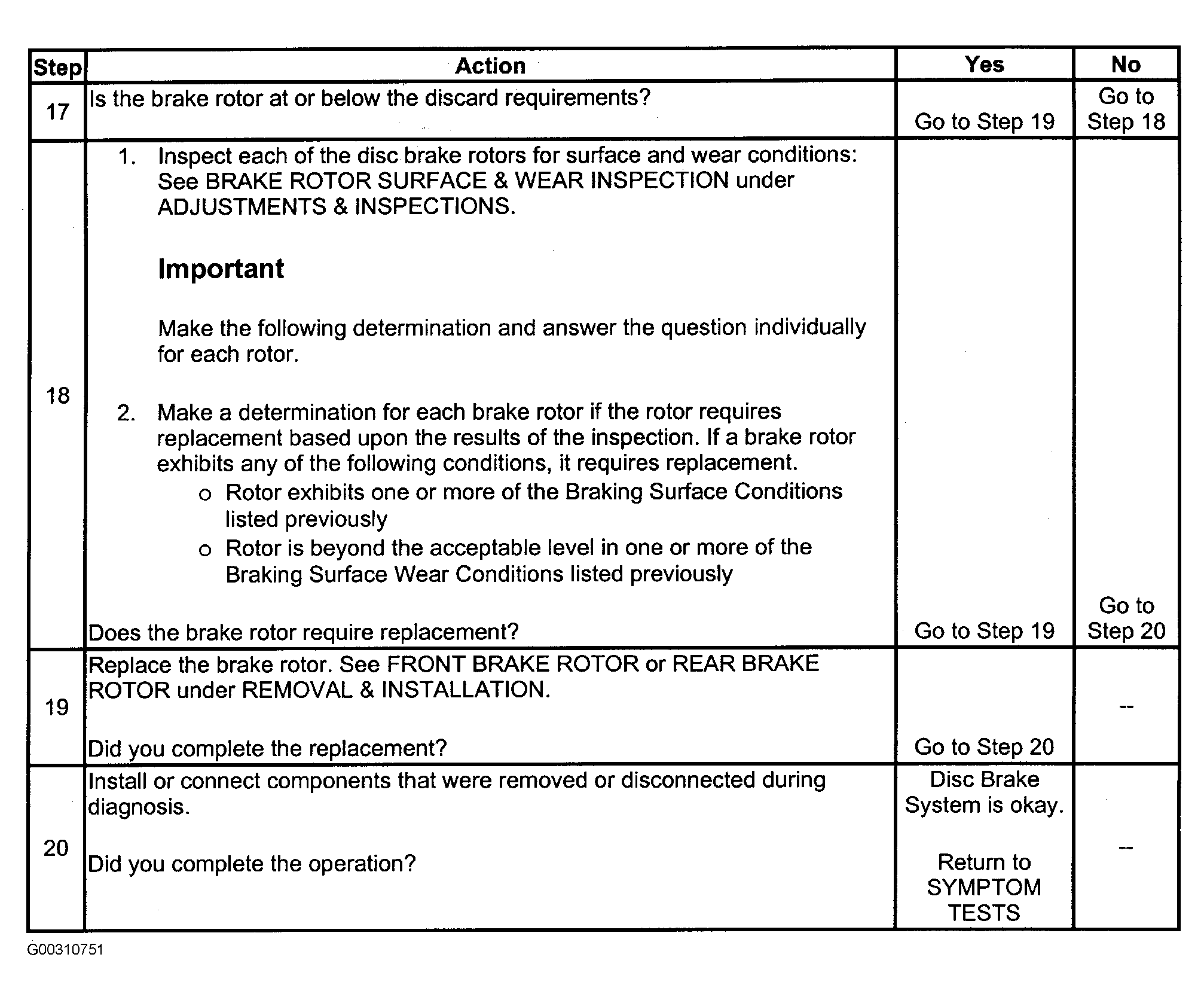

Fig 5: Disc Brake System Diagnosis (5 Of 5)

G00310751

Courtesy of GENERAL MOTORS CORP.
