Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Engine Mechanical >> Engine Cooling Fan >> Connector Identification >> Cooling Fan (Left)

Cooling Fan (Left)

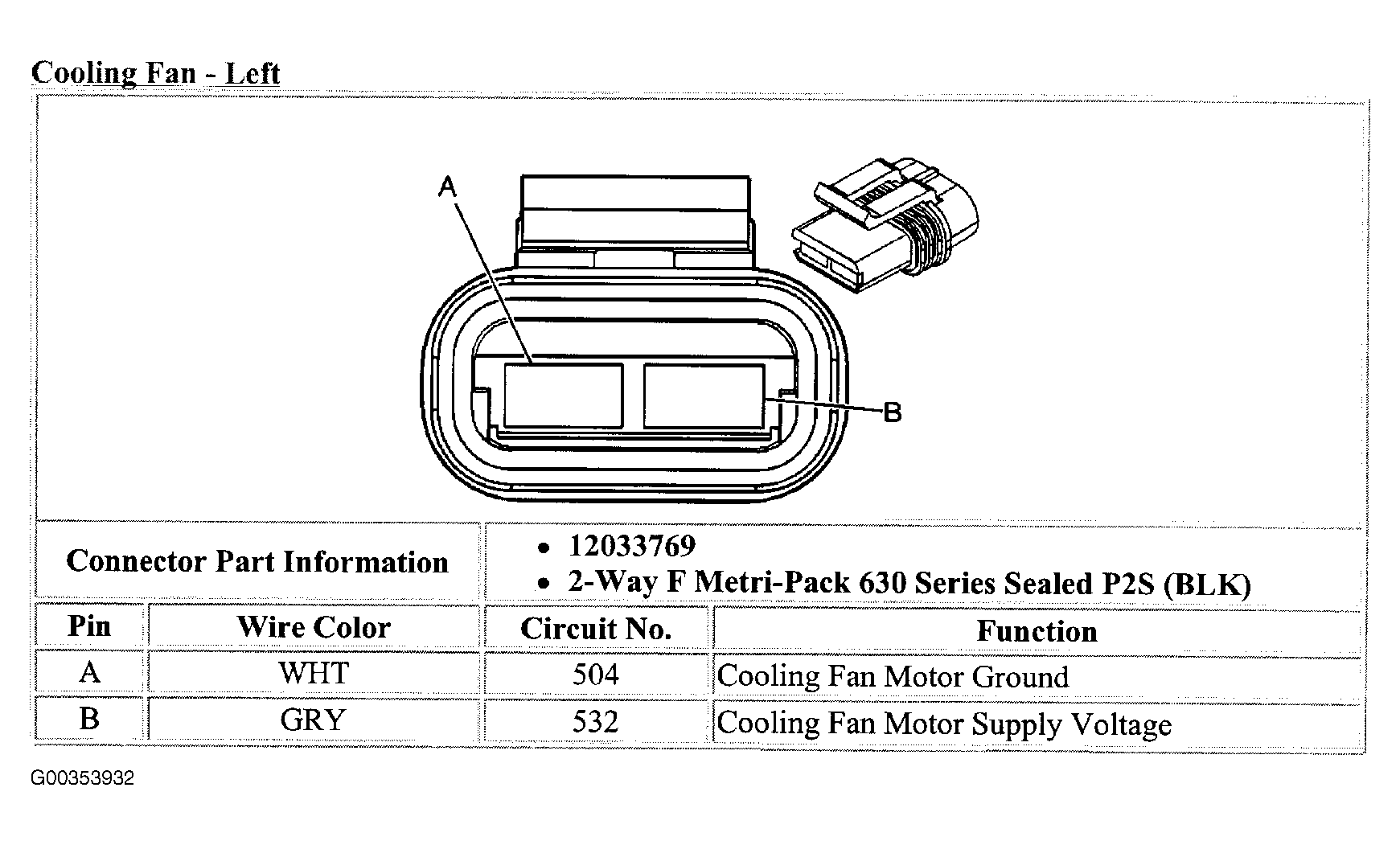

Fig 1: Identifying Cooling Fan Left Connector

G00353932

Courtesy of GENERAL MOTORS CORP.
