Removal Procedure

  1. Remove the front floor console. Refer to TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (AZTEK)  or TRIM PLATE REPLACEMENT - FRONT FLOOR CONSOLE (RENDEZVOUS)  .
  2. Remove the I/P accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK)  .

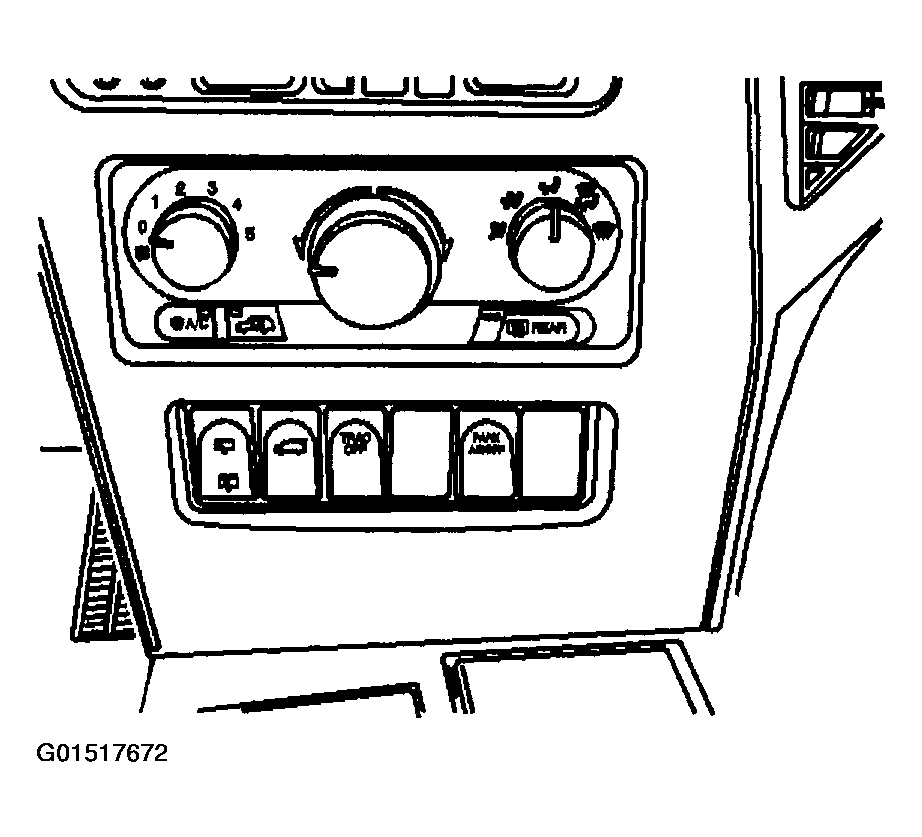

    Fig 1: Locating Instrument Panel Multifunction Switch Assembly
    G01517672Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolts from the switch assembly.
    Fig 2: Removing Bolts From Switch Assembly
    G01517673Courtesy of GENERAL MOTORS CORP.
  4. Remove the electrical connectors from the switch assembly.
  5. Remove the switch assembly.

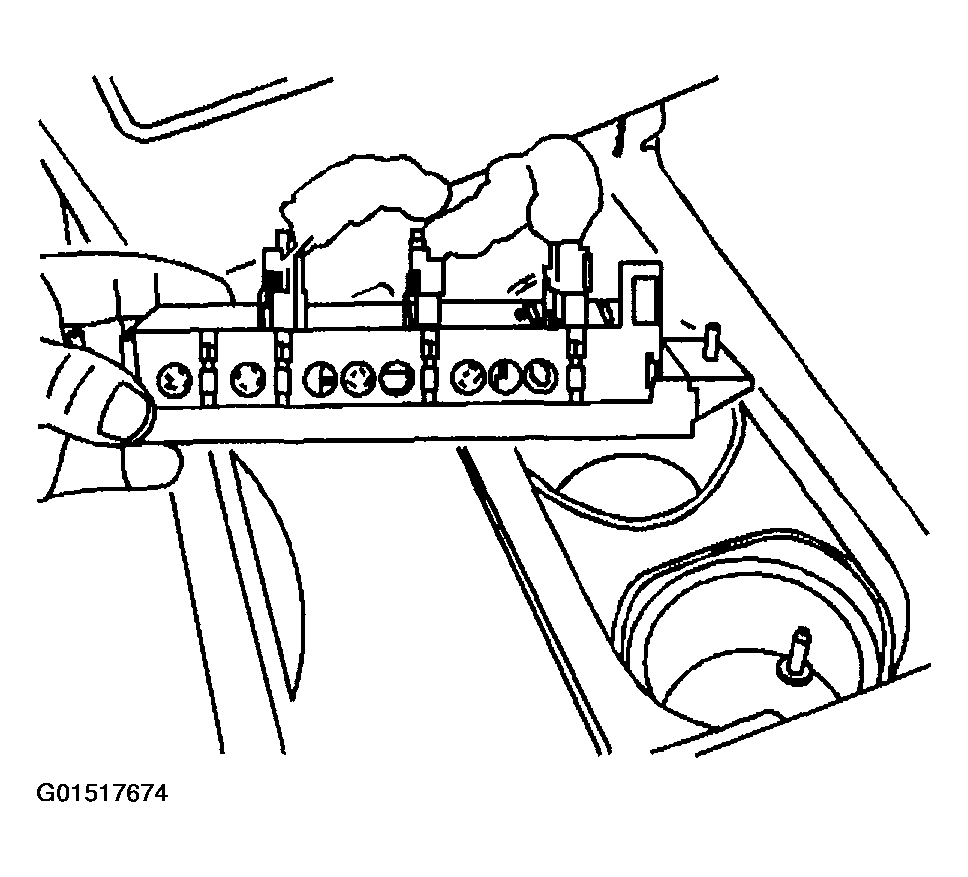

    Fig 3: Removing Switch Assembly
    G01517674Courtesy of GENERAL MOTORS CORP.
