Installation Procedure

  1. Install the BCM. Refer to BODY CONTROL MODULE REPLACEMENT .
  2. Install the console accessory wiring junction block (2) into the console accessory wiring junction block bracket.
  3. Secure the console accessory wiring junction block retainers (1).

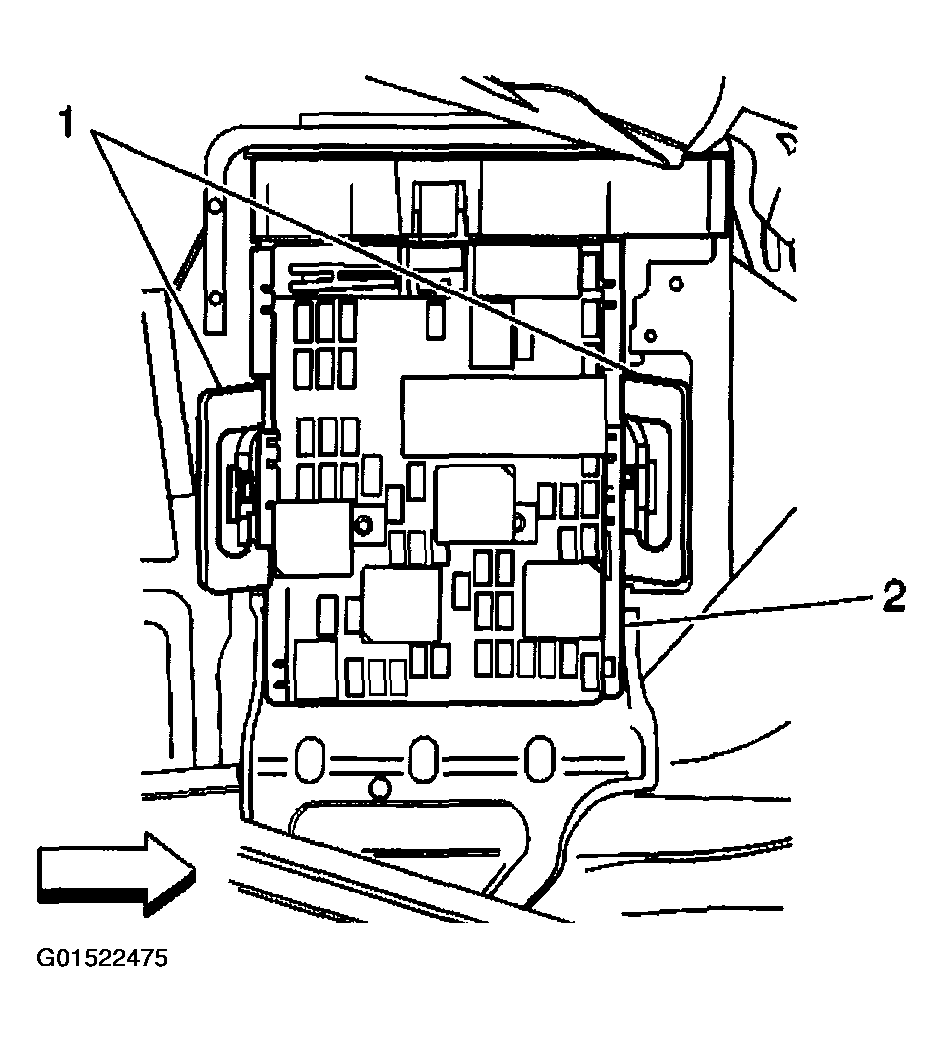

    Fig 1: Installing Junction Block Connector
    G01522475Courtesy of GENERAL MOTORS CORP.
  4. Connect the console accessory wiring junction block electrical connectors (1, 2).
  5. Install the console accessory wiring junction block electrical connectors bolts (1, 2) finger tight until seated.

    Tighten

    Tighten the console accessory wiring junction block electrical connectors bolts to 6 N.m (54 lb in).

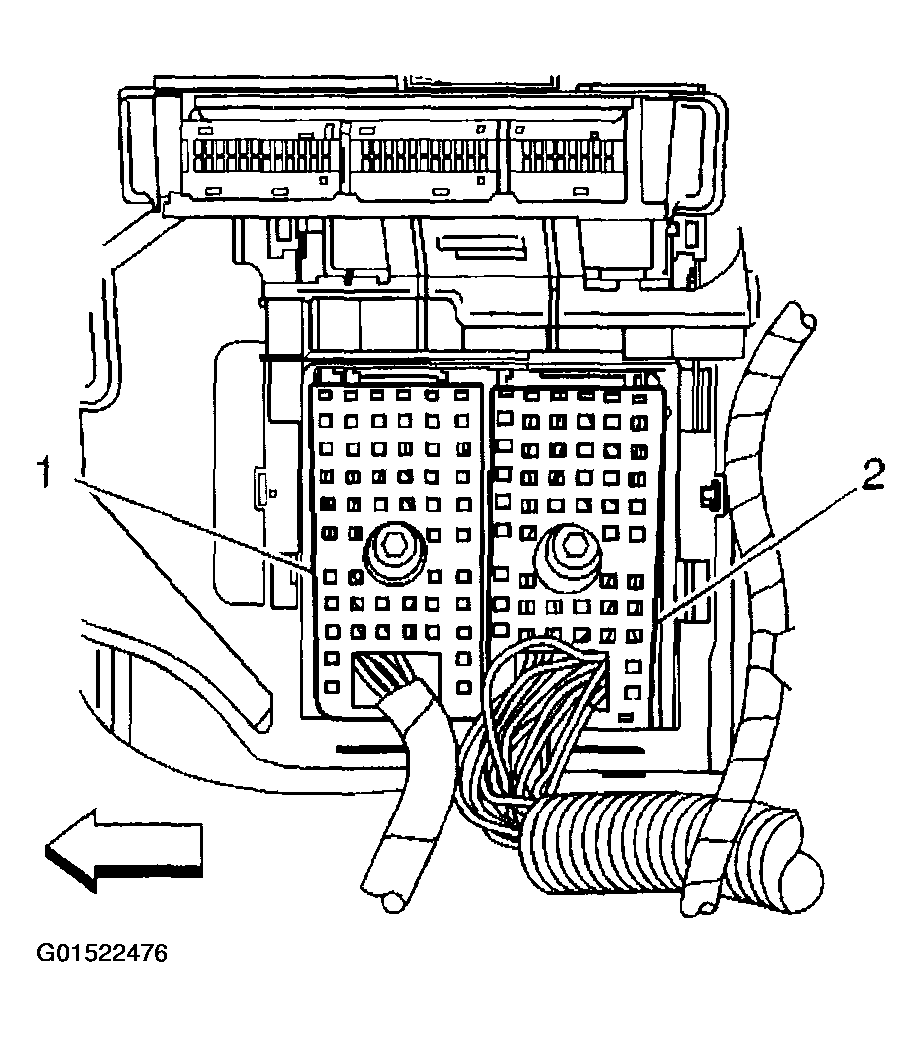

    Fig 2: Installing Electrical Connector Bolts
    G01522476Courtesy of GENERAL MOTORS CORP.
  6. Connect the BCM electrical connectors (1, 2, 3).
  7. Install the front floor console. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (AZTEK) or CONSOLE REPLACEMENT -- FRONT FLOOR (RENDEZVOUS) .
  8. Connect the negative battery cable.

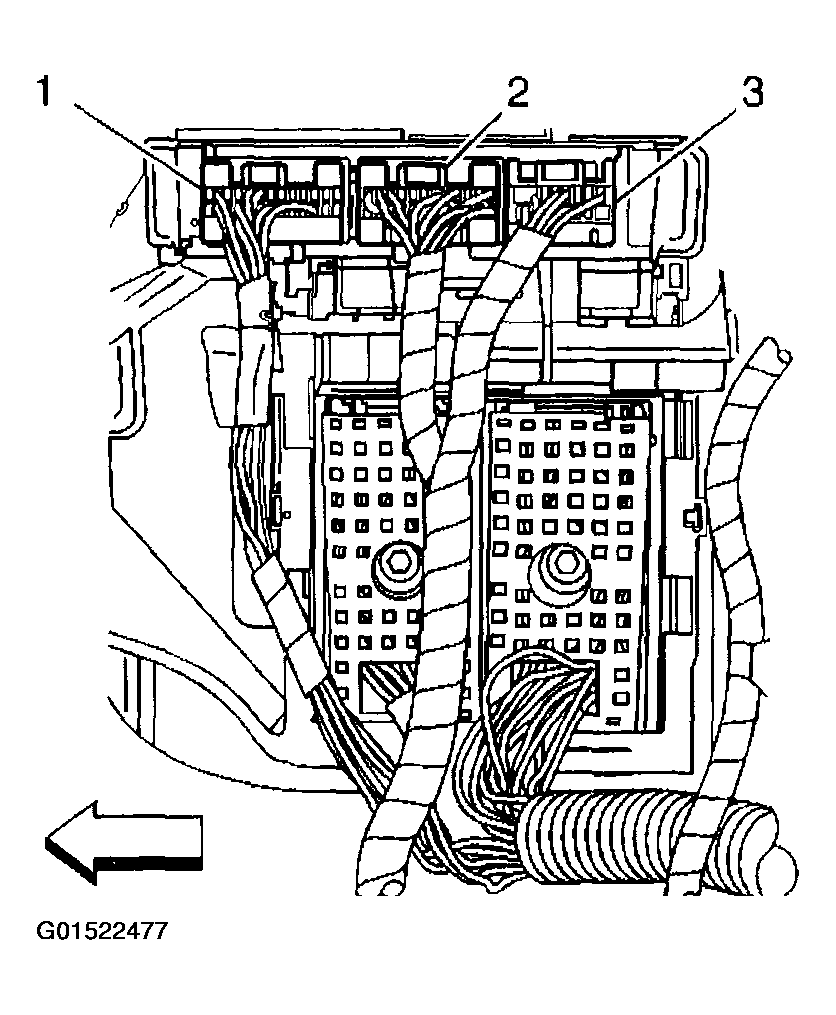

    Fig 3: Connecting BCM Electrical Connector
    G01522477Courtesy of GENERAL MOTORS CORP.
