Engine Electrical Connector End Views

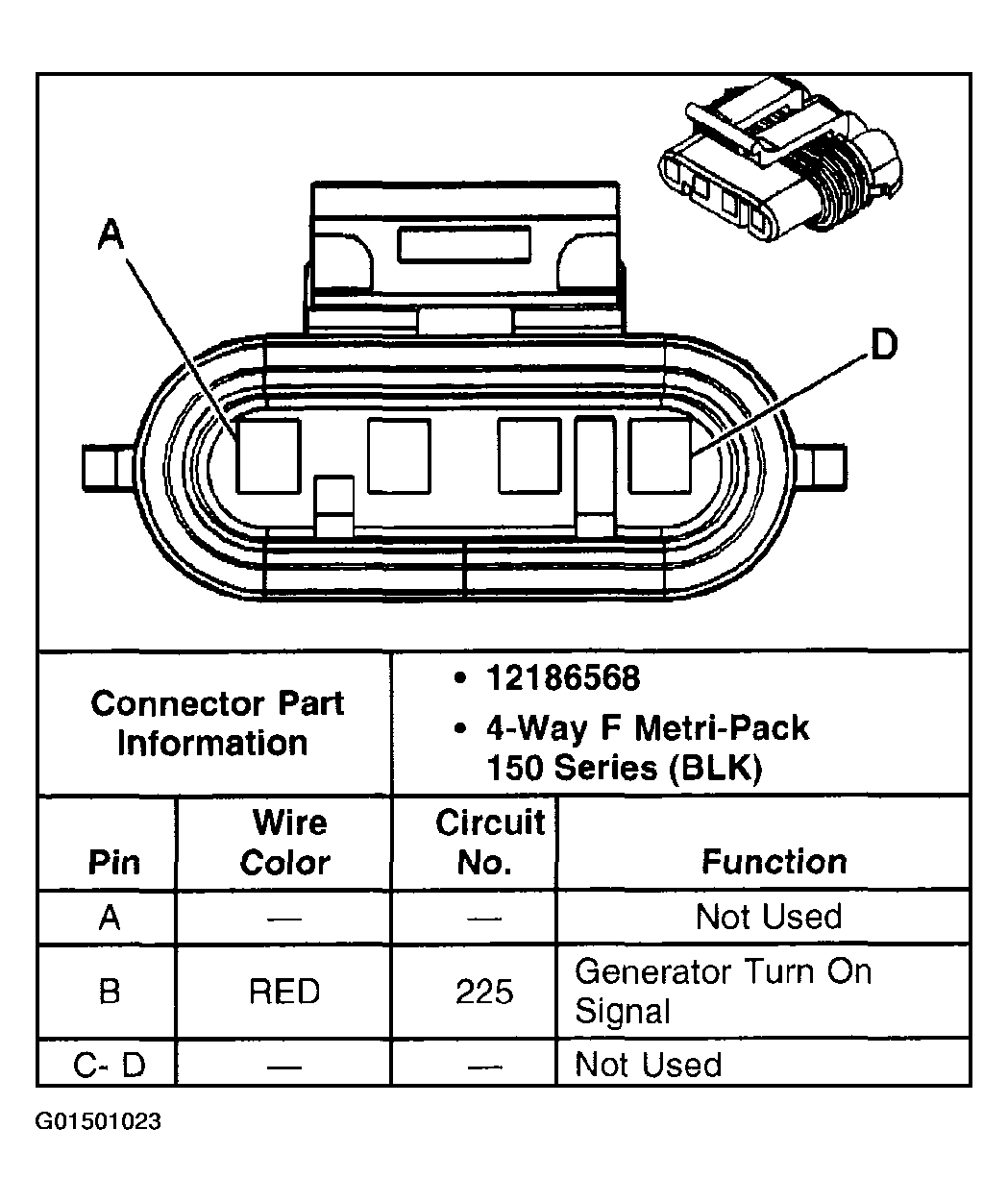

Fig 1: Identifying Generator Harness Connector

G01501023

Courtesy of GENERAL MOTORS CORP.
