Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Stop Lamp Switch Connector End View - C1

Stop Lamp Switch Connector End View - C1

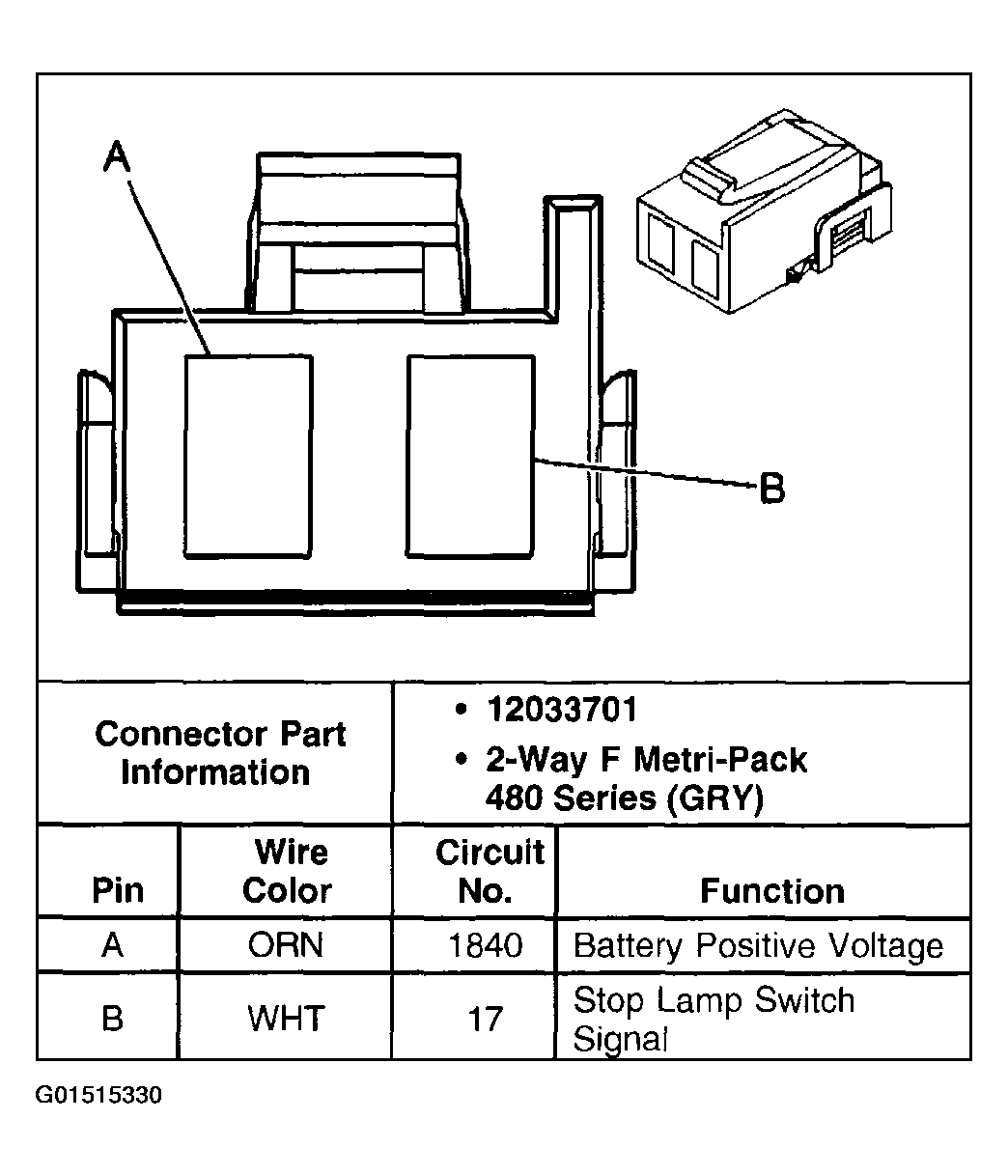

Fig 1: Stop Lamp Switch - C1

G01515330

Courtesy of GENERAL MOTORS CORP.
