Home >> Pontiac >> 2003 >> Aztek AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Right Fog Lamp Connector End View

Right Fog Lamp Connector End View

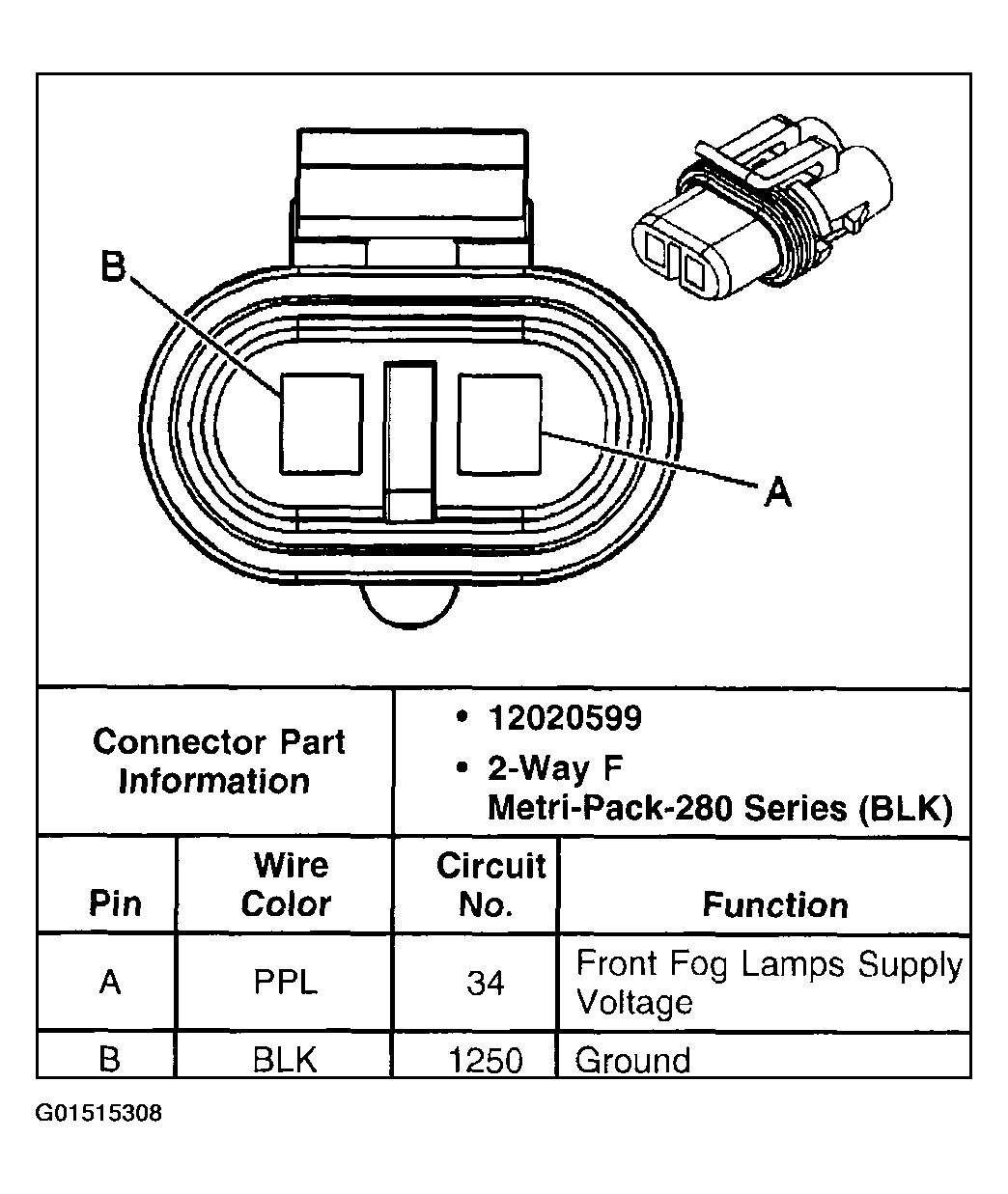

Fig 1: Right Fog Lamp

G01515308

Courtesy of GENERAL MOTORS CORP.
