Rear Parking Assist (RPA) Module Connector End View

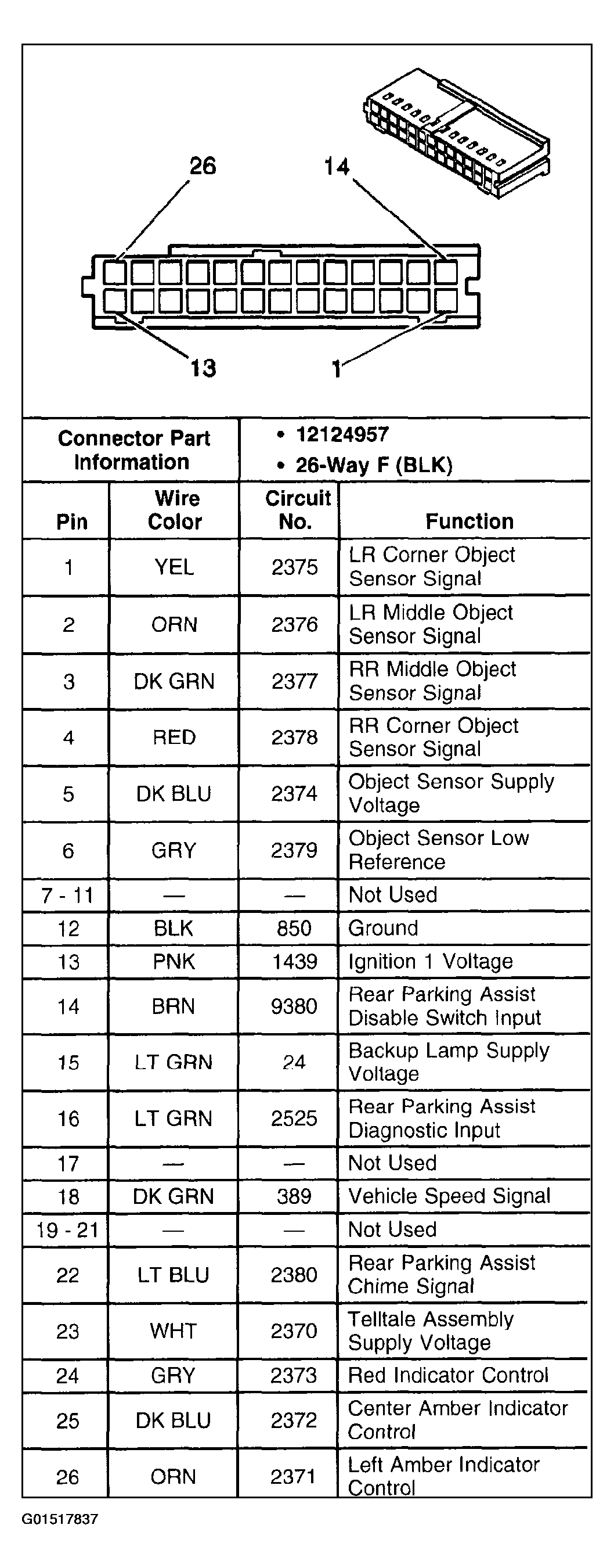

Fig 1: Rear Parking Assist (RPA) Module

G01517837

Courtesy of GENERAL MOTORS CORP.
