Input Speed Sensor Connector End View - Wiring Harness Side

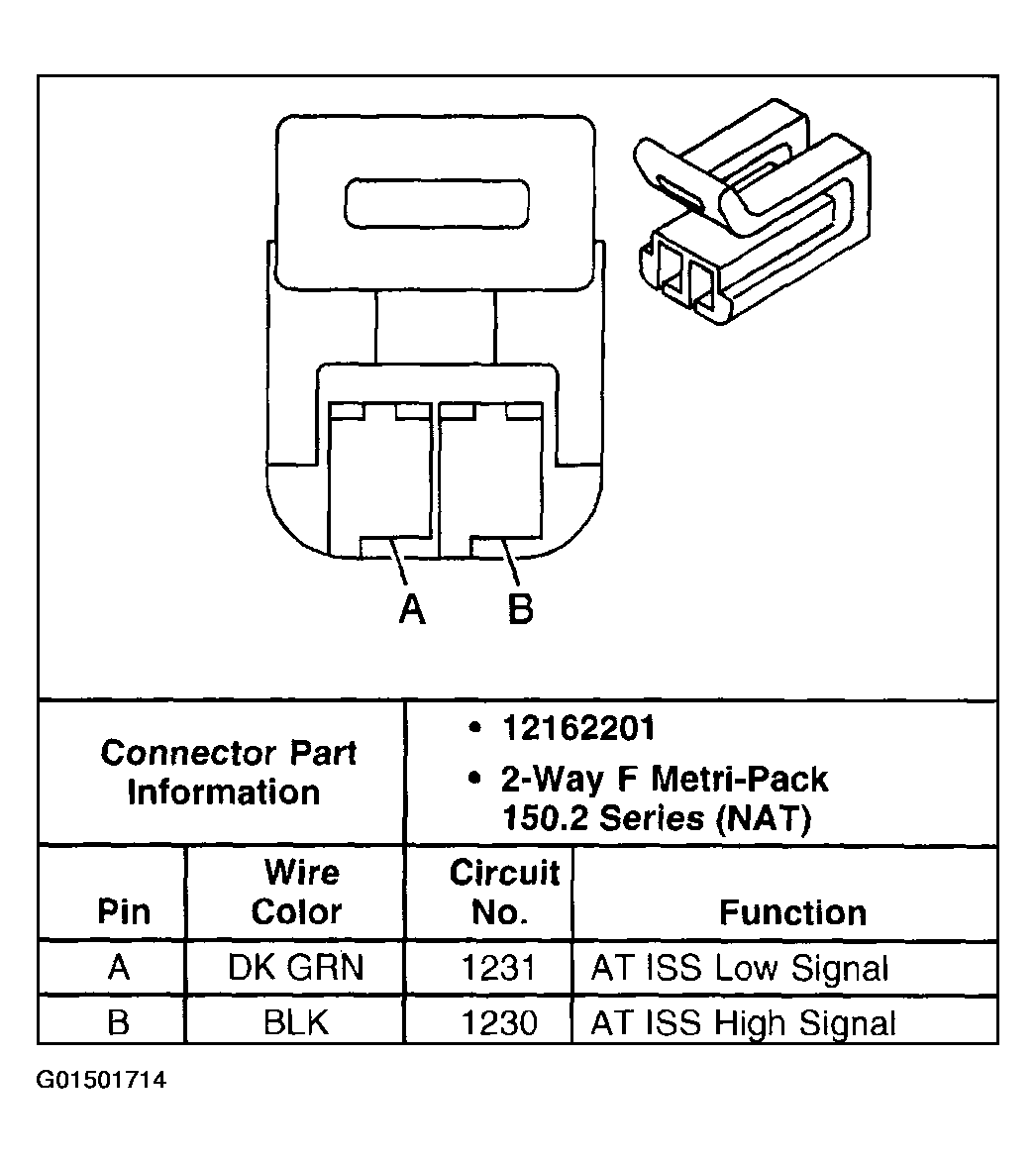

Fig 1: Input Speed Sensor Connector - Wiring Harness Side

G01501714

Courtesy of GENERAL MOTORS CORP.
