In-Line Connector End View C155 - Buick

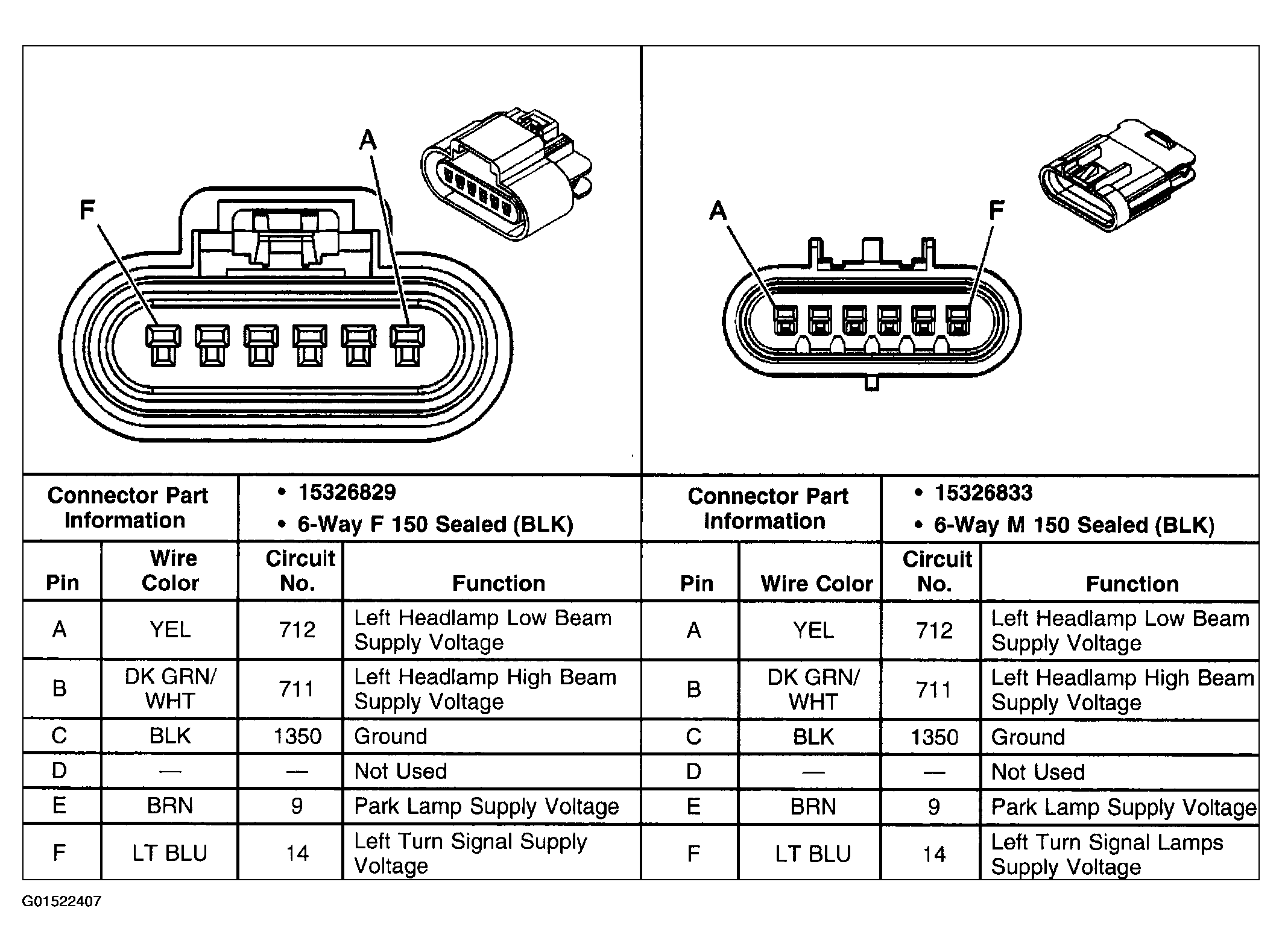

Fig 1: In-Line Connector C155 - Buick

G01522407

Courtesy of GENERAL MOTORS CORP.
