In-Line Connector End View C151 - Pontiac

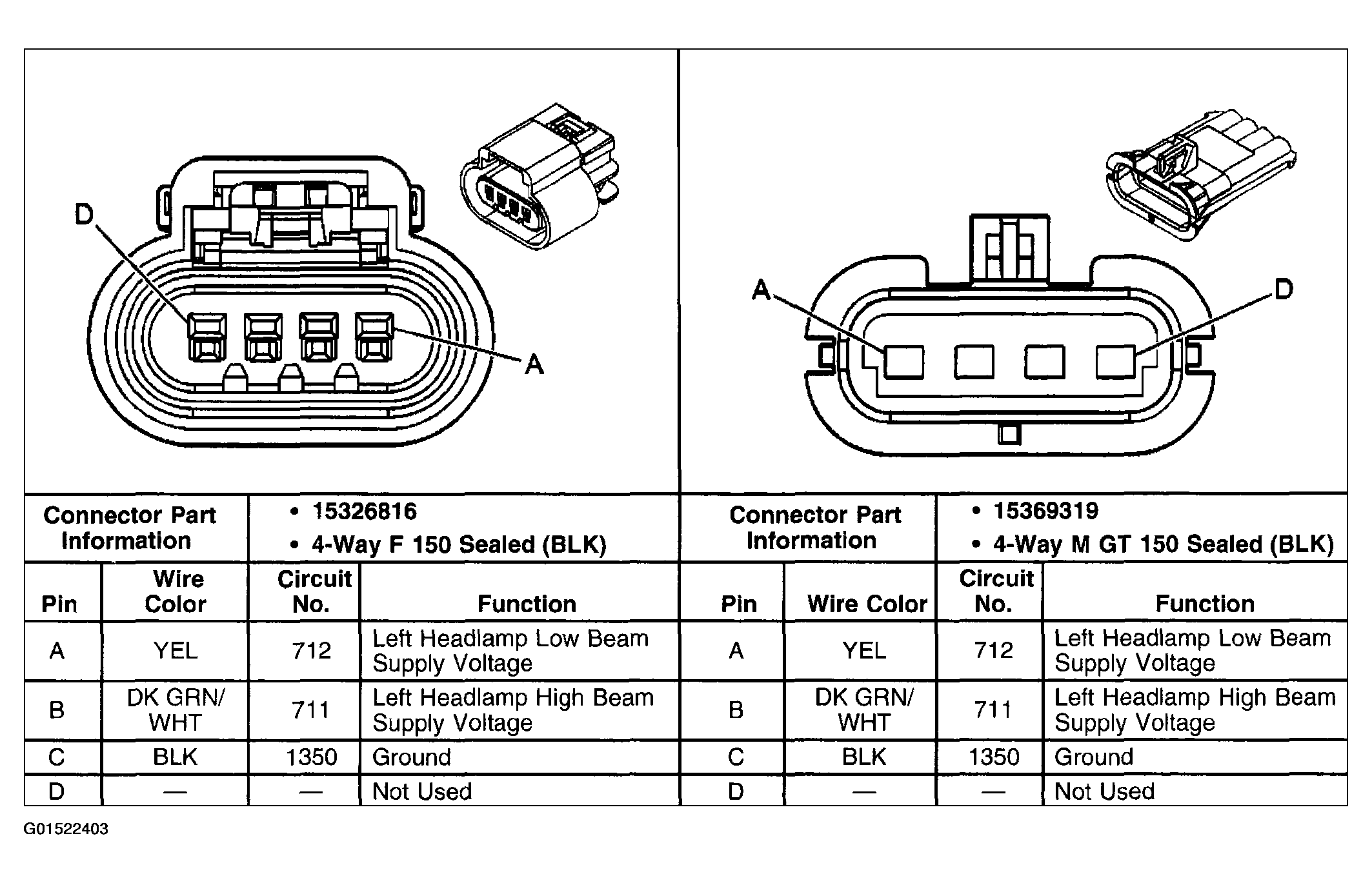

Fig 1: In-Line Connector C151 - Pontiac

G01522403

Courtesy of GENERAL MOTORS CORP.
