In-Line Connector End View C121 - Buick

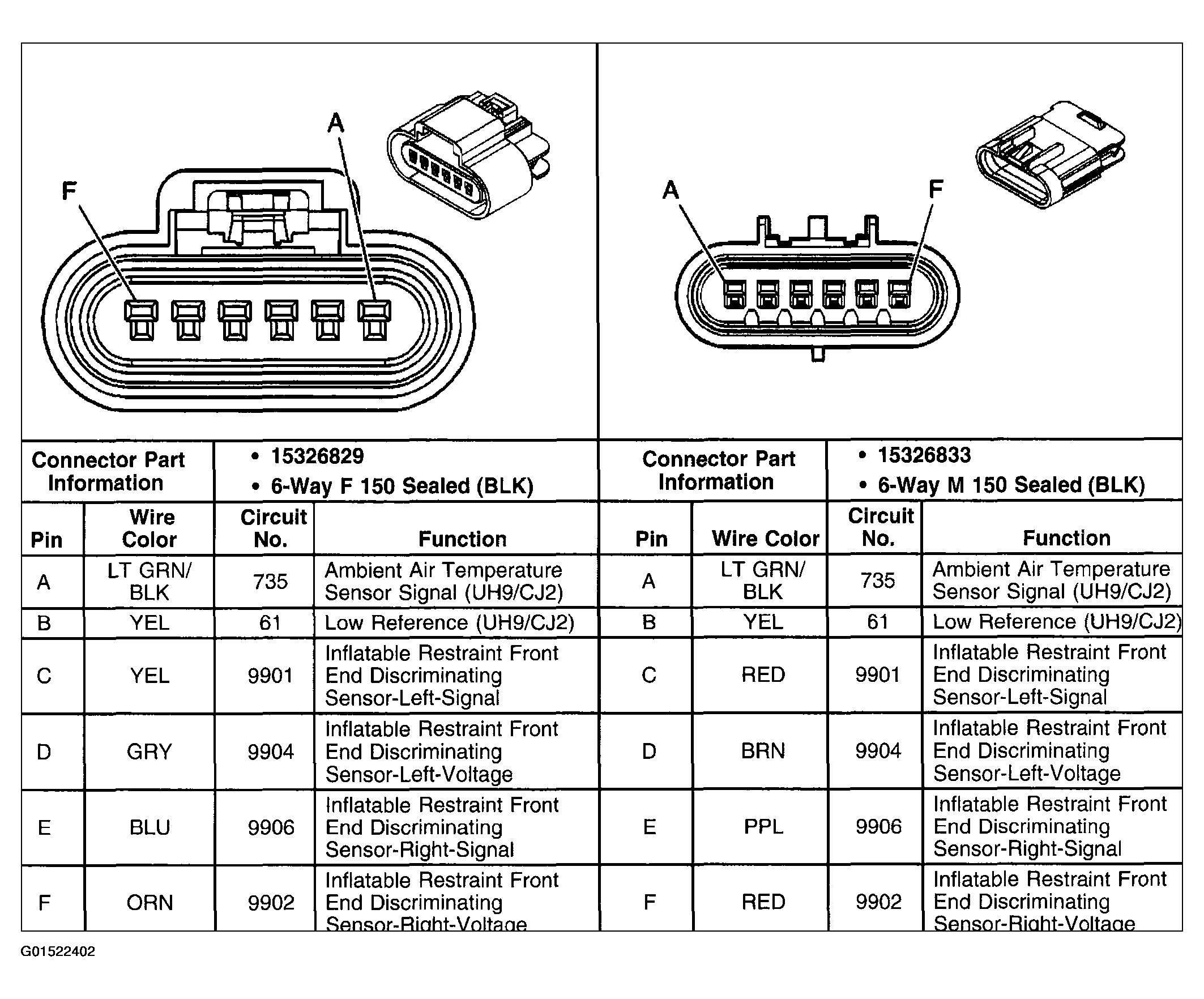

Fig 1: In-Line Connector C121 - Buick

G01522402

Courtesy of GENERAL MOTORS CORP.
