I/P Switch Assembly Connector End View C4 (Buick)

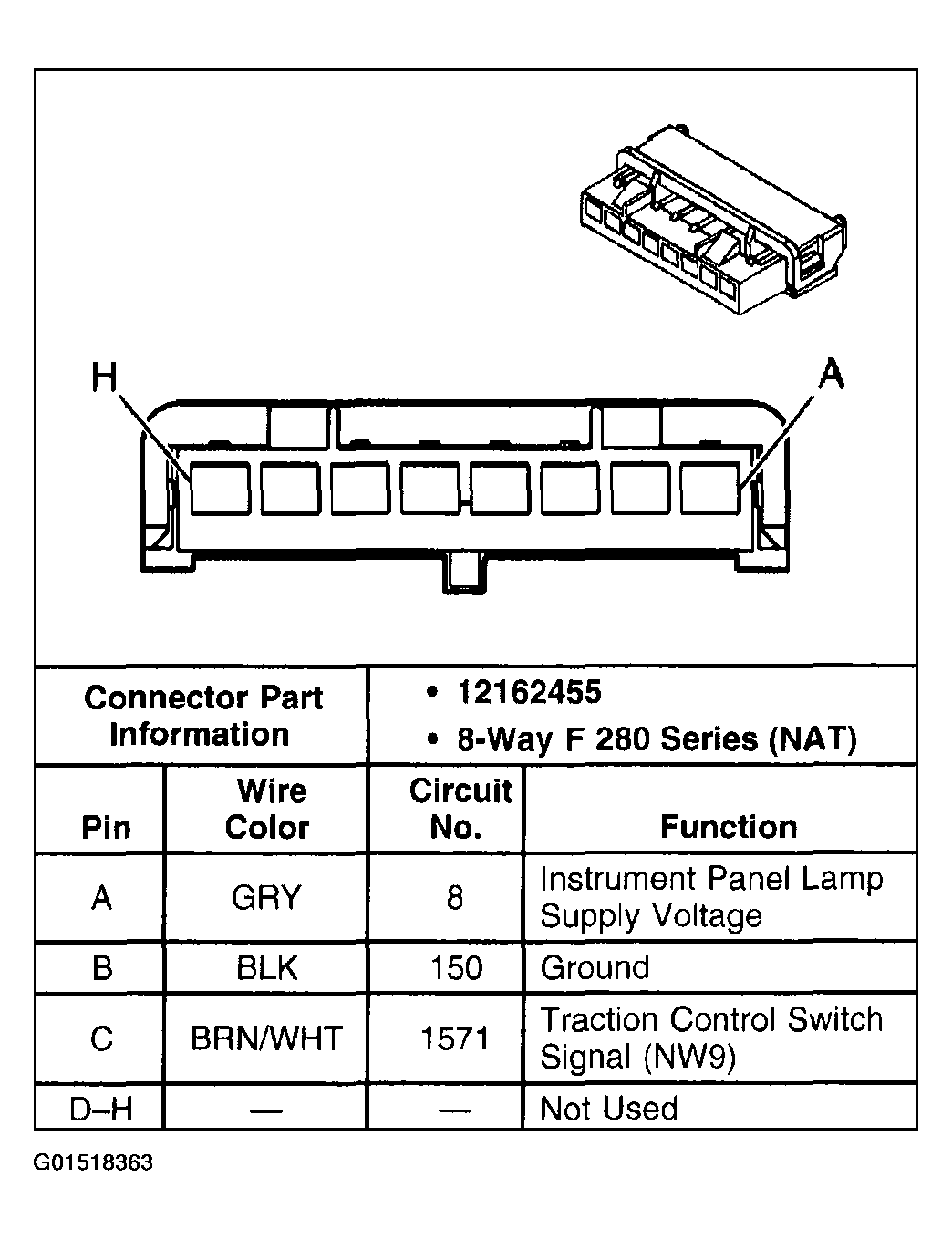

Fig 1: I/P Switch Assembly C4 (Buick)

G01518363

Courtesy of GENERAL MOTORS CORP.
