I/P Switch Assembly Connector End View C3 (Buick)

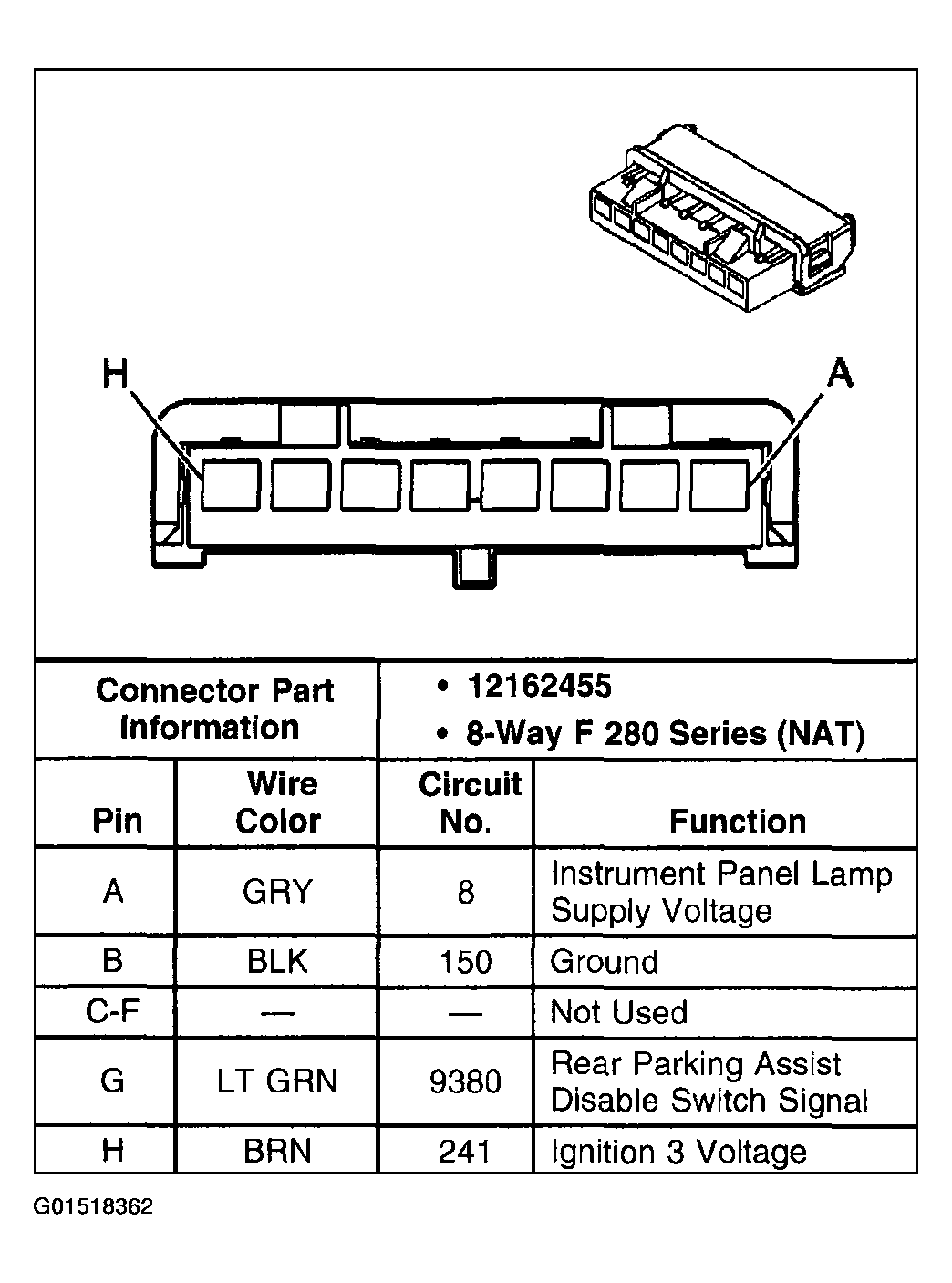

Fig 1: I/P Switch Assembly C3 (Buick)

G01518362

Courtesy of GENERAL MOTORS CORP.
