Head Up Display (HUD) Switch Connector End View

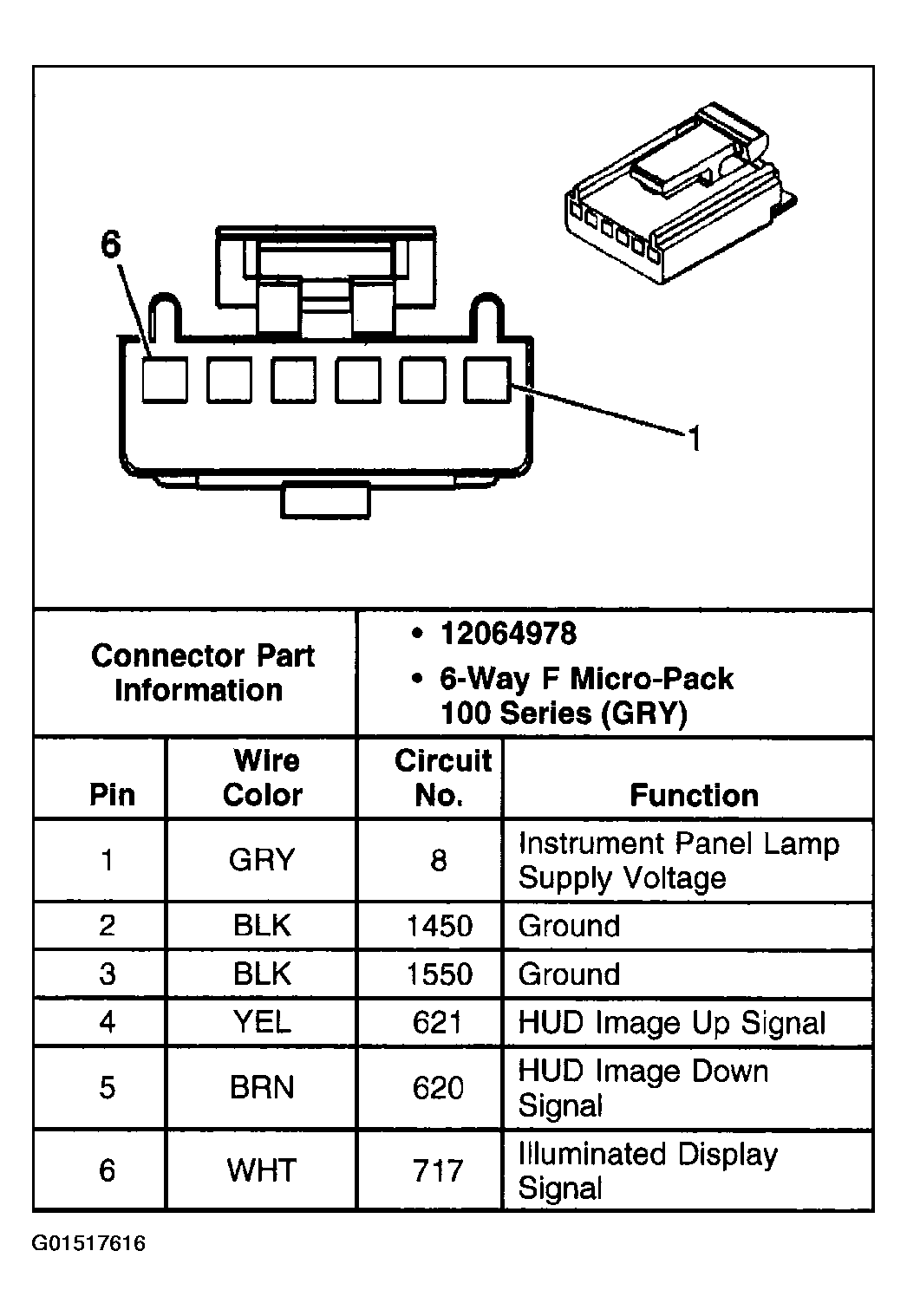

Fig 1: Head Up Display (HUD) Switch

G01517616

Courtesy of GENERAL MOTORS CORP.
