Driver Information Center (DIC) Switch Connector End View

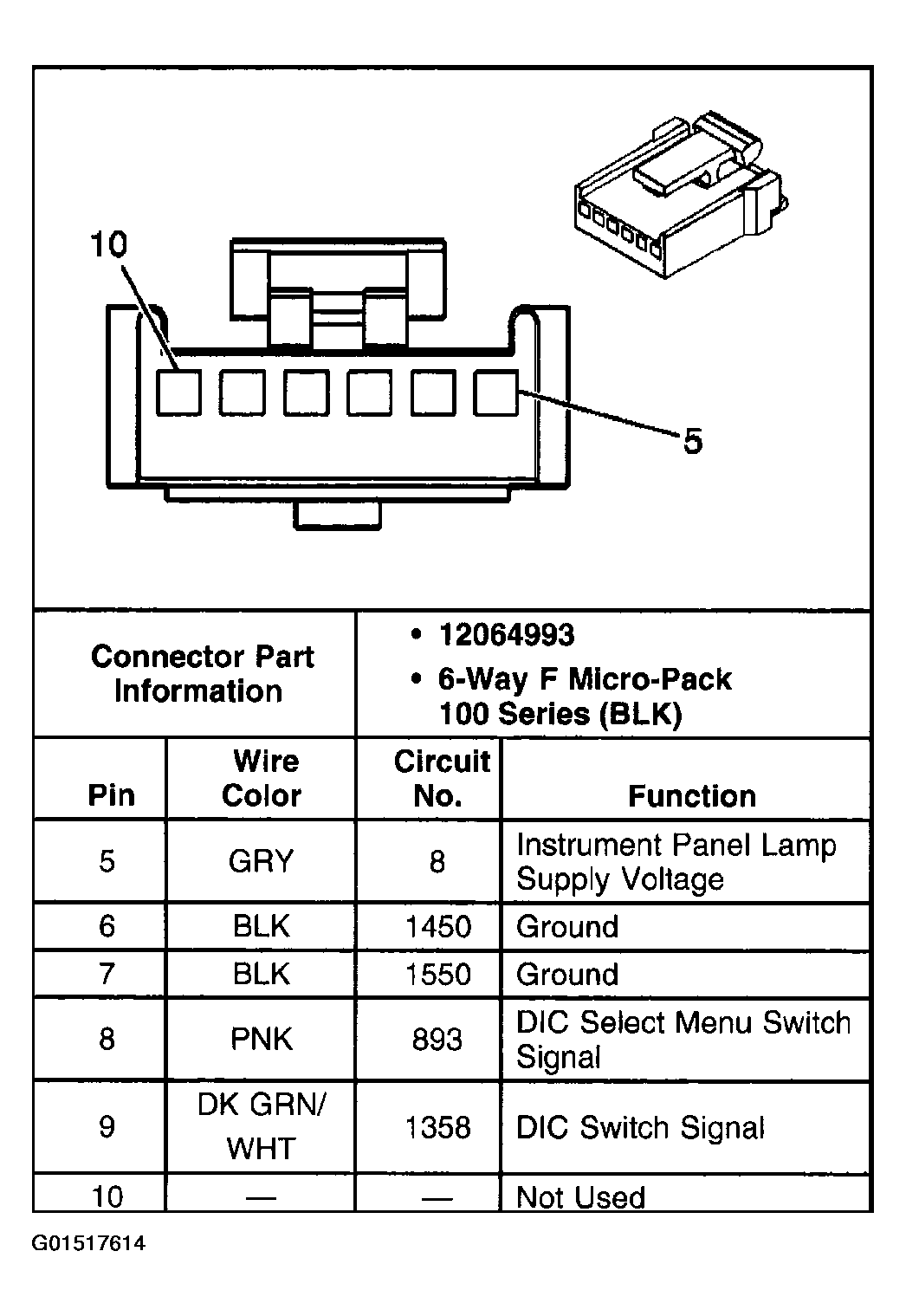

Fig 1: Driver Information Center (DIC) Switch (UH9)

G01517614

Courtesy of GENERAL MOTORS CORP.
