Cooling Fan Right Connector End View

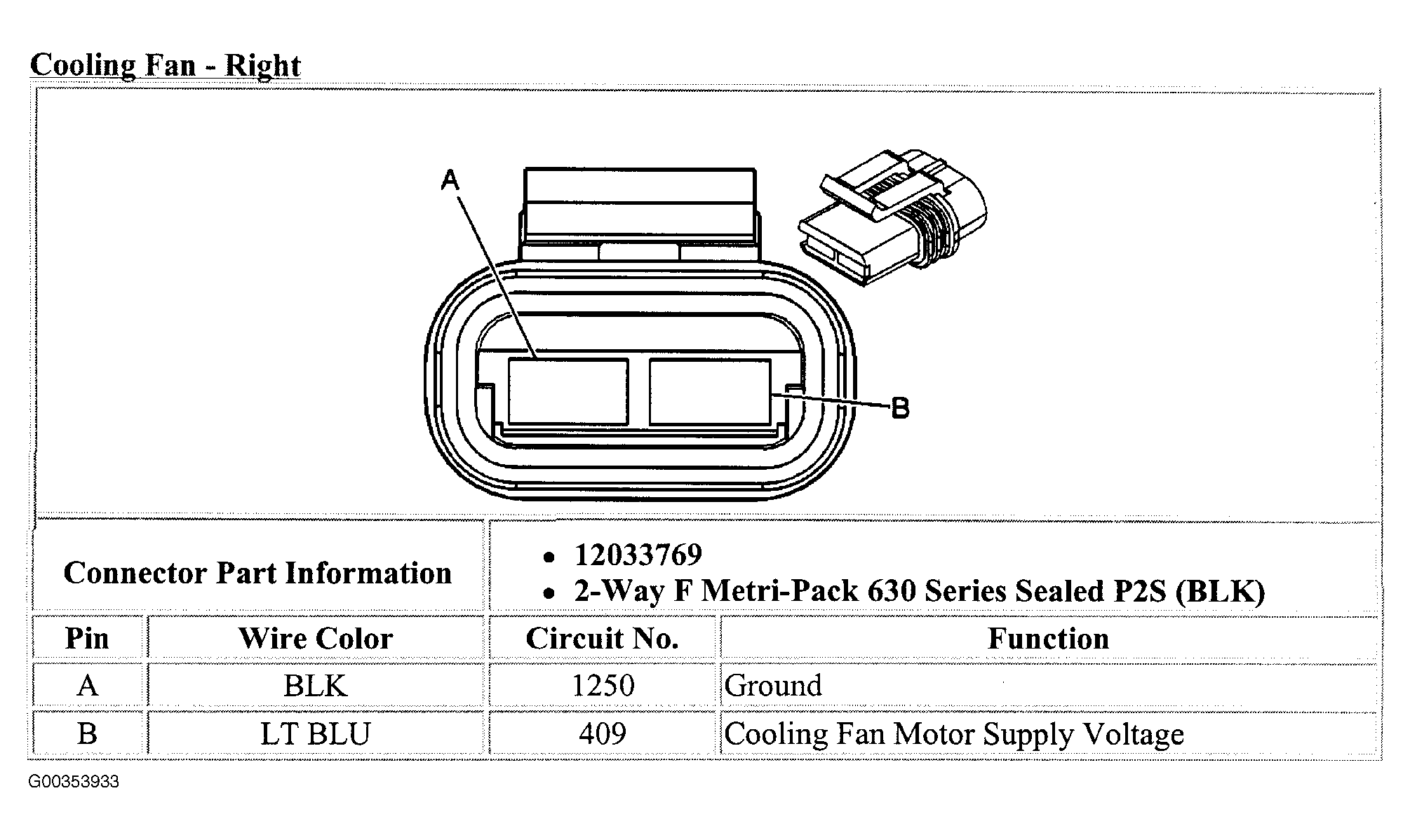

Fig 1: Cooling Fan Right Connector

G00353933

Courtesy of GENERAL MOTORS CORP.
