A/T In-Line 20-Way Connector End View - Engine Side

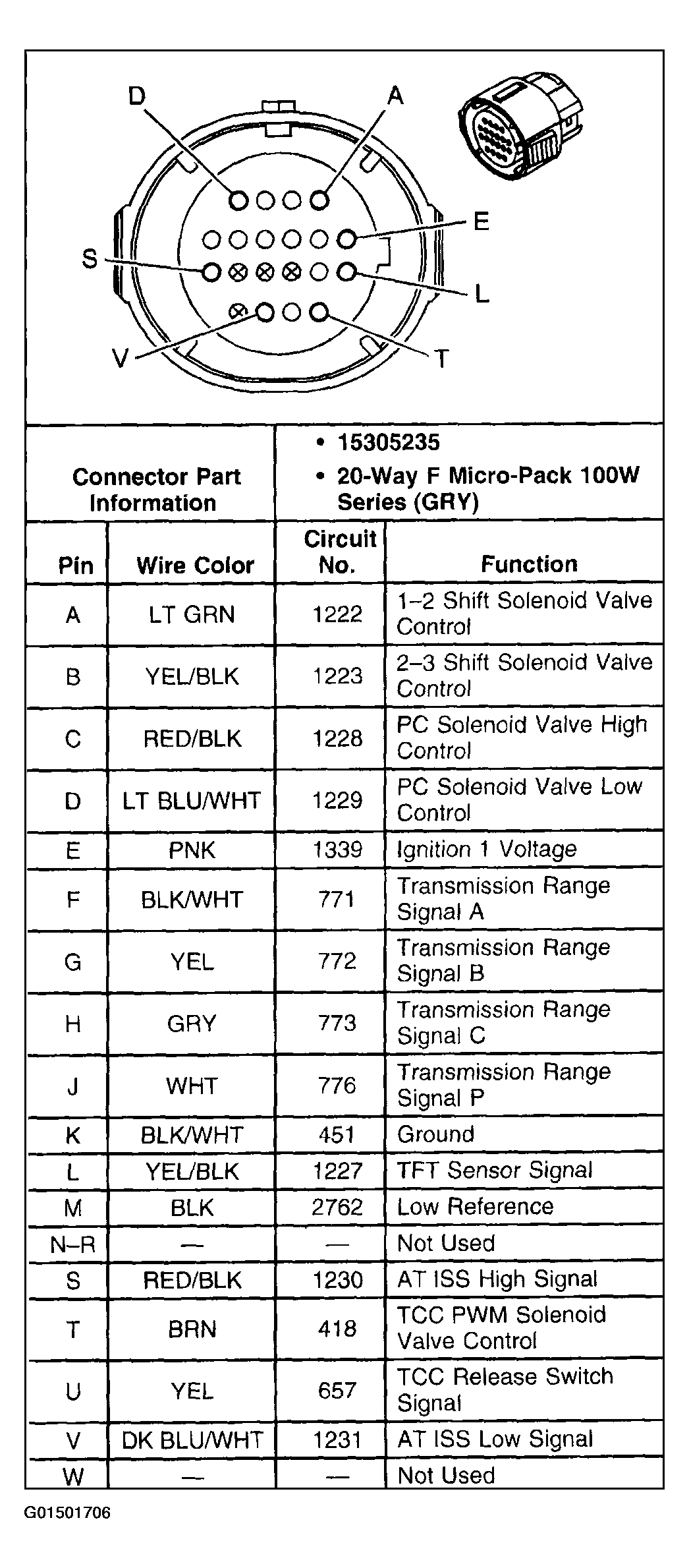

Fig 1: A/T In-Line 20-Way Connector - Engine Side

G01501706

Courtesy of GENERAL MOTORS CORP.
