Schematic and Routing Diagrams

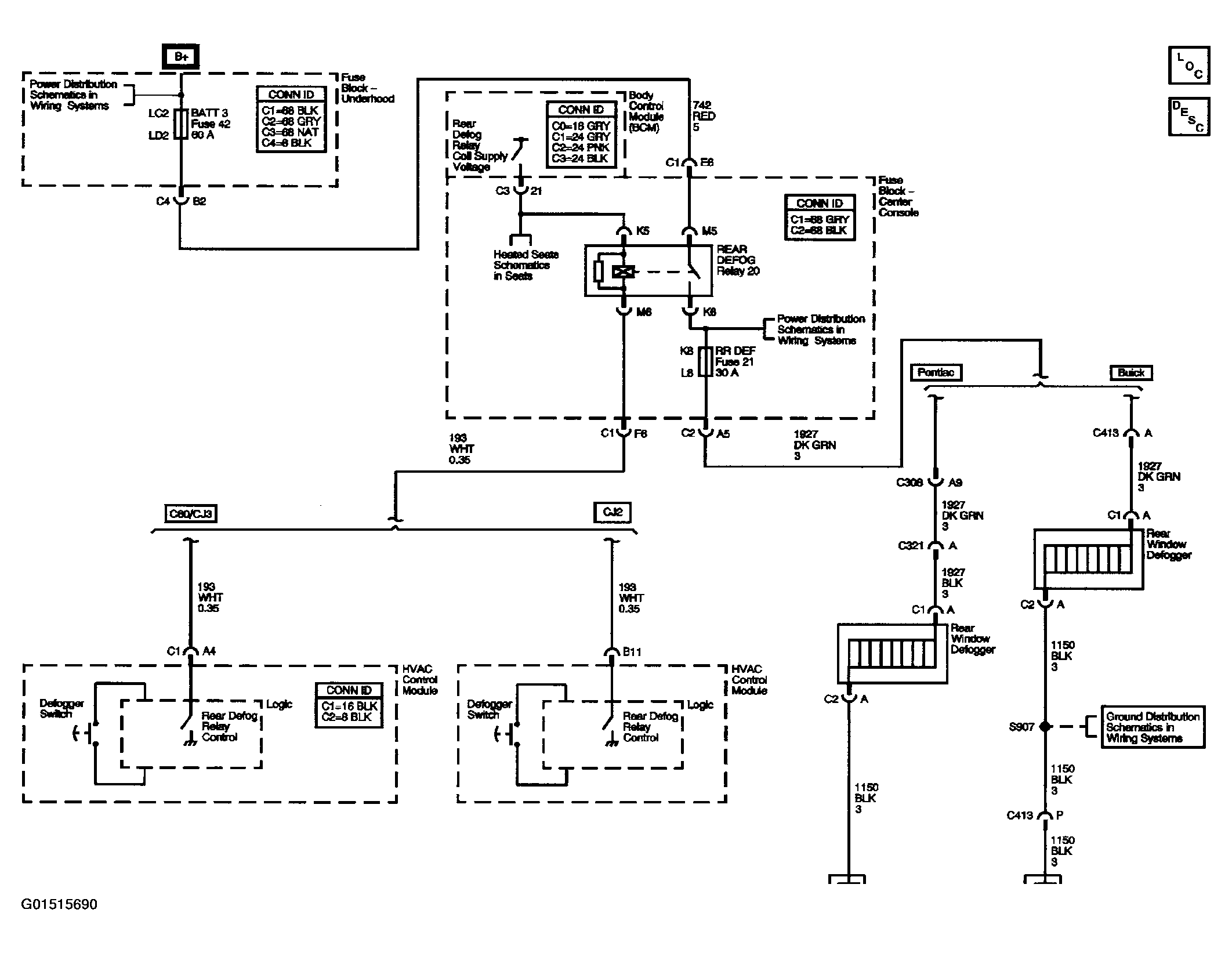

Fig 1: Defogger Schematics Diagram
Courtesy of GENERAL MOTORS CORP.

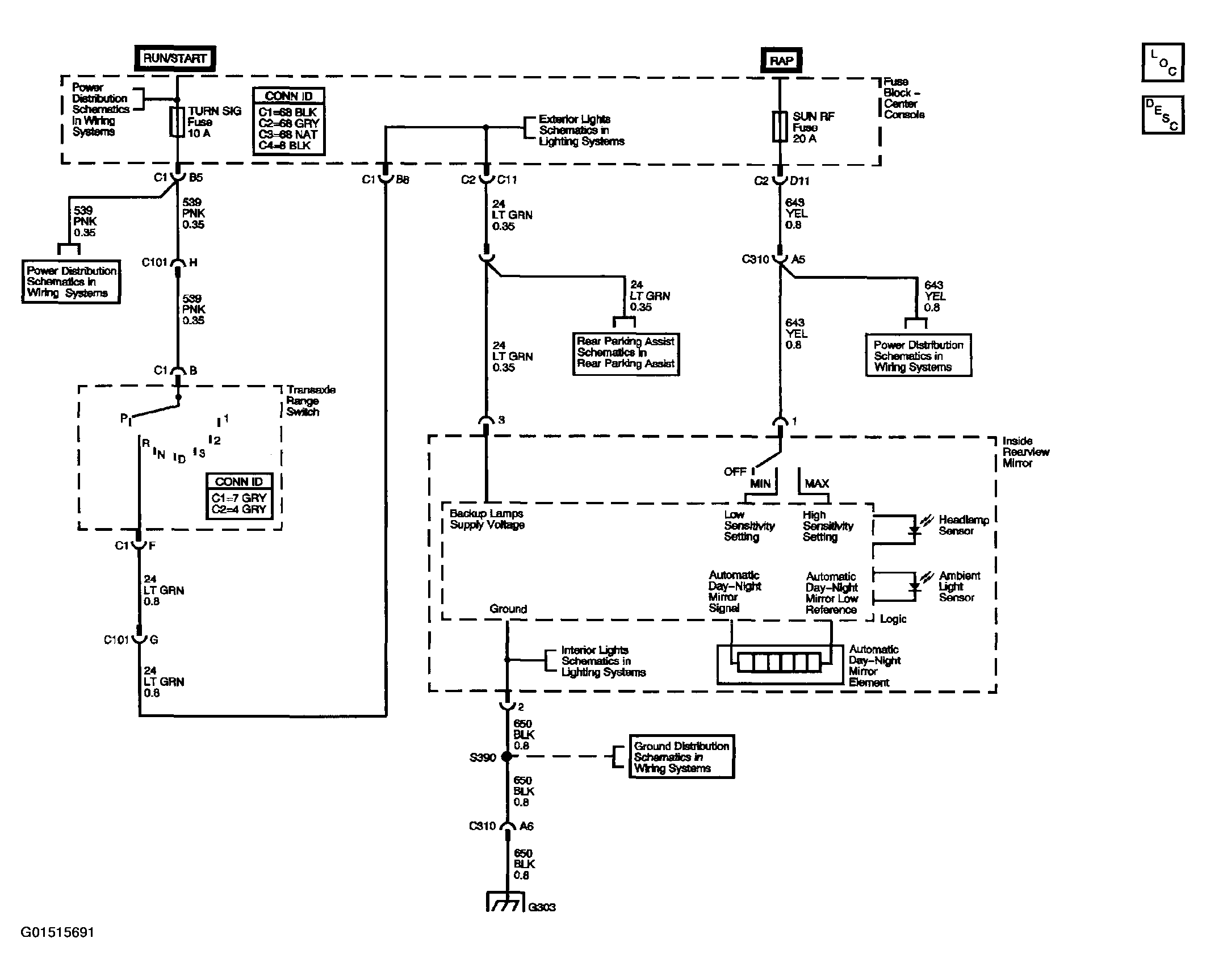

Fig 2: Inside Rearview Mirror Schematics Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
