Removal Procedure

  1. Remove the wire harness cover from the lighted rearview mirror, if equipped.
  2. Use a small flat-bladed tool in order to remove the rearview mirror from the rearview mirror support.
  3. Disconnect the electrical connector from the lighted rearview mirror, if equipped.

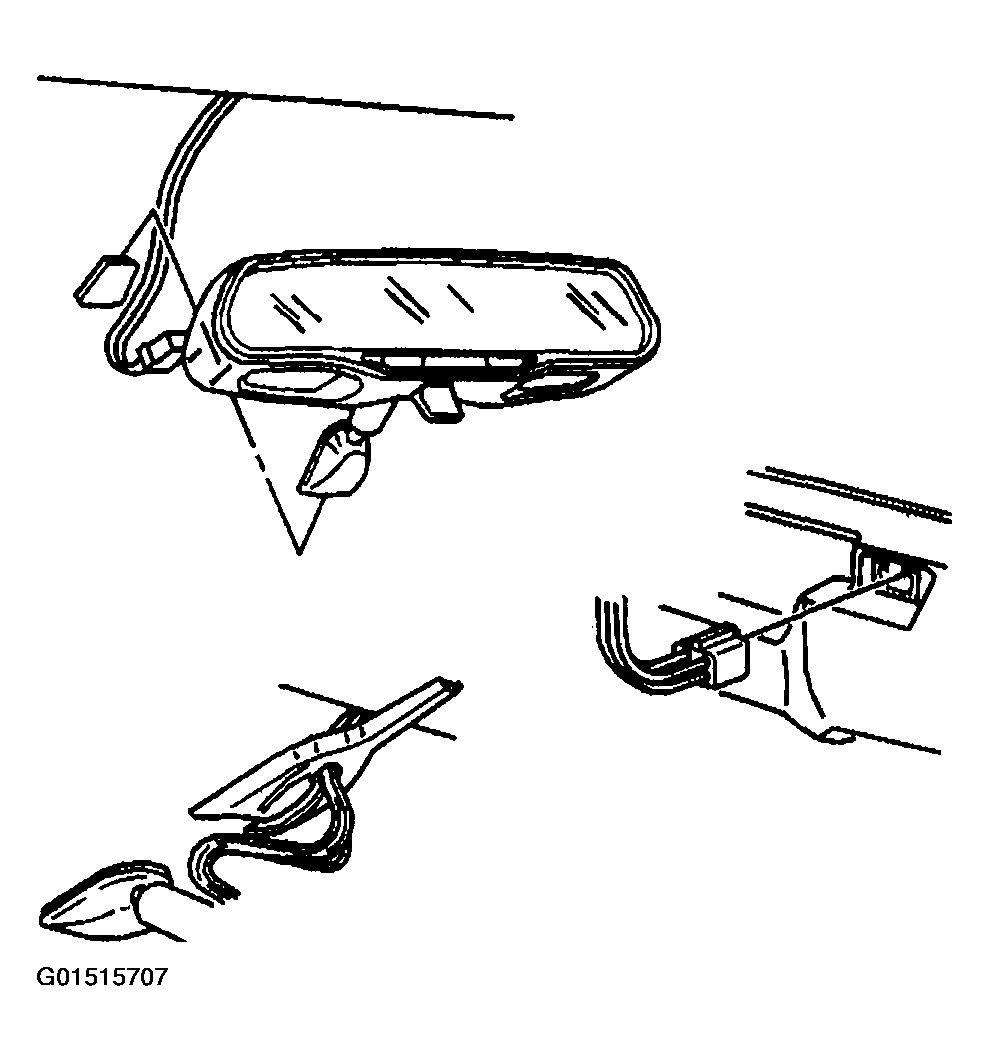

    Fig 1: Removing Rearview Mirror
    G01515707Courtesy of GENERAL MOTORS CORP.
