Removal Procedure

  1. Remove the instrument accessory panel trim plate. Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY (AZTEK) , TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (AZTEK) or TRIM PLATE BEZEL REPLACEMENT -- INSTRUMENT PANEL (I/P) CLUSTER (RENDEZVOUS) .
  2. Remove the radio screws.

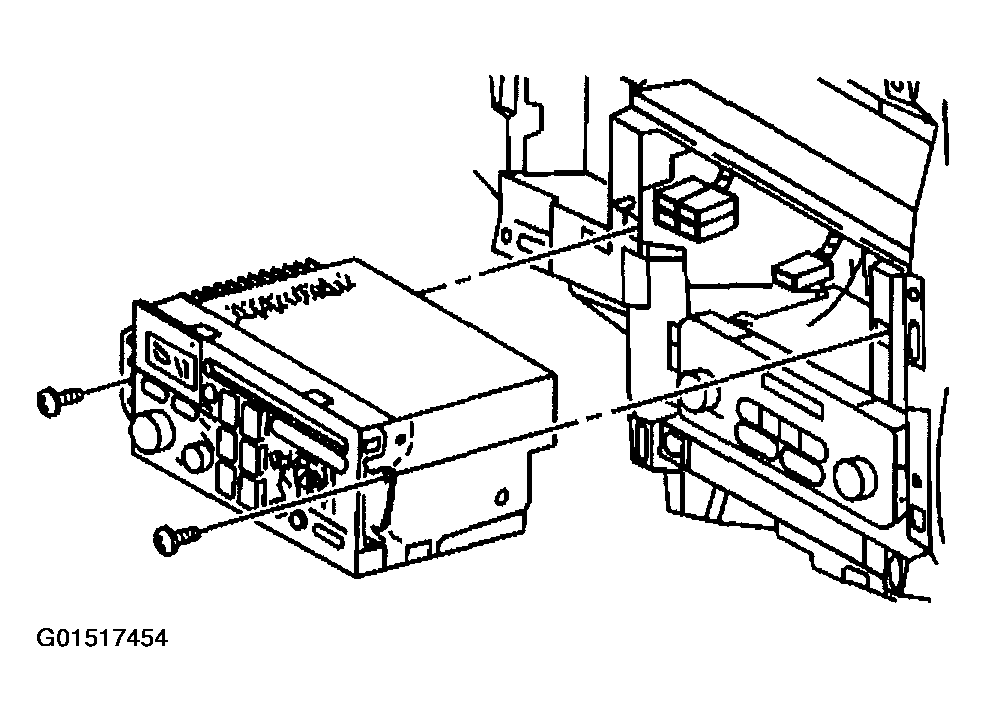

    Fig 1: Removing Radio Screws
    G01517454Courtesy of GENERAL MOTORS CORP.
  3. Pull the radio away from the instrument panel (I/P).
  4. Disconnect the electrical/audio electrical connectors from the radio.
  5. Disconnect the coaxial cable connector from the radio.
  6. Remove the radio.

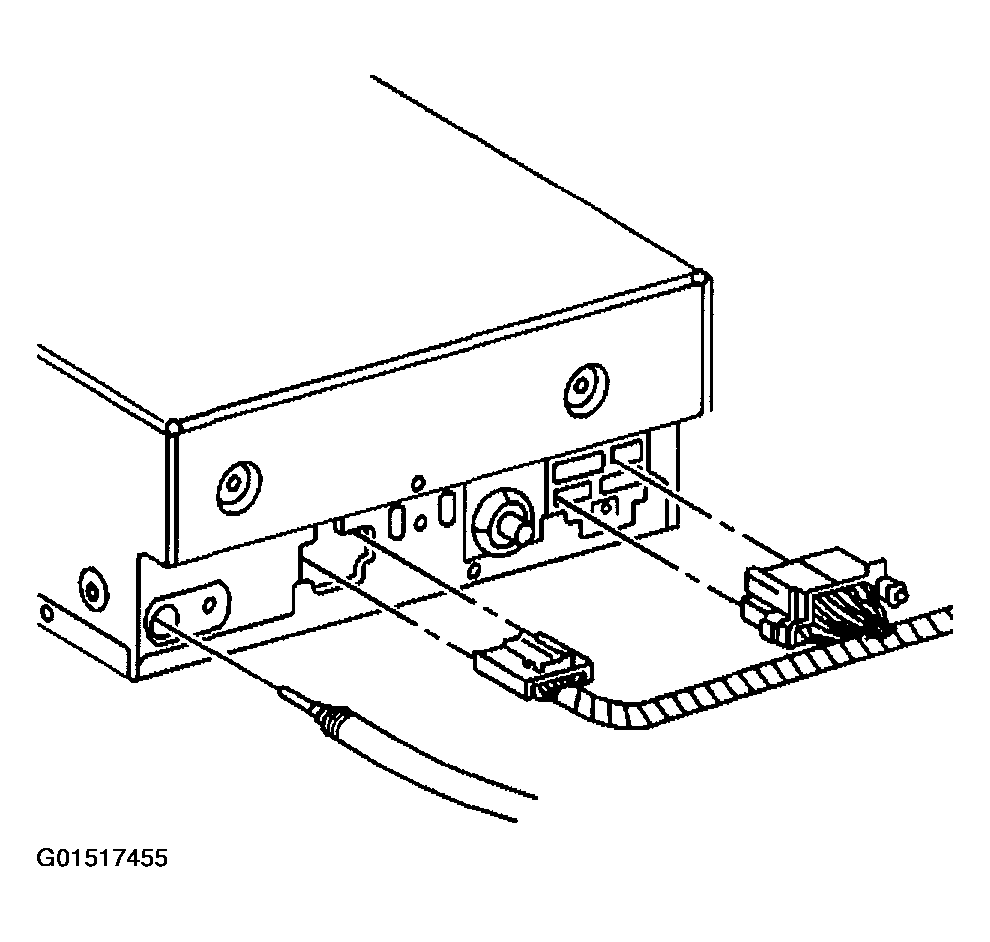

    Fig 2: Disconnecting Coaxial Cable Connector From Radio
    G01517455Courtesy of GENERAL MOTORS CORP.
