Removal Procedure

Important:  Components of the DVD player cannot be serviced separately. Replace as an assembly.

1. Move the screen to the open position.
2. Open the rear screw cover using a flat bladed tool.

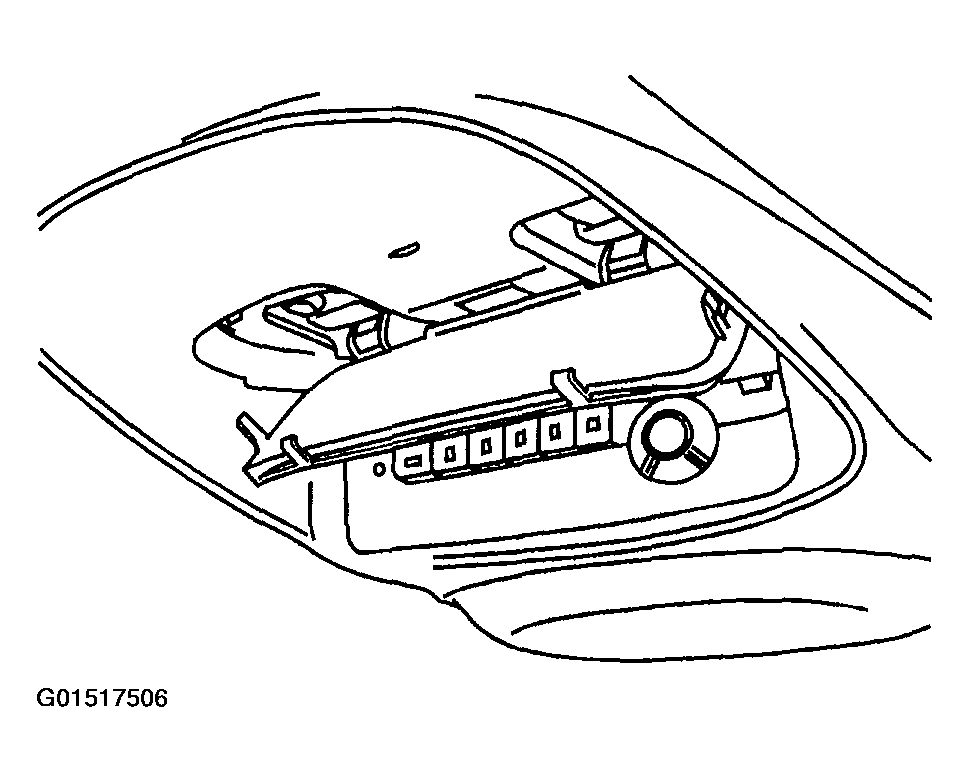

   Fig 1: Opening Rear Screw Cover

   Courtesy of GENERAL MOTORS CORP.
3. Remove the 4 retaining bolts.
4. With 1 hand holding the DVD player assembly, pull down the retainer from the bracket.

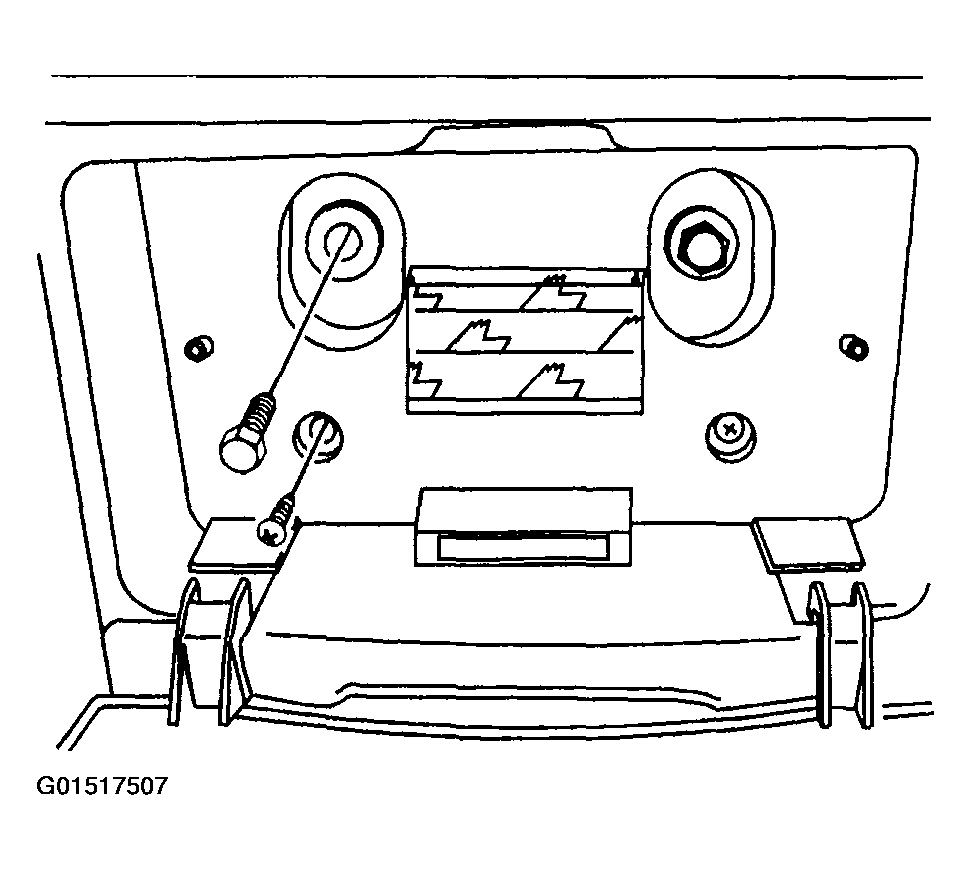

   Fig 2: Removing 4 Retaining Bolts

   Courtesy of GENERAL MOTORS CORP.
5. Allow the DVD player assembly to come to rest on the hook.

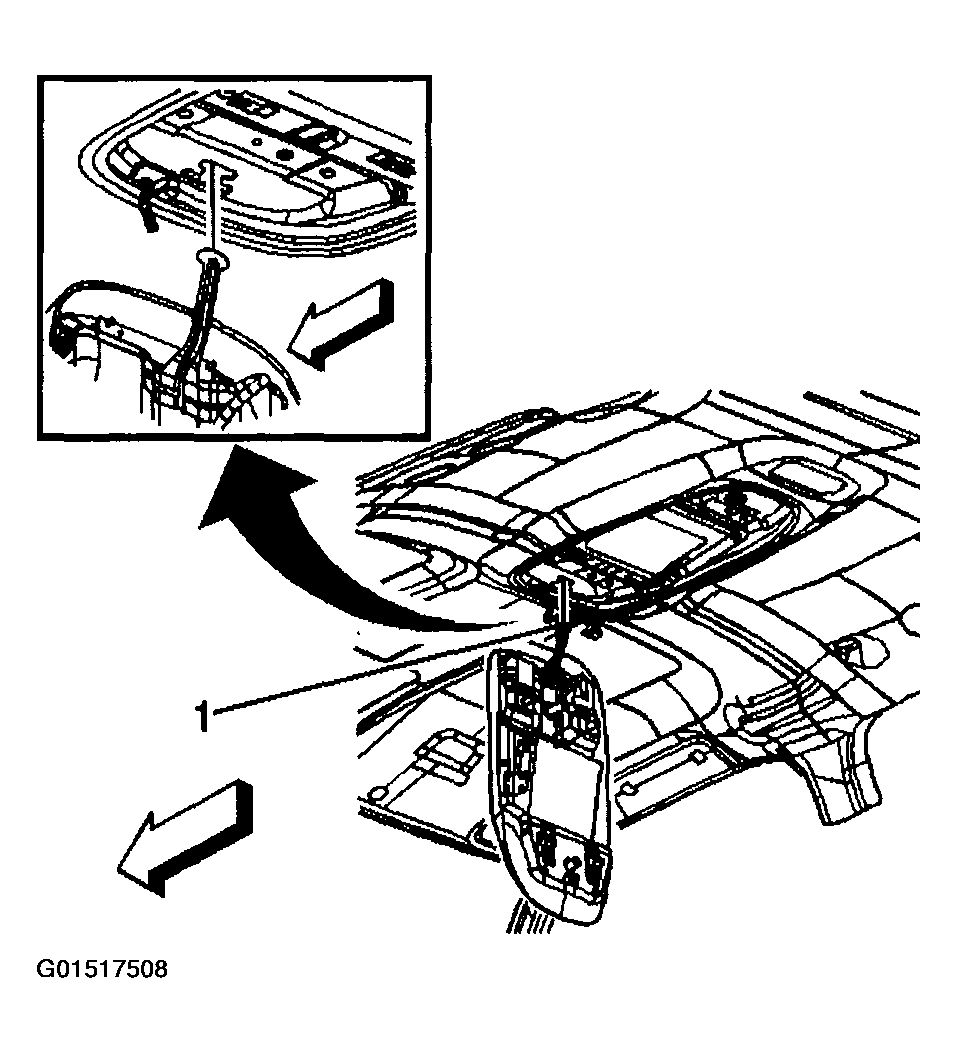

   Fig 3: Removing DVD Player Assembly

   Courtesy of GENERAL MOTORS CORP.

   Important:  Observe the routing of the wiring harness (2).

6. Disconnect the wire connector (1).
7. Slightly lift up the DVD player assembly so that the hook can be removed from its resting position.
8. Remove the DVD player from the vehicle.

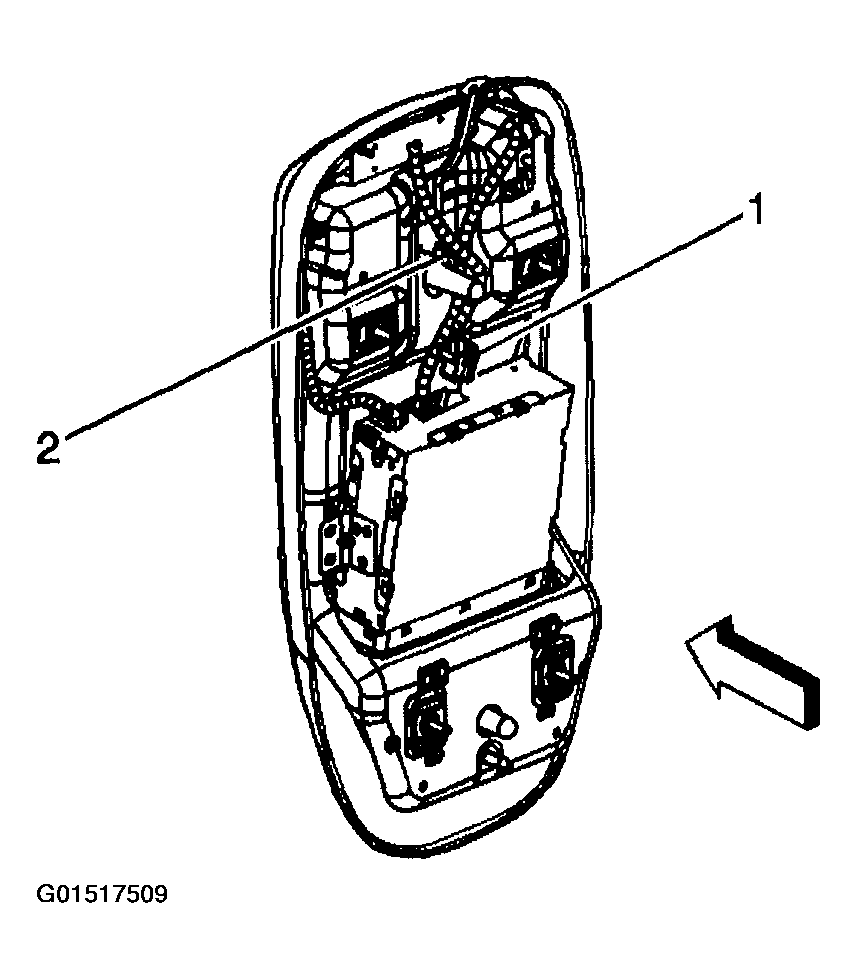

   Fig 4: Disconnecting Wire Connector

   Courtesy of GENERAL MOTORS CORP.
