Installation Procedure

  1. Connect the electrical connector.
  2. Align the second seat control to the overhead console.

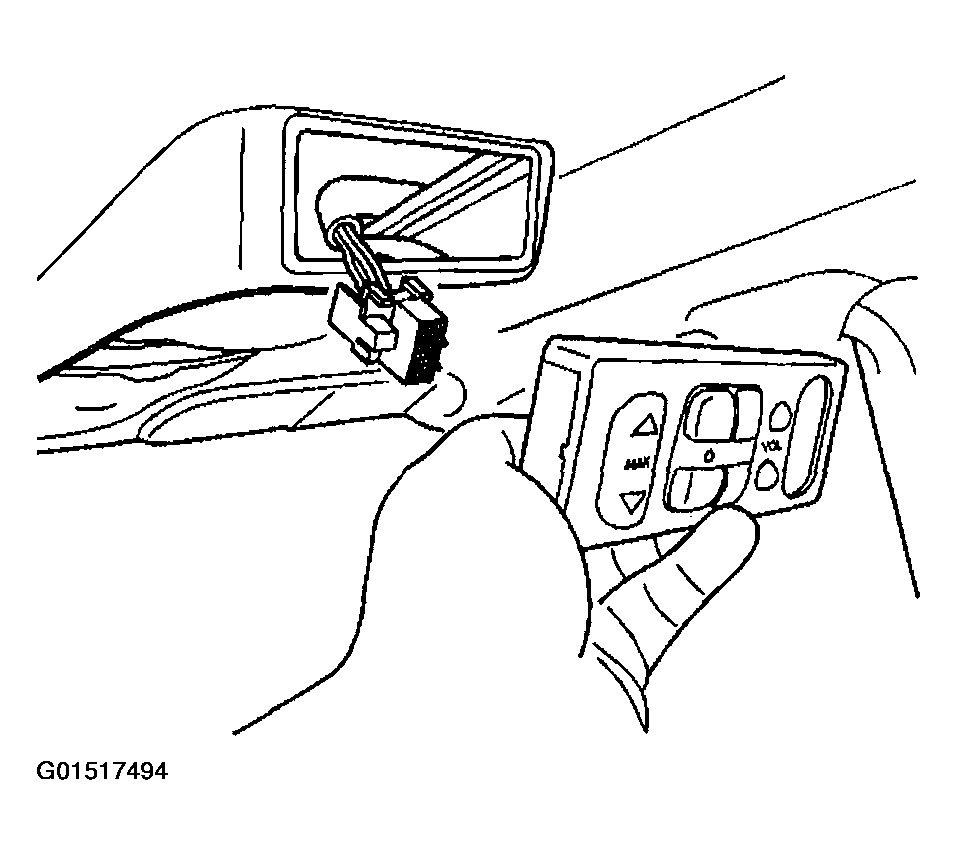

    Fig 1: Connecting Electrical Connector
    G01517494Courtesy of GENERAL MOTORS CORP.
  3. Gently install the second seat control into the overhead console by pushing forward and inward.

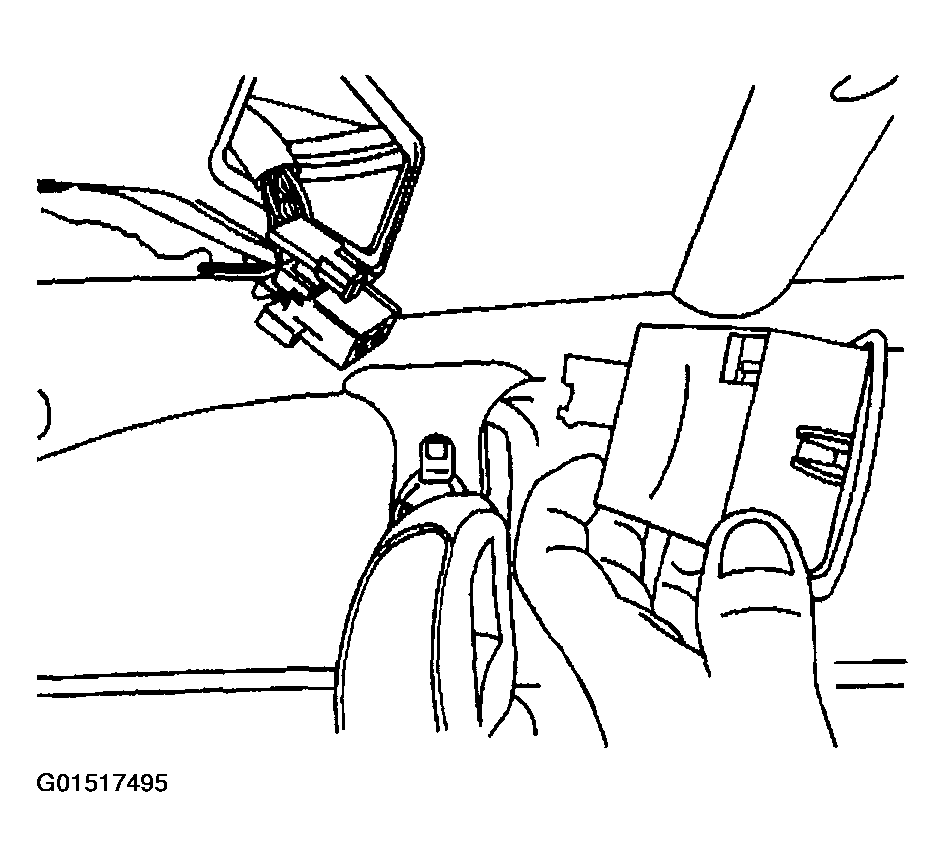

    Fig 2: Installing Second Seat Control Into Overhead Console
    G01517495Courtesy of GENERAL MOTORS CORP.
